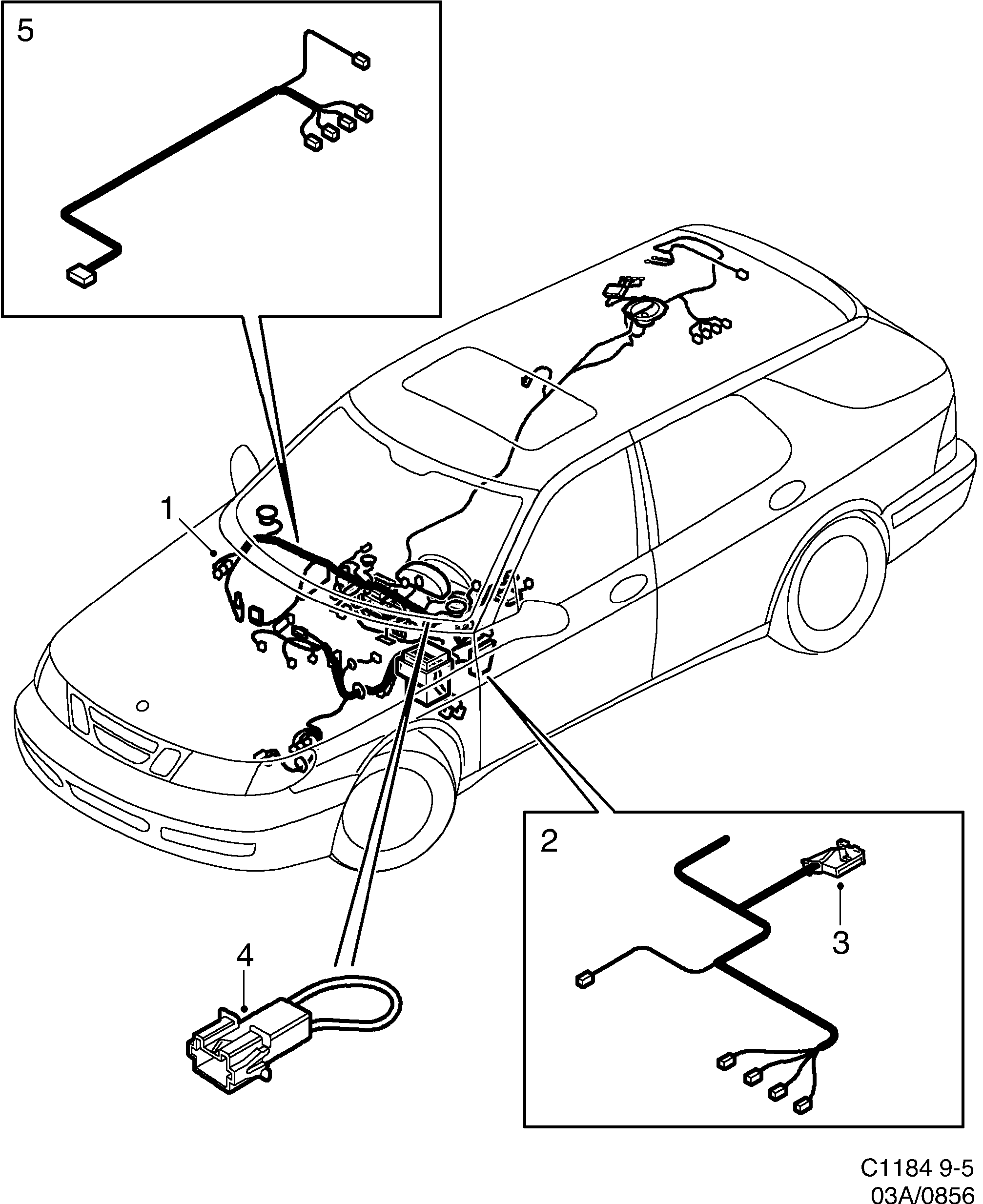

856: Electrical, general - Wiring and fuses - Instrument panel
(2001 | 5D) | For 9-5 (9600) (2001)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 52 42 573 Cable harness LHD • Audio system "Popular", Clarion. | 1 | |
| 1 | 52 42 656 Cable harness LHD • Audio system "Popular", Clarion. | 1 | |
| 1 | 52 42 565 Cable harness LHD • Audio system "Premium", Pioneer.... | 1 | |
| 1 | 52 42 649 Cable harness LHD • Audio system "Premium", Pioneer.... | 1 | |
| 1 | 52 42 607 Cable harness LHD • Audio system "Premium", Pioneer.... | 1 | |
| 1 | 52 42 417 Cable harness RHD • Audio system "Popular", Clarion. | 1 | |
| 1 | 52 42 458 Cable harness RHD • Audio system "Popular", Clarion. | 1 | |
| 1 | 52 42 409 Cable harness RHD • Audio system "Premium", Pioneer.... | 1 | |
| 1 | 52 42 441 Cable harness RHD • Audio system "Premium", Pioneer.... | 1 | |
| 2 | 54 74 390 Cable harness LHD • Between electronic unit airbag... | 1 | |
| 2 | 54 74 408 Cable harness RHD • Between electronic unit airbag... | 1 | |
| 3 | 47 39 462 Cover | 1 | |
| 4 | 51 07 305 30 581 187 Cable harness LHD • For cars without ''Clutch... | 1 | |
Cable harnessWiring and fuses Rear. airbag | |||
Airbag moduleDashboard | |||
| 5 | 53 54 667 Cable harness LHD • ONSTAR | 1 |
