Question 1

Where to find the exploded diagram for Cooling system on my Saab 9-5 (9600) 2002?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Cooling system on Saab 9-5 (9600) 2002. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Cooling system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Cooling system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (9600) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Cooling system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Cooling system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

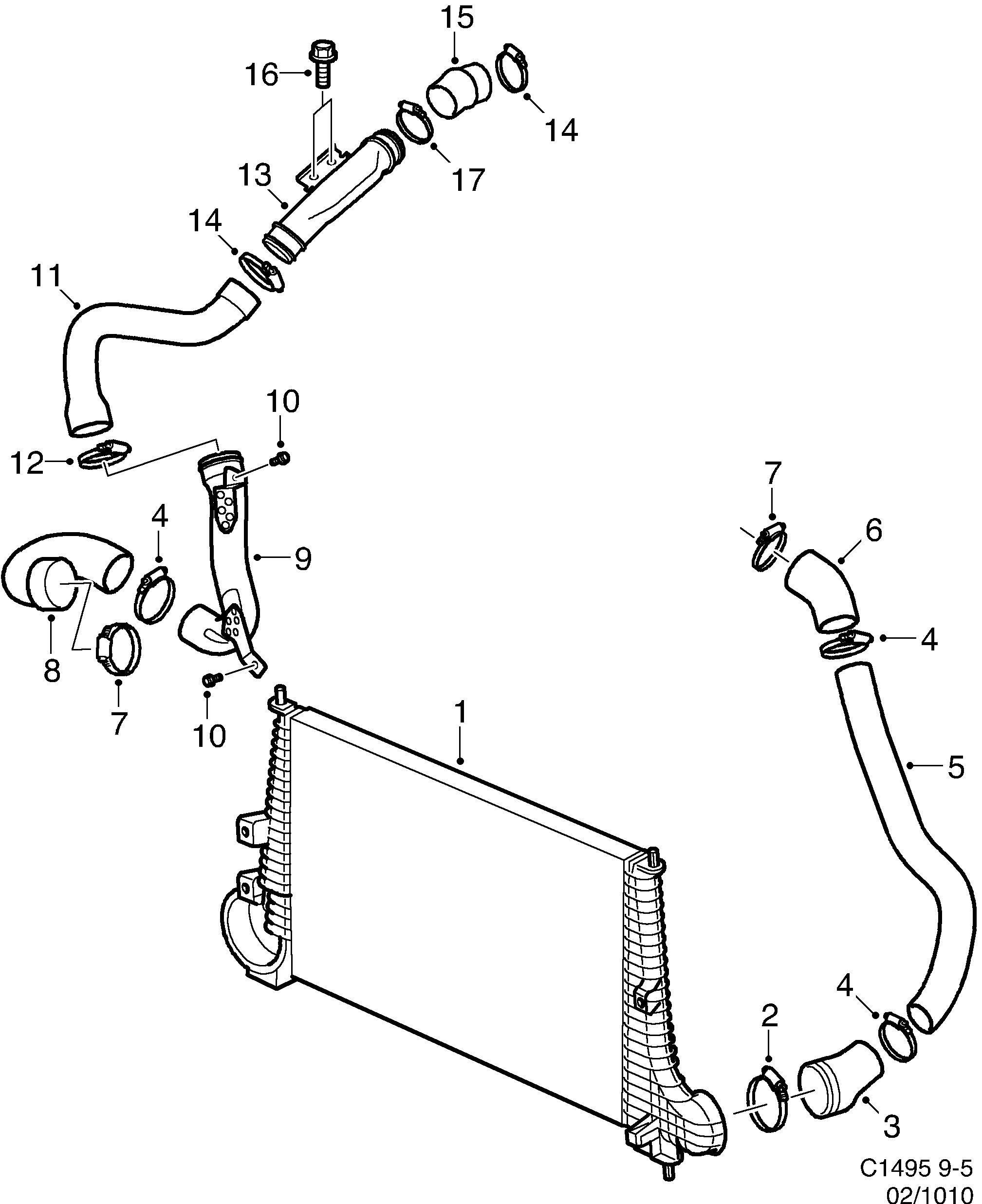

Pos.	Part No.	Description	Usage	Qty
1	47 26 568 Charge air cooler D223L	Charge air cooler	D223L	1
2	79 70 155 92 153 080 Hose clamp D223L	Hose clamp	D223L	1
3	54 60 324 Charge air hose D223L	Charge air hose	D223L	1
4	79 70 130 92 153 077 Hose clamp D223L	Hose clamp	D223L	3
5	54 60 316 Charge air pipe 2002-2002 • D223L	Charge air pipe	2002-2002 D223L	1
6	54 60 308 Hose D223L	Hose	D223L	1
7	79 70 148 92 153 079 Hose clamp D223L	Hose clamp	D223L	2
8	53 27 986 Hose D223L	Hose	D223L	1
9	53 27 978 Tube D223L	Tube	D223L	1
10	79 78 109 11 900 354 Screw D223L	Screw	D223L	2
11	53 27 960 12 775 121 Air hose 2002-2003 • D223L	Air hose	2002-2003 D223L	1
11	12 775 121 Air duct D223L	Air duct	D223L	1
12	79 70 122 Hose clamp D223L	Hose clamp	D223L	1
13	53 28 125 Tube D223L	Tube	D223L	1
14	79 70 122 Hose clamp D223L	Hose clamp	D223L	2
15	53 28 133 Air hose D223L	Air hose	D223L	1
16	79 78 091 11 900 353 Screw D223L	Screw	D223L	2
17	51 25 935 Hose clamp D223L	Hose clamp	D223L	1

Pos.	Part No.	Description	Usage	Qty
1	47 26 568 Charge air cooler D223L	Charge air cooler	D223L	1
2	79 70 155 92 153 080 Hose clamp D223L	Hose clamp	D223L	1
3	54 60 324 Charge air hose D223L	Charge air hose	D223L	1
4	79 70 130 92 153 077 Hose clamp D223L	Hose clamp	D223L	3
5	54 60 316 Charge air pipe 2002-2002 • D223L	Charge air pipe	2002-2002 D223L	1
6	54 60 308 Hose D223L	Hose	D223L	1
7	79 70 148 92 153 079 Hose clamp D223L	Hose clamp	D223L	2
8	53 27 986 Hose D223L	Hose	D223L	1
9	53 27 978 Tube D223L	Tube	D223L	1
10	79 78 109 11 900 354 Screw D223L	Screw	D223L	2
11	53 27 960 12 775 121 Air hose 2002-2003 • D223L	Air hose	2002-2003 D223L	1
11	12 775 121 Air duct D223L	Air duct	D223L	1
12	79 70 122 Hose clamp D223L	Hose clamp	D223L	1
13	53 28 125 Tube D223L	Tube	D223L	1
14	79 70 122 Hose clamp D223L	Hose clamp	D223L	2
15	53 28 133 Air hose D223L	Air hose	D223L	1
16	79 78 091 11 900 353 Screw D223L	Screw	D223L	2
17	51 25 935 Hose clamp D223L	Hose clamp	D223L	1

1010: Engine - Cooling system - Charge air cooler
