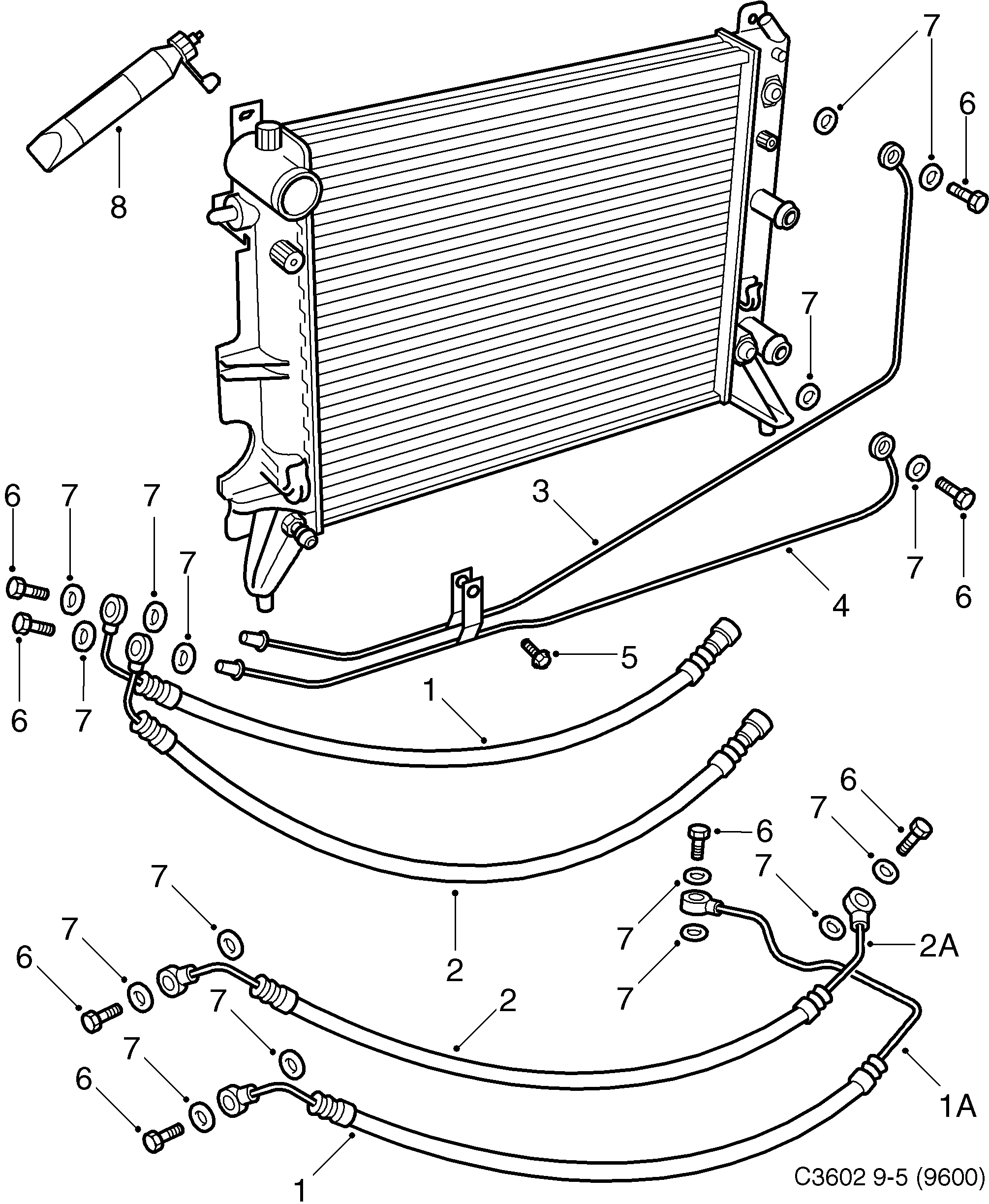

1090: Engine - Cooling system - Oil cooler - Automatic transmission
(1998 - 2010) | For 9-5 (9600) (2002)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 51 94 014 12 775 717 Hydraulic hose 2002-2007 • B205, B235, D223L, Z19DTH | 1 | |
| 1 | 51 93 412 54 67 675 Hydraulic hose 2002-2005 • B308E, D308L, D223L | 1 | |
| 2 | 51 93 974 12 775 718 Hydraulic hose 2002-2007 • B205, B235, D223L, Z19DTH | 1 | |
| 2 | 51 93 420 54 67 691 Hydraulic hose 2002-2005 • B308E, D308L, D223L | 1 | |
| 3 | 45 76 906 12 775 716 Hydraulic fluid pipe 1998-2007 • B205, B235, D223L, Z19DTH | 1 | |
| 4 | 45 76 914 12 775 715 Hydraulic fluid pipe 1998-2007 • B205, B235, D223L, Z19DTH | 1 | |
| 5 | 92 153 149 Screw 1998-2003 • B205, B235, D223L | 1 | |
| 6 | 43 74 211 12 773 569 Banjo bolt 1998-2003 | 4 | |
| 7 | 12 771 933 Sealing ring | 8 | |
| 8 | 90 540 018 Wetting agent 100 ML | Connector... | X |
