Pos.	Part No.	Description	Usage	Qty
1	59 50 258 Cylinder block D308L	Cylinder block	D308L	1
2	Cylinder block D308L • Not as separate spare...	Cylinder block	D308L Not as separate spare...
3	Main bearing cap D308L • Not as separate spare...	Main bearing cap	D308L Not as separate spare...
4	59 50 266 Bearing carrier D308L	Bearing carrier	D308L	1
5	59 50 274 Screw D308L	Screw	D308L	6
6	59 56 511 Screw D308L • Inner	Screw	D308L Inner	8
6A	59 56 529 Screw D308L • Outer	Screw	D308L Outer	8
7	59 56 644 Guide D308L	Guide	D308L	8
8	59 56 305 Screw D308L	Screw	D308L	8
9	59 56 073 Sealing washer D308L	Sealing washer	D308L	1
10	59 56 909 Sealing washer D308L	Sealing washer	D308L	3
11	59 56 297 Sealing washer D308L	Sealing washer	D308L	1
13	59 56 503 Plug D308L	Plug	D308L	1
14	59 50 332 Guide sleeve 2002-2005 • D308L	Guide sleeve	2002-2005 D308L	2
15	59 50 324 Guide D308L	Guide	D308L	4
16	59 50 316 Screw plug D308L	Screw plug	D308L	1
17	59 50 522 Guide sleeve D308L	Guide sleeve	D308L	2
18	59 50 340 Guide sleeve D308L	Guide sleeve	D308L	2
19	59 50 340 Guide sleeve D308L	Guide sleeve	D308L	2
20	59 50 290 Piston cooling jet D308L	Piston cooling jet	D308L	3
21	59 50 282 Banjo screw D308L	Banjo screw	D308L	3
22	59 50 308 Cover D308L	Cover	D308L	1
23	59 50 373 Screw D308L	Screw	D308L	8
24	59 50 399 Nut D308L	Nut	D308L	2
25	59 50 381 94 003 223 Stud D308L	Stud	D308L	2
26	59 50 365 Plate D308L	Plate	D308L	1
27	59 50 415 Seal D308L	Seal	D308L	1
28	59 50 332 Guide sleeve 2002-2005 • D308L	Guide sleeve	2002-2005 D308L	2
29	59 50 423 Screw D308L	Screw	D308L	6
30	59 54 961 Bracket D308L • Pump, hydraulic oil	Bracket	D308L Pump, hydraulic oil	1
31	53 42 506 Screw D308L	Screw	D308L	2

Pos.	Part No.	Description	Usage	Qty
1	59 50 258 Cylinder block D308L	Cylinder block	D308L	1
2	Cylinder block D308L • Not as separate spare...	Cylinder block	D308L Not as separate spare...
3	Main bearing cap D308L • Not as separate spare...	Main bearing cap	D308L Not as separate spare...
4	59 50 266 Bearing carrier D308L	Bearing carrier	D308L	1
5	59 50 274 Screw D308L	Screw	D308L	6
6	59 56 511 Screw D308L • Inner	Screw	D308L Inner	8
6A	59 56 529 Screw D308L • Outer	Screw	D308L Outer	8
7	59 56 644 Guide D308L	Guide	D308L	8
8	59 56 305 Screw D308L	Screw	D308L	8
9	59 56 073 Sealing washer D308L	Sealing washer	D308L	1
10	59 56 909 Sealing washer D308L	Sealing washer	D308L	3
11	59 56 297 Sealing washer D308L	Sealing washer	D308L	1
13	59 56 503 Plug D308L	Plug	D308L	1
14	59 50 332 Guide sleeve 2002-2005 • D308L	Guide sleeve	2002-2005 D308L	2
15	59 50 324 Guide D308L	Guide	D308L	4
16	59 50 316 Screw plug D308L	Screw plug	D308L	1
17	59 50 522 Guide sleeve D308L	Guide sleeve	D308L	2
18	59 50 340 Guide sleeve D308L	Guide sleeve	D308L	2
19	59 50 340 Guide sleeve D308L	Guide sleeve	D308L	2
20	59 50 290 Piston cooling jet D308L	Piston cooling jet	D308L	3
21	59 50 282 Banjo screw D308L	Banjo screw	D308L	3
22	59 50 308 Cover D308L	Cover	D308L	1
23	59 50 373 Screw D308L	Screw	D308L	8
24	59 50 399 Nut D308L	Nut	D308L	2
25	59 50 381 94 003 223 Stud D308L	Stud	D308L	2
26	59 50 365 Plate D308L	Plate	D308L	1
27	59 50 415 Seal D308L	Seal	D308L	1
28	59 50 332 Guide sleeve 2002-2005 • D308L	Guide sleeve	2002-2005 D308L	2
29	59 50 423 Screw D308L	Screw	D308L	6
30	59 54 961 Bracket D308L • Pump, hydraulic oil	Bracket	D308L Pump, hydraulic oil	1
31	53 42 506 Screw D308L	Screw	D308L	2

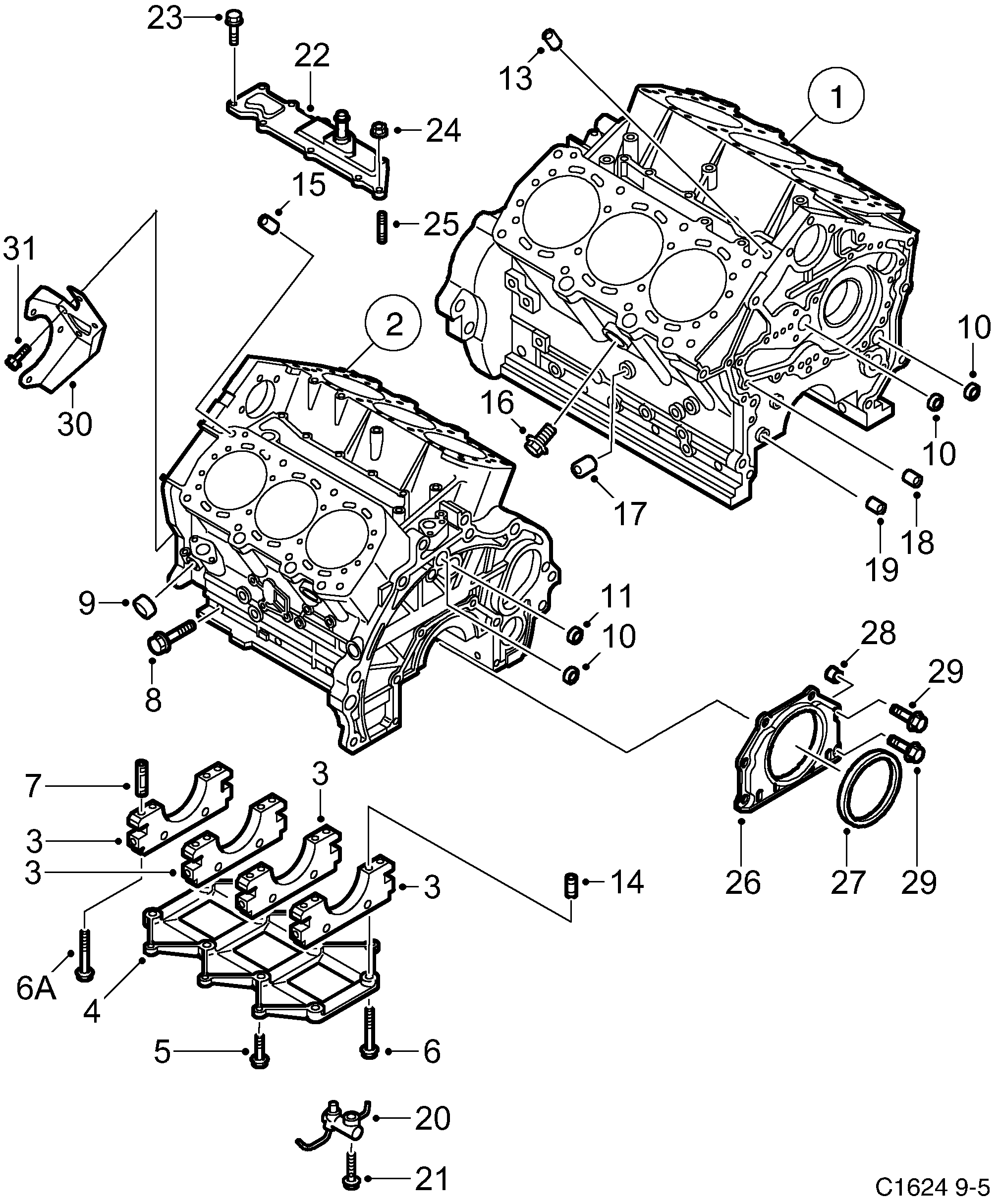

375: Engine - Short block - Cylinder block
