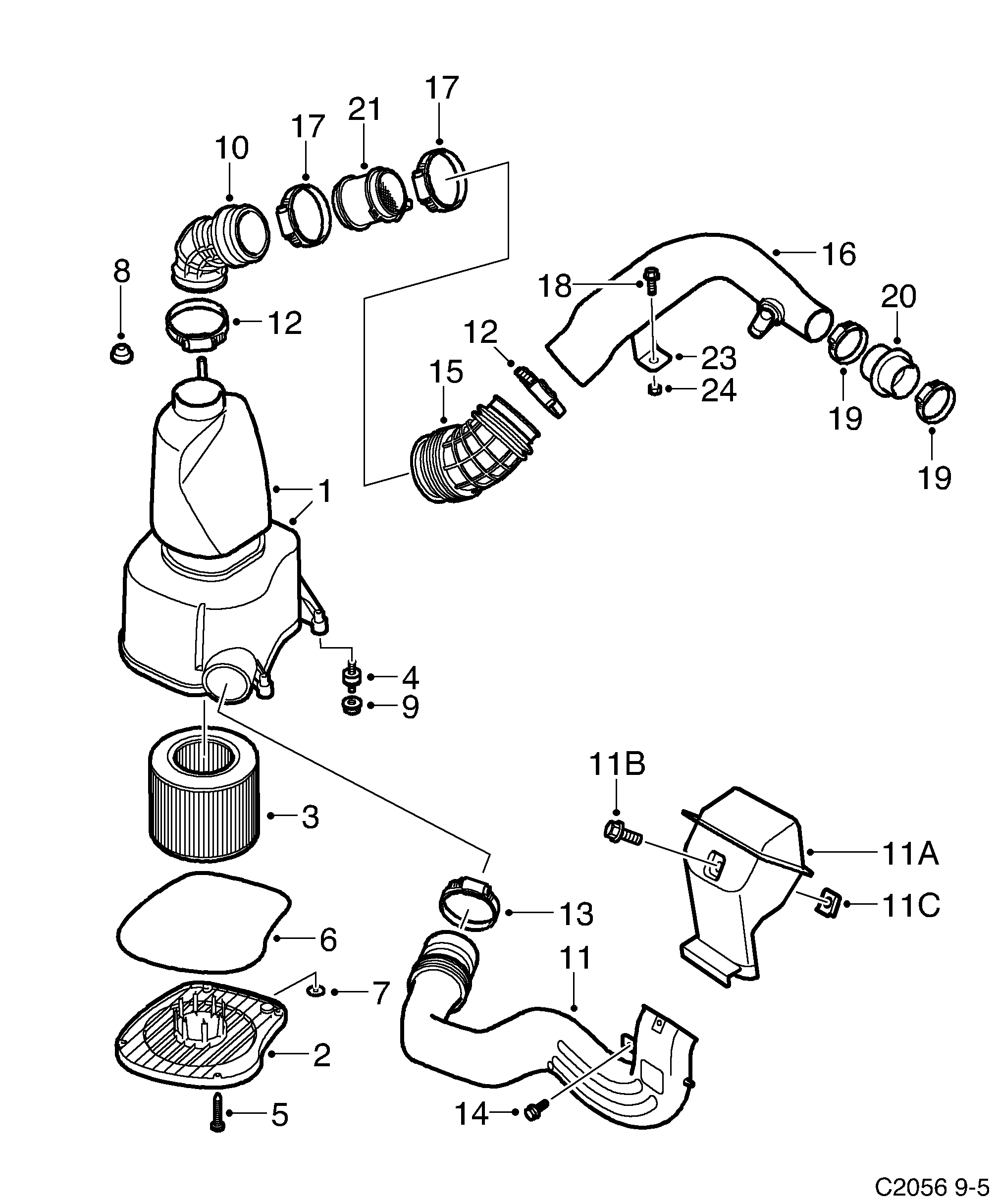

Pos.	Part No.	Description	Usage	Qty
1	45 72 509 Air cleaner housing D223L	Air cleaner housing	D223L	1
2	45 72 517 Cover D223L	Cover	D223L	1
3	51 73 166 55 560 911 Air filter D223L	Air filter	D223L	1
4	46 71 863 Rubber spacer D223L	Rubber spacer	D223L	2
5	46 71 871 Screw D223L	Screw	D223L	4
6	48 96 569 O-ring D223L	O-ring	D223L	1
7	48 96 577 Diaphragm D223L	Diaphragm	D223L	1
8	75 12 593 Rubber bushing D223L	Rubber bushing	D223L	1
9	43 45 138 11 089 471 Hexagon nut D223L	Hexagon nut	D223L	2
10	51 91 218 Pipe -2003 • D223L	Pipe	-2003 D223L	1
11	46 70 469 12 846 127 Air inlet 2002-2002 • D223L	Air inlet	2002-2002 D223L	1
12	79 70 155 92 153 080 Hose clamp D223L	Hose clamp	D223L	2
13	79 70 148 92 153 079 Hose clamp D223L	Hose clamp	D223L	1
14	79 83 000 92 153 149 Hexagon screw D223L	Hexagon screw	D223L	3
15	53 25 741 Hose -2003 • D223L	Hose	-2003 D223L	1
16	53 28 091 Pipe D223L	Pipe	D223L	1
17	79 70 163 92 150 224 Hose clamp D223L	Hose clamp	D223L	2
18	79 78 190 55 566 034 Screw D223L	Screw	D223L	1
19	79 70 130 92 153 077 Hose clamp D223L	Hose clamp	D223L	2
20	54 61 876 Hose D223L	Hose	D223L	1
21	53 40 005 Mass air flow sensor -2003 • D223L	Mass air flow sensor	-2003 D223L	1
23	54 61 777 Bracket D223L	Bracket	D223L	1
24	79 71 658 11 900 428 Nut D223L	Nut	D223L	1

Pos.	Part No.	Description	Usage	Qty
1	45 72 509 Air cleaner housing D223L	Air cleaner housing	D223L	1
2	45 72 517 Cover D223L	Cover	D223L	1
3	51 73 166 55 560 911 Air filter D223L	Air filter	D223L	1
4	46 71 863 Rubber spacer D223L	Rubber spacer	D223L	2
5	46 71 871 Screw D223L	Screw	D223L	4
6	48 96 569 O-ring D223L	O-ring	D223L	1
7	48 96 577 Diaphragm D223L	Diaphragm	D223L	1
8	75 12 593 Rubber bushing D223L	Rubber bushing	D223L	1
9	43 45 138 11 089 471 Hexagon nut D223L	Hexagon nut	D223L	2
10	51 91 218 Pipe -2003 • D223L	Pipe	-2003 D223L	1
11	46 70 469 12 846 127 Air inlet 2002-2002 • D223L	Air inlet	2002-2002 D223L	1
12	79 70 155 92 153 080 Hose clamp D223L	Hose clamp	D223L	2
13	79 70 148 92 153 079 Hose clamp D223L	Hose clamp	D223L	1
14	79 83 000 92 153 149 Hexagon screw D223L	Hexagon screw	D223L	3
15	53 25 741 Hose -2003 • D223L	Hose	-2003 D223L	1
16	53 28 091 Pipe D223L	Pipe	D223L	1
17	79 70 163 92 150 224 Hose clamp D223L	Hose clamp	D223L	2
18	79 78 190 55 566 034 Screw D223L	Screw	D223L	1
19	79 70 130 92 153 077 Hose clamp D223L	Hose clamp	D223L	2
20	54 61 876 Hose D223L	Hose	D223L	1
21	53 40 005 Mass air flow sensor -2003 • D223L	Mass air flow sensor	-2003 D223L	1
23	54 61 777 Bracket D223L	Bracket	D223L	1
24	79 71 658 11 900 428 Nut D223L	Nut	D223L	1
