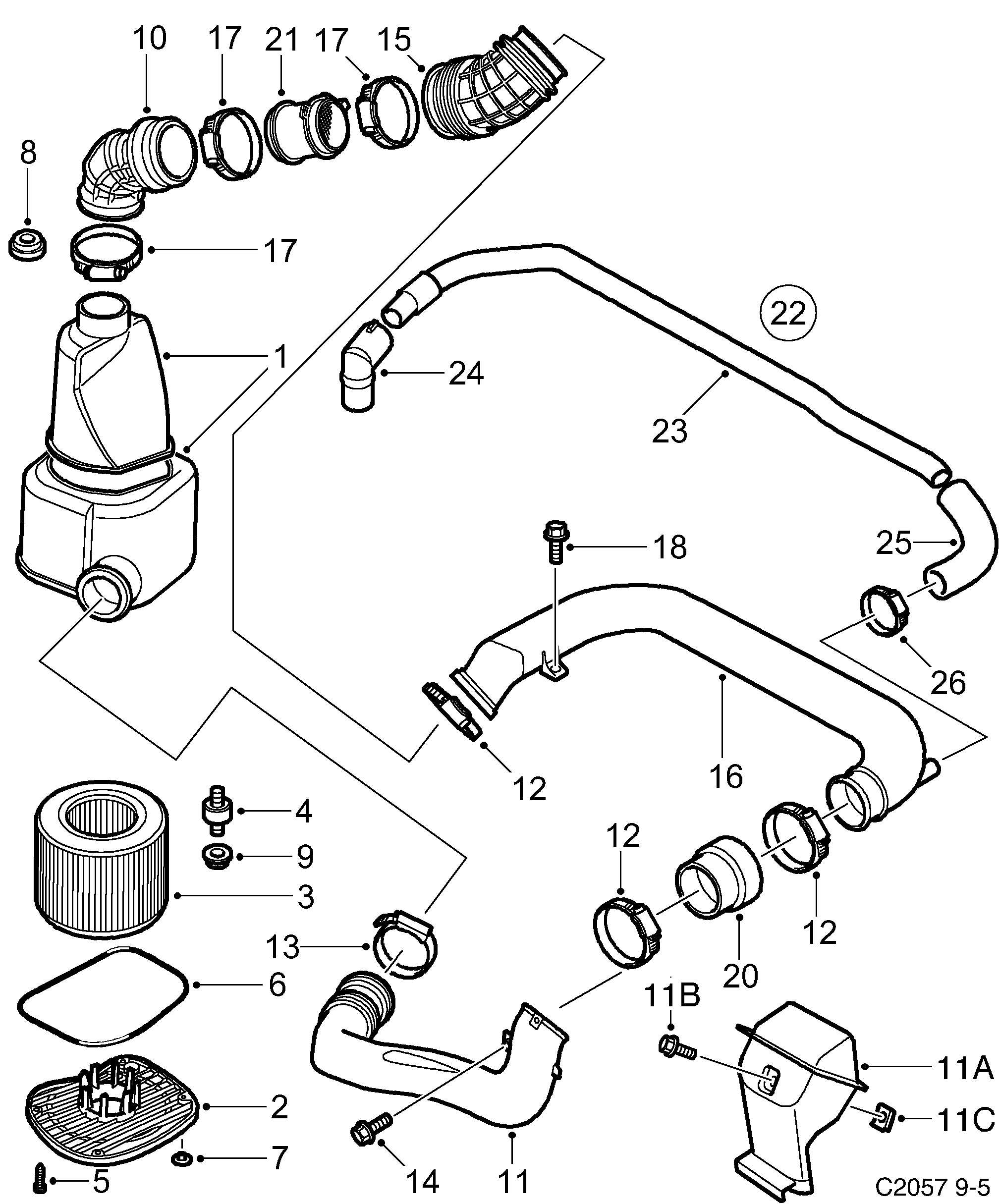

530: Engine - Fuel system - Air cleaner - Without water separator
(2002 - 2003 | D308L) | For 9-5 (9600) (2002)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 45 72 509 Air cleaner housing D308L | 1 | |
| 2 | 45 72 517 Cover D308L | 1 | |
| 3 | 54 61 959 Air filter D308L | 1 | |
| 4 | 46 71 863 Rubber spacer D308L | 2 | |
| 5 | 46 71 871 Screw D308L | 4 | |
| 6 | 48 96 569 O-ring D308L | 1 | |
| 7 | 48 96 577 Diaphragm D308L | 1 | |
| 8 | 75 12 593 Rubber bushing D308L | 1 | |
| 9 | 43 45 138 11 089 471 Hexagon nut D308L | 2 | |
| 10 | 51 91 218 Pipe -2003 • D308L | 1 | |
| 11 | 53 27 424 12 846 127 Air inlet 2002-2002 • D308L | 1 | |
| 12 | 51 25 877 Hose clamp D308L | 3 | |
| 13 | 79 70 148 92 153 079 Hose clamp D308L | 1 | |
| 14 | 79 83 000 92 153 149 Hexagon screw D308L | 1 | |
| 15 | 53 25 741 Hose -2003 • D308L | 1 | |
| 16 | 53 25 709 Pipe D308L | 1 | |
| 17 | 79 70 163 92 150 224 Hose clamp D308L | 3 | |
| 18 | 79 78 190 55 566 034 Screw D308L | 1 | |
| 20 | 53 24 132 Hose D308L | 1 | |
| 21 | 53 40 005 Mass air flow sensor -2003 • D308L | 1 | |
| 22 | 54 61 868 Pipe D308L | 1 | |
| 23 | 53 41 540 Pipe D308L | 1 | |
| 24 | 53 41 524 Hose D308L | 1 | |
| 25 | 48 97 377 Hose D308L | 1 | |
| 26 | 45 76 583 90 467 194 Hose clamp D308L | 1 |
