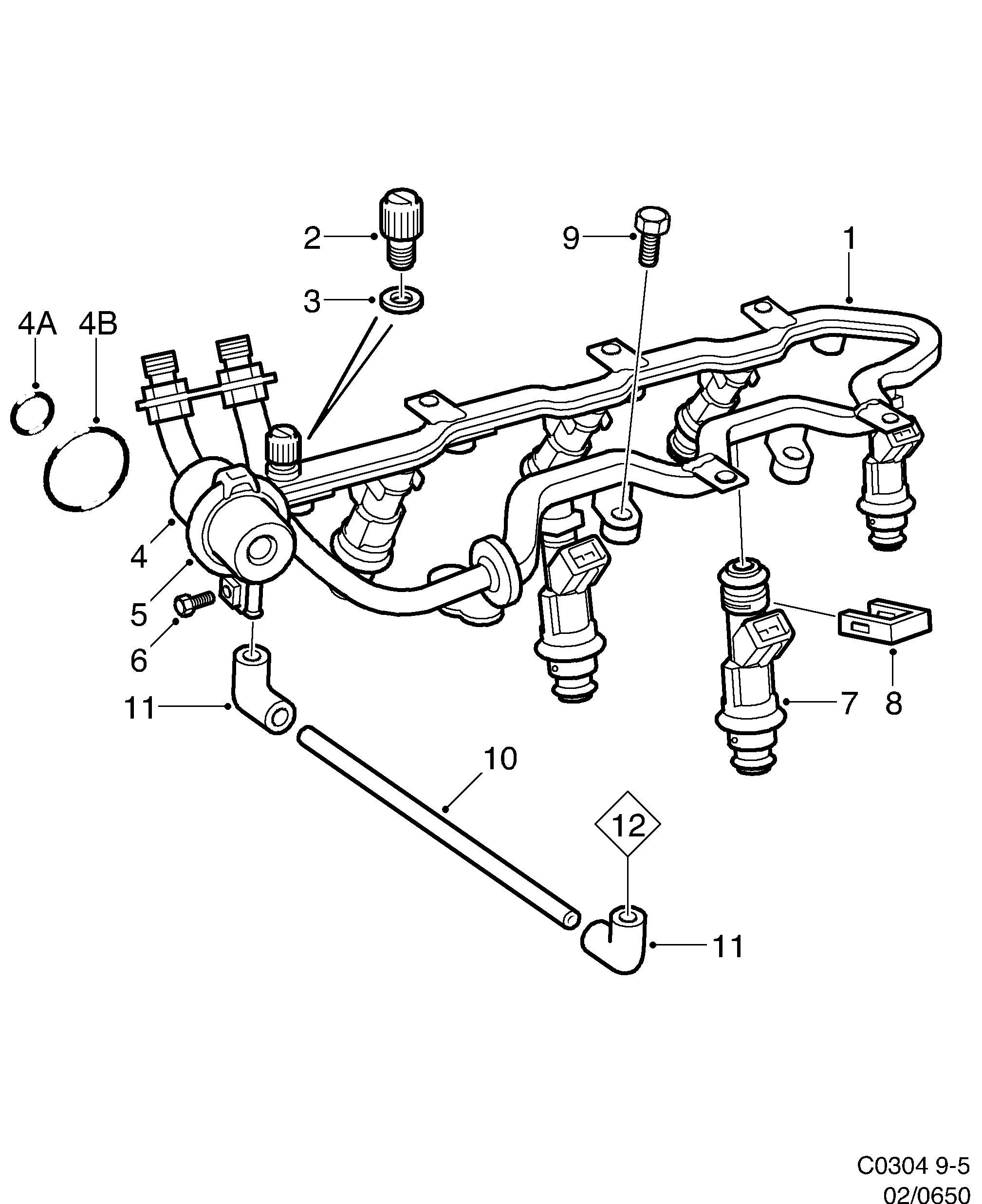

650: Engine - Fuel system - Fuel rail
(1998 - 2003 | B308E) | For 9-5 (9600) (2002)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 45 03 728 90 412 460 Fuel rail B308E | 1 | |
| 2 | 45 03 744 Valve B308E | 1 | |
| 3 | 45 03 751 Washer B308E | 1 | |
| 4 | 94 83 538 91 18 850 Fuel pressure regulator 2001-2003 • B308E | 1 | |
| 4A | 90 511 960 Washer B308E • (47 70 434) | 1 | |
| 4B | 90 511 961 O-ring B308E | 1 | |
| 5 | 95 42 424 Clamp 2001- • B308E | 1 | |
| 6 | 47 70 962 11 097 861 Screw B308E | 1 | |
| 7 | 47 70 392 59 59 622 Injector 1998-2002 • B308E | 6 | |
| 8 | 45 03 785 Spring clamp B308E | 6 | |
| 9 | 47 73 156 11 096 811 Screw 2000- • B308E | 6 | |
| 10 | 45 04 908 Vacuum pipe B308E | 1 | |
| 11 | 45 03 488 90 572 322 Hose B308E | 2 | |
| 12 | Throttle bodyFuel system B308E |
