Question 1

Where to find the exploded diagram for Intake and exhaust system on my Saab 9-5 (9600) 2002?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 9-5 (9600) 2002. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (9600) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

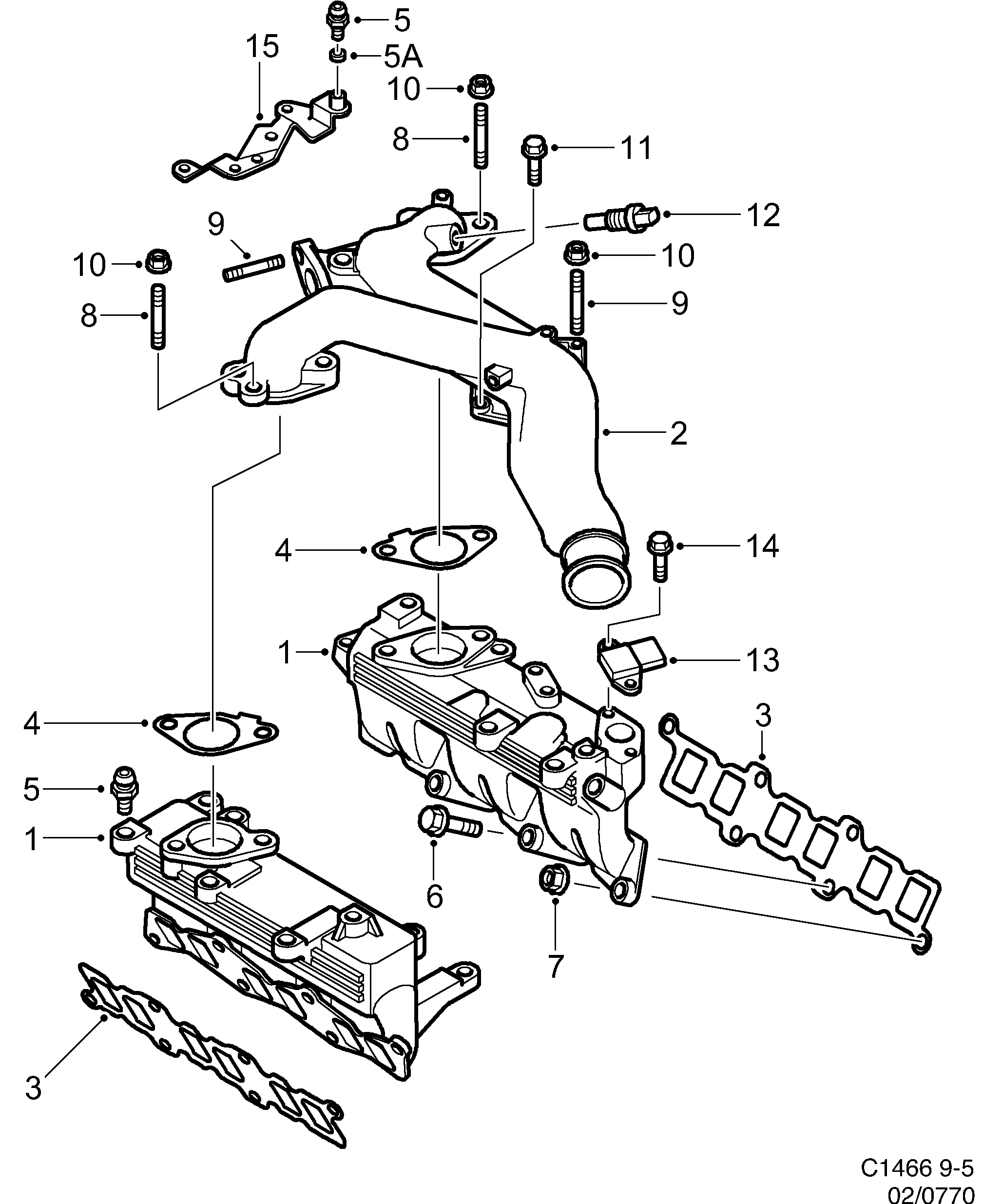

Pos.	Part No.	Description	Usage	Qty
1	59 52 437 Intake manifold D308L • RH	Intake manifold	D308L RH	1
1	59 52 445 Intake manifold D308L • LH	Intake manifold	D308L LH	1
2	59 52 502 Intake manifold D308L	Intake manifold	D308L	1
3	97 380 536 Gasket D308L • (59 52 486)	Gasket	D308L (59 52 486)	2
4	59 52 510 97 250 664 Gasket 2002-2004 • D308L	Gasket	2002-2004 D308L	2
5	59 52 452 Screw D308L	Screw	D308L	4
5A	75 54 215 Spacer 2002- • D308L	Spacer	2002- D308L	1
6	53 42 498 Screw D308L • (59 42 494)	Screw	D308L (59 42 494)	8
7	59 52 460 Nut D308L	Nut	D308L	5
8	59 52 551 Stud screw D308L	Stud screw	D308L	3
9	59 52 569 Stud screw D308L	Stud screw	D308L	2
10	59 52 460 Nut D308L	Nut	D308L	4
11	59 50 274 Screw D308L	Screw	D308L	1
12	59 52 544 12 146 830 Pressure sensor D308L	Pressure sensor	D308L	1
13	59 52 528 Pressure sensor D308L	Pressure sensor	D308L	1
14	59 51 827 Screw D308L	Screw	D308L	1
15	BraceIntake and exhaust system D308L	BraceIntake and exhaust system D308L

Pos.	Part No.	Description	Usage	Qty
1	59 52 437 Intake manifold D308L • RH	Intake manifold	D308L RH	1
1	59 52 445 Intake manifold D308L • LH	Intake manifold	D308L LH	1
2	59 52 502 Intake manifold D308L	Intake manifold	D308L	1
3	97 380 536 Gasket D308L • (59 52 486)	Gasket	D308L (59 52 486)	2
4	59 52 510 97 250 664 Gasket 2002-2004 • D308L	Gasket	2002-2004 D308L	2
5	59 52 452 Screw D308L	Screw	D308L	4
5A	75 54 215 Spacer 2002- • D308L	Spacer	2002- D308L	1
6	53 42 498 Screw D308L • (59 42 494)	Screw	D308L (59 42 494)	8
7	59 52 460 Nut D308L	Nut	D308L	5
8	59 52 551 Stud screw D308L	Stud screw	D308L	3
9	59 52 569 Stud screw D308L	Stud screw	D308L	2
10	59 52 460 Nut D308L	Nut	D308L	4
11	59 50 274 Screw D308L	Screw	D308L	1
12	59 52 544 12 146 830 Pressure sensor D308L	Pressure sensor	D308L	1
13	59 52 528 Pressure sensor D308L	Pressure sensor	D308L	1
14	59 51 827 Screw D308L	Screw	D308L	1
15	BraceIntake and exhaust system D308L	BraceIntake and exhaust system D308L

770: Engine - Intake and exhaust system - Inlet pipe
