Question 1

Where to find the exploded diagram for Intake and exhaust system on my Saab 9-5 (9600) 2002?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 9-5 (9600) 2002. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (9600) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	59 52 601 Exhaust manifold D308L • LH	Exhaust manifold	D308L LH	1
1	59 52 593 Exhaust manifold D308L • RH	Exhaust manifold	D308L RH	1
2	97 127 702 Gasket D308L • (59 52 684)	Gasket	D308L (59 52 684)	2
3	59 52 718 Heat shield D308L	Heat shield	D308L	1
4	59 52 726 Heat shield D308L	Heat shield	D308L	1
5	59 52 734 Screw D308L	Screw	D308L	11
6	59 52 650 Nut D308L	Nut	D308L	14
7	59 52 635 Flange coupling D308L • LH	Flange coupling	D308L LH	1
7	59 52 627 Flange coupling D308L • RH	Flange coupling	D308L RH	1
8	59 52 668 Screw D308L	Screw	D308L	4
9	59 52 767 Heat shield D308L	Heat shield	D308L	1
10	59 55 653 Nut D308L	Nut	D308L	2
11	59 52 650 Nut D308L	Nut	D308L	4
12	59 52 692 Exhaust manifold D308L	Exhaust manifold	D308L	1
13	59 52 619 Stud D308L	Stud	D308L	4
14	59 52 643 94 032 135 Stud D308L	Stud	D308L	4
15	59 52 700 Screw D308L	Screw	D308L	2
16	97 127 704 Seal D308L • (59 52 742)	Seal	D308L (59 52 742)	4
17	59 52 759 Heat shield D308L	Heat shield	D308L	1

Pos.	Part No.	Description	Usage	Qty
1	59 52 601 Exhaust manifold D308L • LH	Exhaust manifold	D308L LH	1
1	59 52 593 Exhaust manifold D308L • RH	Exhaust manifold	D308L RH	1
2	97 127 702 Gasket D308L • (59 52 684)	Gasket	D308L (59 52 684)	2
3	59 52 718 Heat shield D308L	Heat shield	D308L	1
4	59 52 726 Heat shield D308L	Heat shield	D308L	1
5	59 52 734 Screw D308L	Screw	D308L	11
6	59 52 650 Nut D308L	Nut	D308L	14
7	59 52 635 Flange coupling D308L • LH	Flange coupling	D308L LH	1
7	59 52 627 Flange coupling D308L • RH	Flange coupling	D308L RH	1
8	59 52 668 Screw D308L	Screw	D308L	4
9	59 52 767 Heat shield D308L	Heat shield	D308L	1
10	59 55 653 Nut D308L	Nut	D308L	2
11	59 52 650 Nut D308L	Nut	D308L	4
12	59 52 692 Exhaust manifold D308L	Exhaust manifold	D308L	1
13	59 52 619 Stud D308L	Stud	D308L	4
14	59 52 643 94 032 135 Stud D308L	Stud	D308L	4
15	59 52 700 Screw D308L	Screw	D308L	2
16	97 127 704 Seal D308L • (59 52 742)	Seal	D308L (59 52 742)	4
17	59 52 759 Heat shield D308L	Heat shield	D308L	1

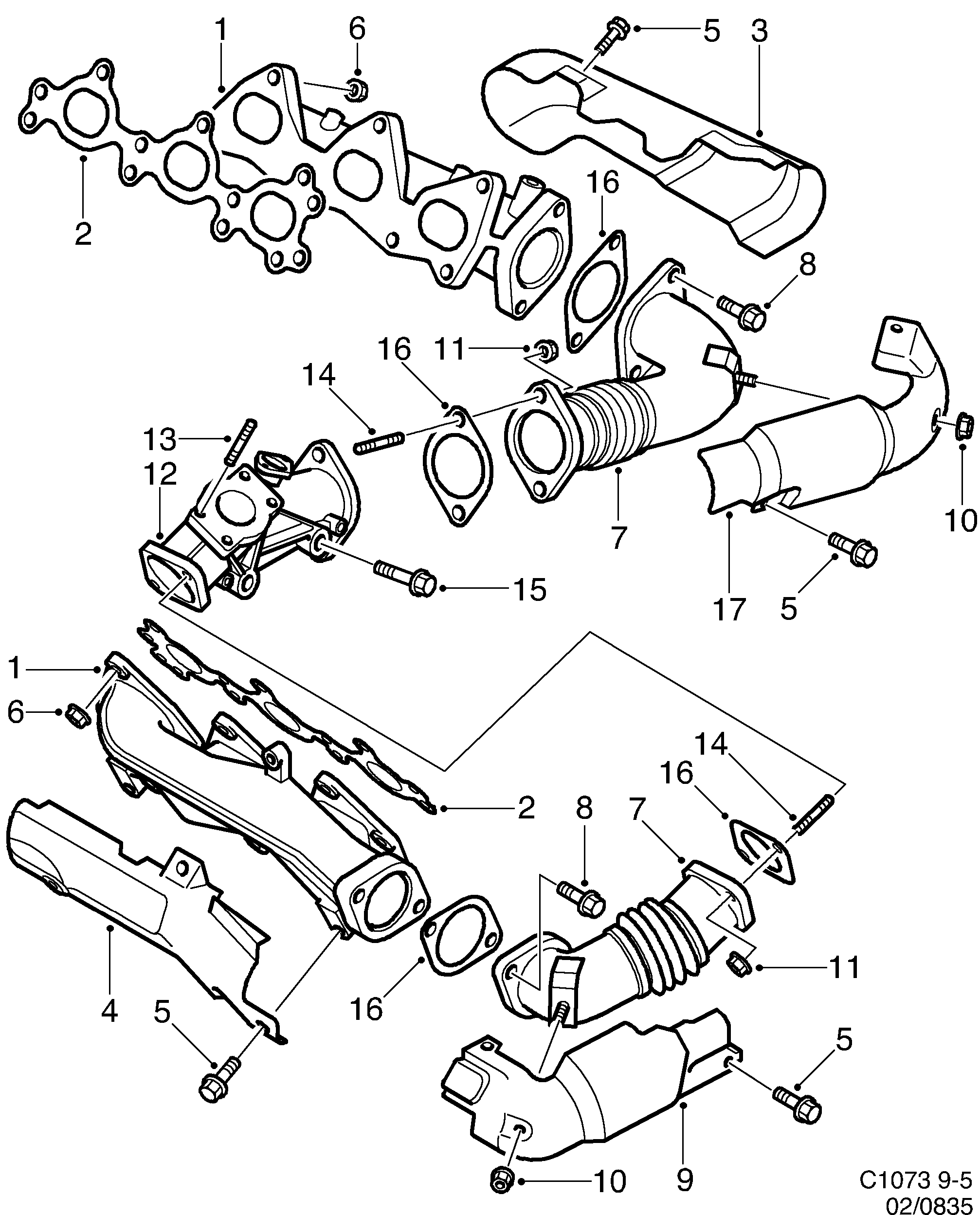

835: Engine - Intake and exhaust system - Exhaust manifold
