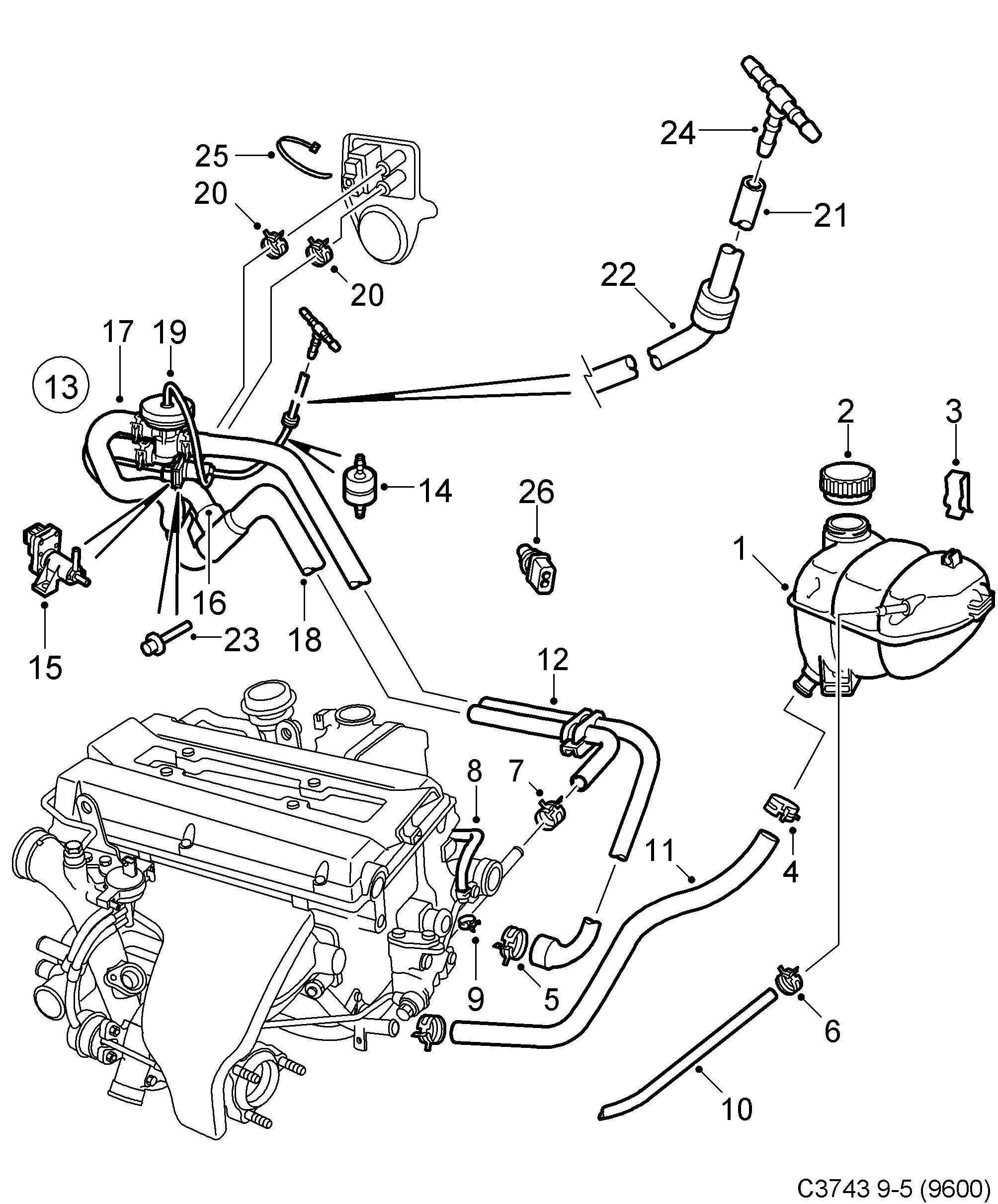

915: Engine - Cooling system - Expansion tank

(1998 - 2010 | PETROL) | For 9-5 (9600) (2002)

100%

(N°910)

Section 915

(N°920)

Pos.	Part No.	Description	Usage	Qty
1	45 75 684 90 499 749 Expansion tank PETROL	Expansion tank	PETROL	1
2	43 95 513 Cover 1998-2005 • PETROL	Cover	1998-2005 PETROL	1
3	43 97 485 Clamp PETROL	Clamp	PETROL	1
4	45 76 609 90 572 594 Hose clamp PETROL	Hose clamp	PETROL	1
5	45 76 591 Hose clamp PETROL	Hose clamp	PETROL	2
6	46 20 365 90 469 888 Hose clamp PETROL	Hose clamp	PETROL	1
6	43 48 231 Hose clamp B235R	Hose clamp	B235R	1
7	90 571 576 Hose clamp PETROL	Hose clamp	PETROL	1
8	91 86 883 55 558 930 Hose 1998-2005 • PETROL	Hose	1998-2005 PETROL	1
9	46 20 365 90 469 888 Hose clamp PETROL	Hose clamp	PETROL	2
9	43 48 231 Hose clamp B235R	Hose clamp	B235R	2
10	HoseFuel system PETROL	HoseFuel system PETROL
11	51 94 170 Hose 2002-2010 • PETROL	Hose	2002-2010 PETROL	1
12	54 63 252 Hose 2002-2007 • PETROL • For cars without water...	Hose	2002-2007 PETROL For cars without water...	1
12	47 57 126 Radiator hose 1998-2007 • PETROL • AC/ACC \| For cars...	Radiator hose	1998-2007 PETROL AC/ACC \| For cars...	1
13	47 56 714 50 48 830 Valve 1998-2003 • PETROL • AC/ACC \| For cars...	Valve	1998-2003 PETROL AC/ACC \| For cars...	1
14	43 01 669 12 793 343 Non-return valve 1998-2003 • PETROL • AC/ACC \| For cars...	Non-return valve	1998-2003 PETROL AC/ACC \| For cars...	1
15	43 94 078 90 466 214 Secondary air injection control valve 1998-2003 • PETROL • AC/ACC \| For cars...	Secondary air injection control valve	1998-2003 PETROL AC/ACC \| For cars...	1
16	47 56 672 Radiator hose 1998-2003 • PETROL • AC/ACC \| For cars...	Radiator hose	1998-2003 PETROL AC/ACC \| For cars...	1
17	47 56 698 Radiator hose 1998-2007 • PETROL • AC/ACC \| For cars...	Radiator hose	1998-2007 PETROL AC/ACC \| For cars...	1
18	47 56 672 Radiator hose 1998-2003 • PETROL • AC/ACC \| For cars...	Radiator hose	1998-2003 PETROL AC/ACC \| For cars...	1
19	43 96 172 90 566 947 By-pass valve 1998-2007 • PETROL • AC/ACC \| For cars...	By-pass valve	1998-2007 PETROL AC/ACC \| For cars...	1
19	90 566 947 By-pass valve 1998-2007 • PETROL • AC/ACC \| For cars...	By-pass valve	1998-2007 PETROL AC/ACC \| For cars...	1
20	90 572 594 Hose clamp 1998-2007 • PETROL • AC/ACC \| For cars...	Hose clamp	1998-2007 PETROL AC/ACC \| For cars...	3
24	12 791 937 Pipe 1998-2007 • PETROL • AC/ACC \| For cars...	Pipe	1998-2007 PETROL AC/ACC \| For cars...	1
25	92 150 191 11 900 513 Tensioning band 2002- • PETROL • For cars without water...	Tensioning band	2002- PETROL For cars without water...	1
26	49 42 298 Dummy socket 2002-2007 • PETROL • For cars without water...	Dummy socket	2002-2007 PETROL For cars without water...	1
