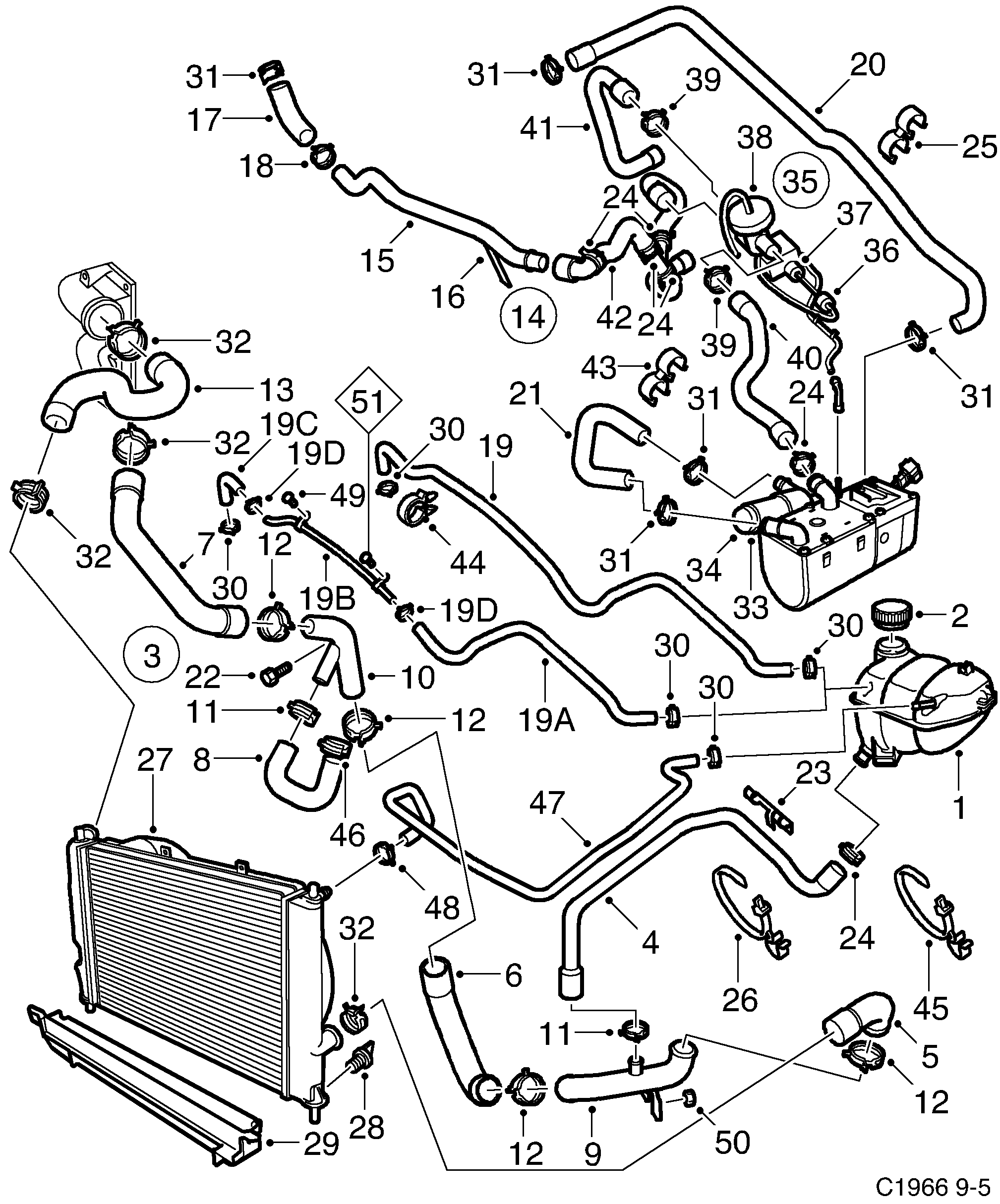

920: Engine - Cooling system - Expansion tank - Radiator

(2002 - 2005 | D223L) | For 9-5 (9600) (2002)

100%

(N°915)

Section 920

(N°940)

Pos.	Part No.	Description	Usage	Qty
1	45 75 692 90 499 767 Expansion tank D223L	Expansion tank	D223L	1
2	43 95 513 Cover D223L	Cover	D223L	1
3	54 60 191 54 63 948 Hose 2002-2002 • D223L	Hose	2002-2002 D223L	1
4	54 60 217 54 63 955 Hose 2002-2002 • D223L	Hose	2002-2002 D223L	1
5	54 60 241 Hose D223L	Hose	D223L	1
6	54 60 258 Hose D223L	Hose	D223L	1
7	54 60 357 Hose D223L	Hose	D223L	1
8	54 60 423 Hose D223L	Hose	D223L	1
9	54 60 449 Joint nipple D223L	Joint nipple	D223L	1
10	54 60 431 Joint nipple D223L	Joint nipple	D223L	1
11	45 76 609 90 572 594 Hose clamp D223L	Hose clamp	D223L	2
12	48 97 732 13 136 147 Hose clamp D223L	Hose clamp	D223L	4
13	53 26 590 Hose D223L	Hose	D223L	1
14	54 60 894 Tube D223L	Tube	D223L	1
15	54 60 902 Tube D223L	Tube	D223L	1
16	54 60 910 Bracket D223L	Bracket	D223L	1
17	54 60 928 Hose D223L	Hose	D223L	1
18	90 499 504 Hose clamp D223L • (49 60 456)	Hose clamp	D223L (49 60 456)	1
19	54 62 106 53 26 616 Hose -2003 • D223L	Hose	-2003 D223L	1
20	53 26 624 Hose D223L	Hose	D223L	1
21	53 27 069 Hose D223L	Hose	D223L	1
22	79 78 265 Hexagon screw D223L	Hexagon screw	D223L	1
23	54 60 738 Bracket D223L	Bracket	D223L	1
24	45 76 609 90 572 594 Hose clamp D223L	Hose clamp	D223L	5
25	54 61 504 11 900 513 Clip -2003 • D223L	Clip	-2003 D223L	1
26	85 52 663 Tensioning band D223L	Tensioning band	D223L	1
27	45 75 734 Radiator D223L	Radiator	D223L	1
28	53 33 471 Draining plug D223L	Draining plug	D223L	1
29	48 96 155 Air shield D223L	Air shield	D223L	1
30	46 20 365 90 469 888 Hose clamp 2002-2002 • D223L • For cars with parking...	Hose clamp	2002-2002 D223L For cars with parking...	2
31	45 76 609 90 572 594 Hose clamp D223L	Hose clamp	D223L	4
32	48 97 732 13 136 147 Hose clamp D223L	Hose clamp	D223L	4
33	43 95 612 Circulation pump D223L	Circulation pump	D223L	1
34	53 23 720 Bracket D223L	Bracket	D223L	1
35	53 27 994 54 63 195 Valve 2002-2002 • D223L	Valve	2002-2002 D223L	1
36	43 01 669 12 793 343 Non-return valve 2002-2002 • D223L	Non-return valve	2002-2002 D223L	1
37	43 94 078 90 466 214 Secondary air injection control valve 2002-2002 • D223L	Secondary air injection control valve	2002-2002 D223L	1
38	43 96 172 90 566 947 By-pass valve 2002-2002 • D223L	By-pass valve	2002-2002 D223L	1
39	45 76 609 90 572 594 Hose clamp 2002-2002 • D223L	Hose clamp	2002-2002 D223L	3
40	53 20 650 Hose assembly D223L • For cars with parking...	Hose assembly	D223L For cars with parking...	1
40	54 61 512 Hose 2002-2002 • D223L • For cars without parking...	Hose	2002-2002 D223L For cars without parking...	1
41	53 26 780 Hose assembly 2002-2002 • D223L	Hose assembly	2002-2002 D223L	1
42	54 60 845 54 62 999 Radiator hose 2002-2002 • D223L	Radiator hose	2002-2002 D223L	1
43	51 25 356 Clamp D223L	Clamp	D223L	1
44	92 150 209 11 900 515 Clamp D223L	Clamp	D223L	1
45	75 93 221 30 507 607 Tensioning band 2002-2002 • D223L	Tensioning band	2002-2002 D223L	1
46	45 76 609 90 572 594 Hose clamp D223L	Hose clamp	D223L	1
47	53 23 860 Hose D223L	Hose	D223L	1
48	45 76 575 Hose clamp D223L	Hose clamp	D223L	1
51	ScrewIntake and exhaust system D223L	ScrewIntake and exhaust system D223L			1
