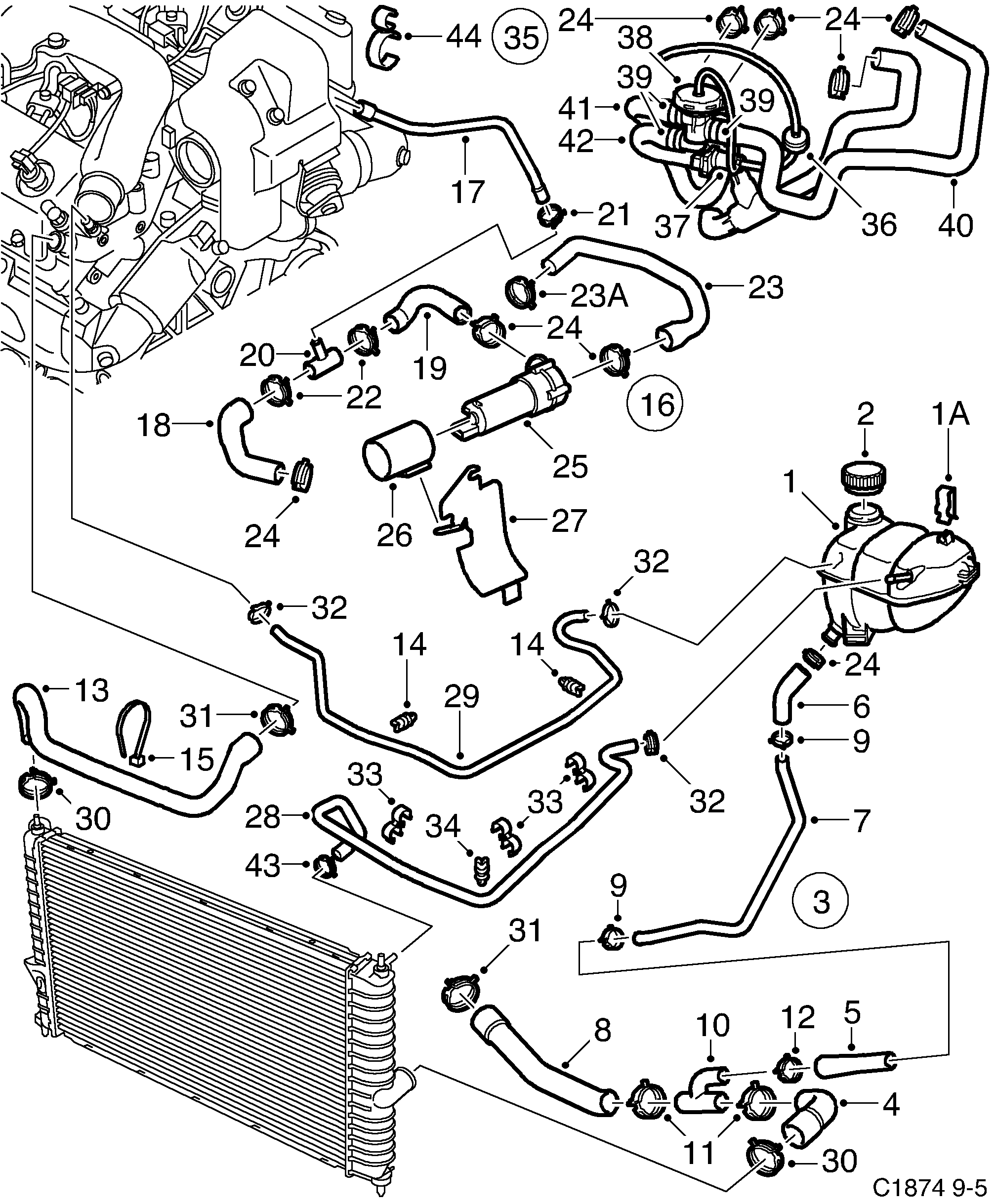

950: Engine - Cooling system - Expansion tank

(2002 - 2005 | D308L) | For 9-5 (9600) (2002)

100%

(N°945)

Section 950

(N°955)

Pos.	Part No.	Description	Usage	Qty
1	45 75 692 90 499 767 Expansion tank D308L	Expansion tank	D308L	1
1A	43 97 485 Clamp D308L	Clamp	D308L	1
2	43 95 513 Cover D308L	Cover	D308L	1
3	53 20 536 Hose D308L	Hose	D308L	1
4	53 20 569 Hose D308L	Hose	D308L	1
5	53 20 627 Hose D308L	Hose	D308L	1
6	53 21 385 Hose D308L	Hose	D308L	1
7	53 21 443 Hose D308L	Hose	D308L	1
8	53 20 544 Hose D308L	Hose	D308L	1
9	45 76 583 90 467 194 Hose clamp D308L	Hose clamp	D308L	2
10	53 20 551 Joint nipple D308L	Joint nipple	D308L	1
11	79 87 431 Hose clamp D308L	Hose clamp	D308L	2
12	45 76 609 90 572 594 Hose clamp D308L	Hose clamp	D308L	1
13	51 91 119 Hose D308L	Hose	D308L	1
14	51 25 604 Clip D308L	Clip	D308L	2
15	79 84 784 Tensioning band D308L	Tensioning band	D308L	1
16	53 20 643 Radiator hose D308L • For cars with parking...	Radiator hose	D308L For cars with parking...	1
16	54 63 856 Radiator hose D308L • For cars without parking...	Radiator hose	D308L For cars without parking...	1
17	53 26 830 Radiator hose D308L • For cars with parking...	Radiator hose	D308L For cars with parking...	1
17	54 63 989 Radiator hose D308L • For cars without parking...	Radiator hose	D308L For cars without parking...	1
18	53 26 848 Radiator hose D308L • For cars with parking...	Radiator hose	D308L For cars with parking...	1
18	54 63 997 Radiator hose D308L • For cars without parking...	Radiator hose	D308L For cars without parking...	1
19	53 26 855 Radiator hose D308L • For cars with parking...	Radiator hose	D308L For cars with parking...	1
19	54 64 003 Radiator hose D308L • For cars without parking...	Radiator hose	D308L For cars without parking...	1
20	53 26 863 Joint nipple D308L	Joint nipple	D308L	1
21	45 76 567 Hose clamp D308L	Hose clamp	D308L	1
22	90 499 504 Hose clamp 2002-2002 • D308L • (49 60 456)	Hose clamp	2002-2002 D308L (49 60 456)	2
23	53 20 676 Radiator hose D308L • For cars with parking...	Radiator hose	D308L For cars with parking...	1
23	54 63 849 Radiator hose D308L • For cars without parking...	Radiator hose	D308L For cars without parking...	1
23A	46 85 947 Hose clamp D308L	Hose clamp	D308L	1
24	45 76 609 90 572 594 Hose clamp D308L	Hose clamp	D308L	8
25	43 95 612 Circulation pump D308L	Circulation pump	D308L	1
26	53 23 720 Bracket D308L	Bracket	D308L	1
27	BraceFuel system D308L	BraceFuel system D308L
28	53 23 860 Hose D308L	Hose	D308L	1
29	53 20 635 Hose D308L	Hose	D308L	1
30	48 97 732 13 136 147 Hose clamp D308L	Hose clamp	D308L	2
31	48 97 740 Hose clamp D308L	Hose clamp	D308L	2
32	46 20 365 90 469 888 Hose clamp D308L	Hose clamp	D308L	3
33	73 98 464 Clamp D308L	Clamp	D308L	3
34	92 150 209 11 900 515 Clamp D308L	Clamp	D308L	1
35	53 23 738 Valve D308L	Valve	D308L	1
36	43 01 669 12 793 343 Non-return valve D308L	Non-return valve	D308L	1
37	43 94 078 90 466 214 Secondary air injection control valve D308L	Secondary air injection control valve	D308L	1
38	43 96 172 90 566 947 By-pass valve D308L	By-pass valve	D308L	1
39	45 76 609 90 572 594 Hose clamp D308L	Hose clamp	D308L	3
40	53 20 650 Hose assembly D308L	Hose assembly	D308L	1
41	53 26 780 Hose assembly D308L	Hose assembly	D308L	1
42	53 26 822 Hose assembly D308L	Hose assembly	D308L	1
43	45 76 575 Hose clamp D308L	Hose clamp	D308L	1
