Question 1

Where to find the exploded diagram for Lighting on my Saab 9-5 (9600) 2002?

Accepted Answer

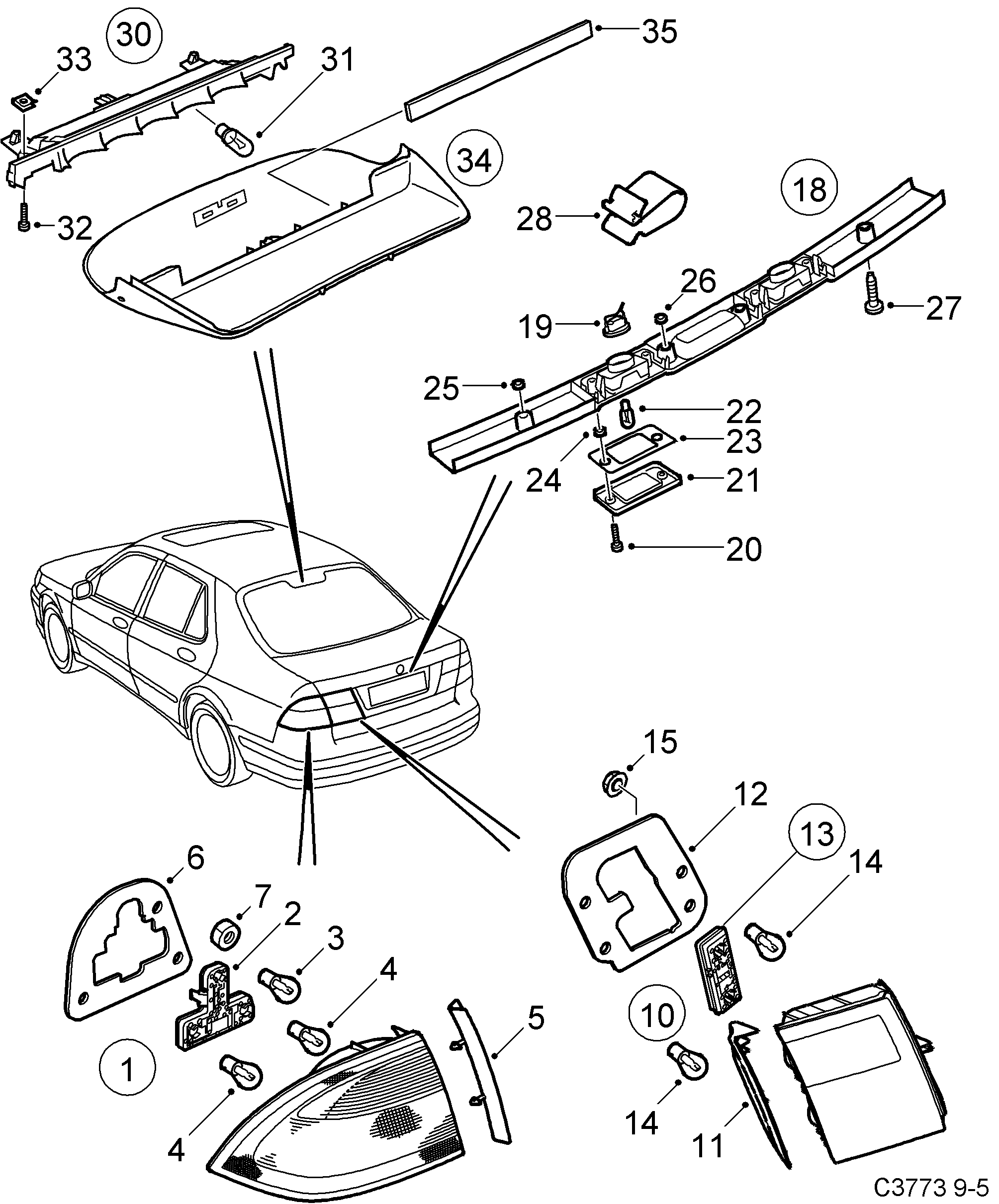

Find on Saabiste.net the complete and official interactive technical diagram for Lighting on Saab 9-5 (9600) 2002. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Lighting?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Lighting?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (9600) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Lighting, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Lighting suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	51 42 195 Tail lamp LH	Tail lamp	LH	1
1	51 42 203 Tail lamp RH	Tail lamp	RH	1
2	54 04 546 Socket, bulb LH	Socket, bulb	LH	1
2	54 04 553 Socket, bulb RH	Socket, bulb	RH	1
3	44 68 930 93 190 465 Bulb	Bulb		1
4	43 20 594 93 190 467 Bulb	Bulb		2
5	54 04 264 Cover LH	Cover	LH	1
5	54 04 272 Cover RH	Cover	RH	1
6	54 04 538 Seal	Seal		1
7	79 77 929 11 900 451 Nut	Nut		6
10	54 04 603 Lamp LH	Lamp	LH	1
10	54 04 611 Lamp RH	Lamp	RH	1
12	54 04 488 Seal LH	Seal	LH	1
12	54 04 504 Seal RH	Seal	RH	1
11	54 04 199 Cover LH	Cover	LH	1
11	54 04 207 Cover RH	Cover	RH	1
13	54 07 481 Socket, bulb LH	Socket, bulb	LH	1
13	54 07 465 Socket, bulb LH \| With rear...	Socket, bulb	LH \| With rear...	1
13	54 07 473 Socket, bulb RH	Socket, bulb	RH	1
13	54 07 499 Socket, bulb RH \| With rear...	Socket, bulb	RH \| With rear...	1
14	71 54 719 93 169 011 Bulb	Bulb		2
15	79 77 929 11 900 451 Nut	Nut		8
18	93 167 196 Handle	Handle		1
19	48 31 236 Socket, bulb	Socket, bulb		2
20	79 22 214 Screw	Screw		4
21	54 92 947 Lens	Lens		2
22	95 12 880 93 190 471 Bulb	Bulb		2
23	48 31 301 Seal	Seal		2
24	48 31 251 Seal Not as separate spare...	Seal	Not as separate spare...	2
25	48 32 192 Seal Not as separate spare...	Seal	Not as separate spare...	2
26	48 31 244 Seal Not as separate spare...	Seal	Not as separate spare...	2
27	79 78 430 92 151 601 Screw	Screw		4
28	79 51 783 Clamp	Clamp		1
30	47 85 226 53 37 985 Stop light 2002-2003	Stop light	2002-2003	1
31	95 12 880 93 190 471 Bulb	Bulb		5
32	79 22 354 92 153 219 Screw	Screw		2
33	79 72 573 92 150 164 Clip nut	Clip nut		2
34	47 85 234 12 777 461 Cover	Cover		1
35	41 52 690 Lens	Lens		1

Pos.	Part No.	Description	Usage	Qty
1	51 42 195 Tail lamp LH	Tail lamp	LH	1
1	51 42 203 Tail lamp RH	Tail lamp	RH	1
2	54 04 546 Socket, bulb LH	Socket, bulb	LH	1
2	54 04 553 Socket, bulb RH	Socket, bulb	RH	1
3	44 68 930 93 190 465 Bulb	Bulb		1
4	43 20 594 93 190 467 Bulb	Bulb		2
5	54 04 264 Cover LH	Cover	LH	1
5	54 04 272 Cover RH	Cover	RH	1
6	54 04 538 Seal	Seal		1
7	79 77 929 11 900 451 Nut	Nut		6
10	54 04 603 Lamp LH	Lamp	LH	1
10	54 04 611 Lamp RH	Lamp	RH	1
12	54 04 488 Seal LH	Seal	LH	1
12	54 04 504 Seal RH	Seal	RH	1
11	54 04 199 Cover LH	Cover	LH	1
11	54 04 207 Cover RH	Cover	RH	1
13	54 07 481 Socket, bulb LH	Socket, bulb	LH	1
13	54 07 465 Socket, bulb LH \| With rear...	Socket, bulb	LH \| With rear...	1
13	54 07 473 Socket, bulb RH	Socket, bulb	RH	1
13	54 07 499 Socket, bulb RH \| With rear...	Socket, bulb	RH \| With rear...	1
14	71 54 719 93 169 011 Bulb	Bulb		2
15	79 77 929 11 900 451 Nut	Nut		8
18	93 167 196 Handle	Handle		1
19	48 31 236 Socket, bulb	Socket, bulb		2
20	79 22 214 Screw	Screw		4
21	54 92 947 Lens	Lens		2
22	95 12 880 93 190 471 Bulb	Bulb		2
23	48 31 301 Seal	Seal		2
24	48 31 251 Seal Not as separate spare...	Seal	Not as separate spare...	2
25	48 32 192 Seal Not as separate spare...	Seal	Not as separate spare...	2
26	48 31 244 Seal Not as separate spare...	Seal	Not as separate spare...	2
27	79 78 430 92 151 601 Screw	Screw		4
28	79 51 783 Clamp	Clamp		1
30	47 85 226 53 37 985 Stop light 2002-2003	Stop light	2002-2003	1
31	95 12 880 93 190 471 Bulb	Bulb		5
32	79 22 354 92 153 219 Screw	Screw		2
33	79 72 573 92 150 164 Clip nut	Clip nut		2
34	47 85 234 12 777 461 Cover	Cover		1
35	41 52 690 Lens	Lens		1
