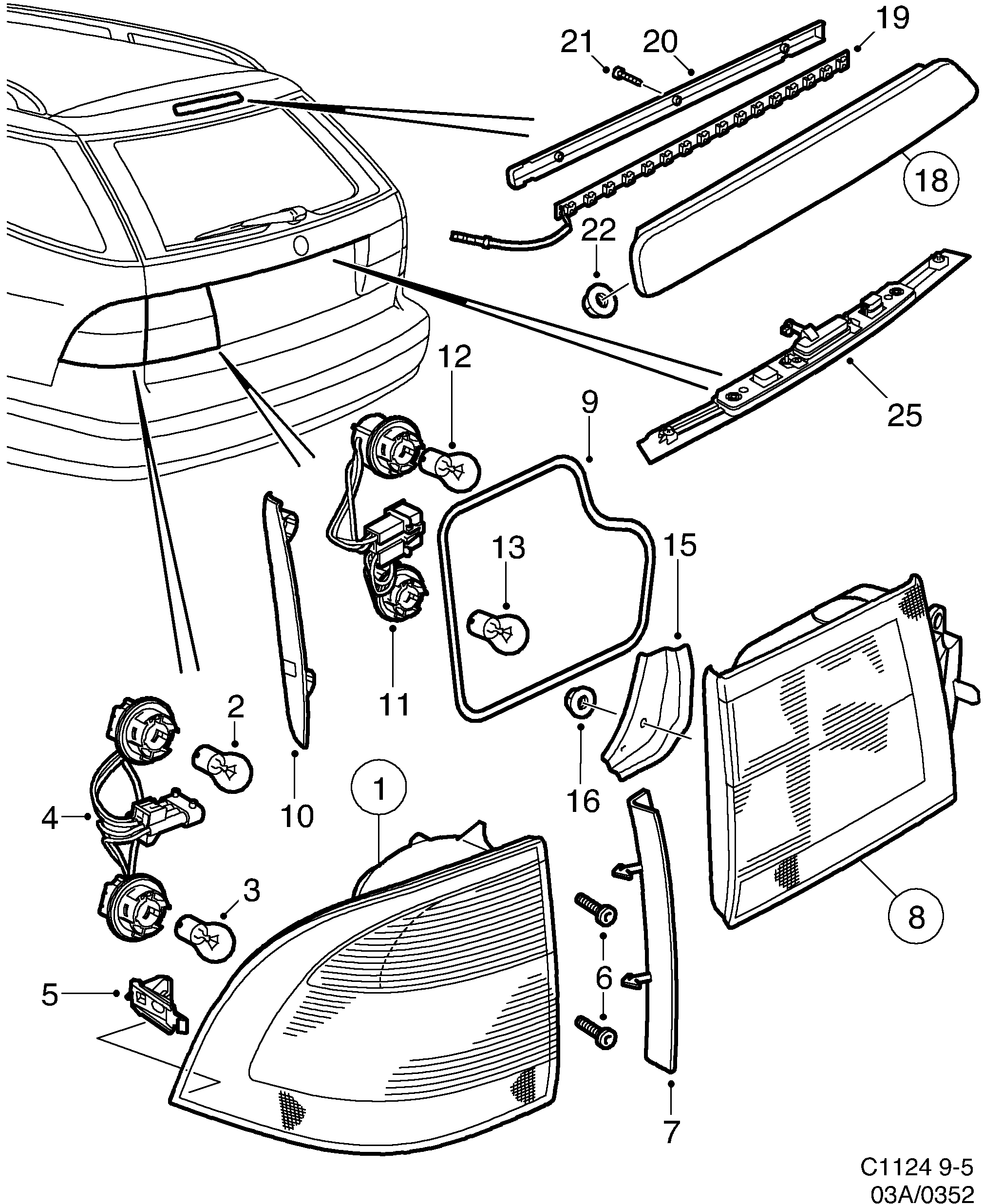

352: Electrical, general - Lighting - Tail lamp
(2002 - 2005 | 5D) | For 9-5 (9600) (2002)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 51 42 252 Tail lamp LH | 1 | |
| 1 | 51 42 260 Tail lamp RH | 1 | |
| 2 | 43 20 594 93 190 467 Bulb | 2 | |
| 3 | 44 68 930 93 190 465 Bulb | 1 | |
| 4 | 54 07 663 Cable harness | 1 | |
| 5 | 54 04 215 Clip | 1 | |
| 6 | 79 78 430 92 151 601 Screw | 4 | |
| 7 | 52 85 457 Cover LH | 1 | |
| 7 | 52 85 465 Cover RH | 1 | |
| 8 | 54 04 645 Lamp LH | 1 | |
| 8 | 54 04 652 Lamp RH | 1 | |
| 9 | 54 04 231 Seal | 1 | |
| 10 | 54 05 295 Cover LH | 1 | |
| 10 | 54 05 303 Cover RH | 1 | |
| 11 | 54 07 622 Cable harness | 1 | |
| 11 | 54 07 630 Cable harness With rear fog light. | 1 | |
| 12 | 95 08 904 93 169 012 Bulb | 1 | |
| 13 | 71 54 719 93 169 011 Bulb | 1 | |
| 15 | 49 15 674 Brace LH | 1 | |
| 15 | 49 15 682 Brace RH | 1 | |
| 16 | 79 77 929 11 900 451 Nut | 6 | |
| 18 | 53 33 430 53 35 864 Stop light -2002 | 1 | |
| 18 | 53 35 864 Stop light 2002- | 1 | |
| 19 | 54 07 572 Diode unit | 1 | |
| 20 | Rear section Not as separate spare... | ||
| 21 | 49 15 138 12 833 867 Screw | 3 | |
| 22 | 43 45 138 11 089 471 Hexagon nut | 3 | |
| 25 | Outside handleDoors, boot lid with plate lamp |
