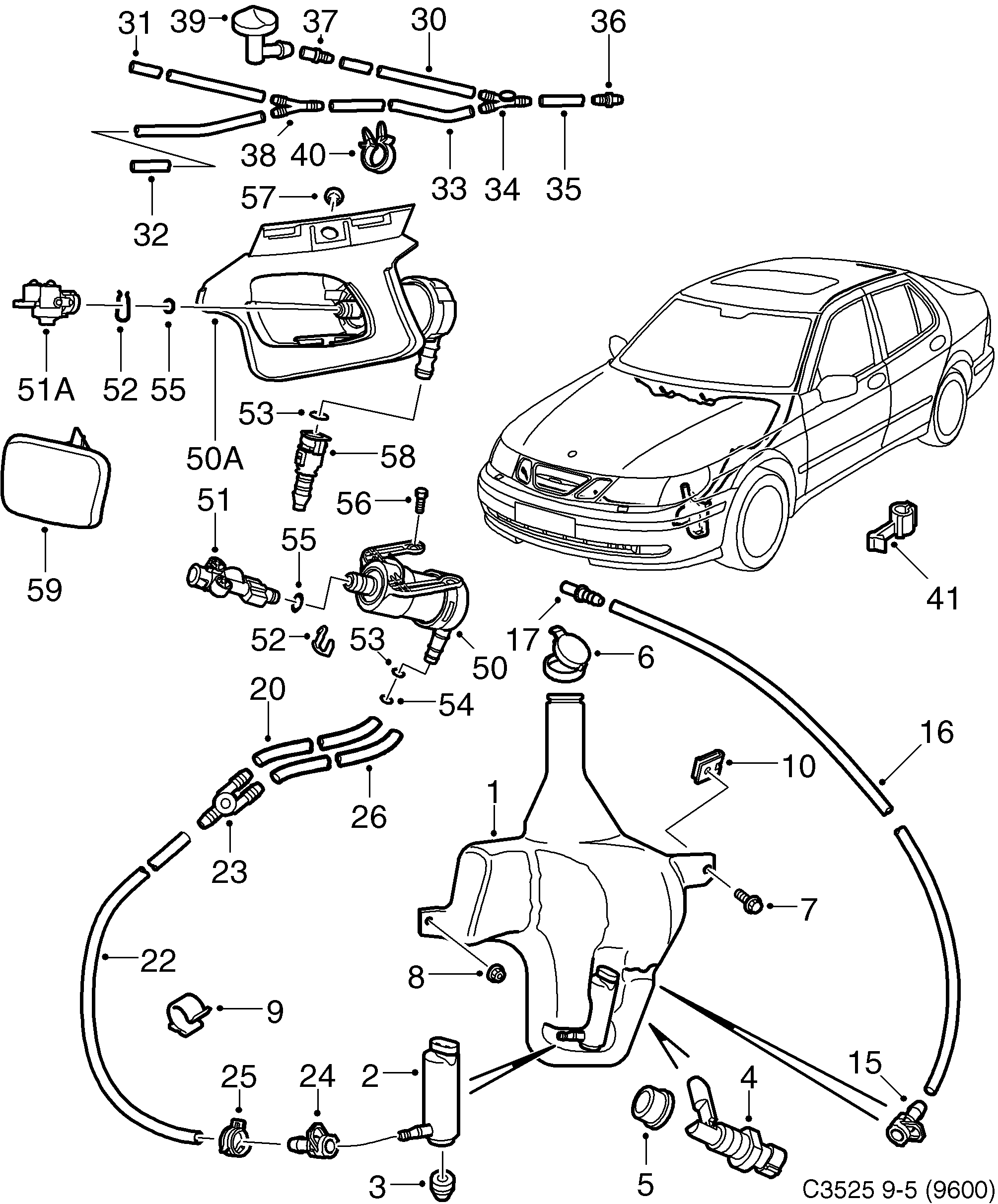

495: Electrical, general - Electric equipment, other - Washer unit - Windshield and headlamp

(2002 - 2010) | For 9-5 (9600) (2002)

100%

(N°430)

Section 495

(N°497)

Pos.	Part No.	Description	Usage	Qty
1	52 86 703 Washer fluid reservoir	Washer fluid reservoir		1
1	55 81 236 Washer fluid reservoir 2002-2005 • For cars without headlamp...	Washer fluid reservoir	2002-2005 For cars without headlamp...	1
1	52 86 729 Washer fluid reservoir	Washer fluid reservoir		1
1	55 81 228 Washer fluid reservoir 2002-2005 • For cars without headlamp...	Washer fluid reservoir	2002-2005 For cars without headlamp...	1
2	12 788 695 90 508 709 Pump, washer-reservoir (48 32 911)	Pump, washer-reservoir	(48 32 911)	2
3	12 787 616 91 86 037 Bushing (48 32 929)	Bushing	(48 32 929)	2
4	12 788 696 Level guard (41 71 146)	Level guard	(41 71 146)	1
5	12 787 615 Bushing (41 71 153)	Bushing	(41 71 153)	1
6	12 788 573 12 767 700 Cover 2002-2005 • (45 63 292)	Cover	2002-2005 (45 63 292)	1
7	92 151 894 12 779 244 Hexagon screw 2002-2006 • (79 78 679)	Hexagon screw	2002-2006 (79 78 679)	1
8	92 152 175 12 778 389 Nut 2002-2006 • (50 71 022)	Nut	2002-2006 (50 71 022)	2
9	92 151 442 Clip (79 51 783)	Clip	(79 51 783)	2
10	73 99 181 Clip	Clip		1
15	12 787 618 Snap-on coupling (48 32 986)	Snap-on coupling	(48 32 986)	1
16	12 788 576 Hose L=1980 MM (85 49...	Hose	L=1980 MM (85 49...	1
17	12 787 619 Snap-on coupling (48 32 754)	Snap-on coupling	(48 32 754)	1
20	12 791 826 Hose 2002-2005 • L=1060 MM (54 06...	Hose	2002-2005 L=1060 MM (54 06...	1
22	12 791 826 Hose 2002-2005 • L=490 MM (54 06...	Hose	2002-2005 L=490 MM (54 06...	1
23	91 14 696 Junction pipe 2002-2003 • (52 89 780)	Junction pipe	2002-2003 (52 89 780)	1
24	52 89 798 Snap-on coupling 2002-2004	Snap-on coupling	2002-2004	3
25	92 151 161 Hose clamp (52 89 806)	Hose clamp	(52 89 806)	6
26	12 791 826 Hose 2002-2005 • L=205 MM (54 06...	Hose	2002-2005 L=205 MM (54 06...	1
30	12 791 826 Hose L=90 MM (54 06...	Hose	L=90 MM (54 06...	1
31	12 791 826 Hose L=155 MM (54 06...	Hose	L=155 MM (54 06...	1
32	12 791 826 Hose L=505 MM (54 06...	Hose	L=505 MM (54 06...	1
33	12 791 826 Hose L=270 MM (54 06...	Hose	L=270 MM (54 06...	1
34	53 36 961 Valve 2002-2002 • (51 42 724)	Valve	2002-2002 (51 42 724)	1
35	12 788 576 Hose L=40 MM (85 49...	Hose	L=40 MM (85 49...	2
36	12 788 577 Snap-on coupling -2004 • ( 48 32 762)	Snap-on coupling	-2004 ( 48 32 762)	1
37	12 787 619 Snap-on coupling -2004 • (48 32 754)	Snap-on coupling	-2004 (48 32 754)	3
38	53 36 961 Valve (49 14 628)	Valve	(49 14 628)	1
39	55 84 917 Nozzle 2002-2003 • (49 14 610)	Nozzle	2002-2003 (49 14 610)	3
40	85 30 917 Clip 2002-2005	Clip	2002-2005	2
41	45 64 829 Clip bonnet hinge	Clip	bonnet hinge	1
50	52 81 571 Headlamp washer 2002-2005 • LH	Headlamp washer	2002-2005 LH	1
50	52 81 589 Headlamp washer 2002-2005 • RH	Headlamp washer	2002-2005 RH	1
51	54 92 897 Nozzle 2002-2005 • LH	Nozzle	2002-2005 LH	1
51	54 92 905 Nozzle 2002-2005 • RH	Nozzle	2002-2005 RH	1
52	54 07 614 Clip -2005	Clip	-2005	1
53	12 791 591 O-ring (54 07 580) \|...	O-ring	(54 07 580) \|...	1
54	54 07 598 12 791 591 O-ring 2002-2005 • Outer	O-ring	2002-2005 Outer	1
55	54 07 606 O-ring -2005 • Nozzle	O-ring	-2005 Nozzle	1
56	79 78 091 11 900 353 Screw 2002-2005	Screw	2002-2005	4
	12 791 826 Hose L=10 000 MM (54...	Hose	L=10 000 MM (54...
	12 762 220 Hose L=10 000 MM	Hose	L=10 000 MM
	12 788 576 Hose L=10 000 MM (85...	Hose	L=10 000 MM (85...
