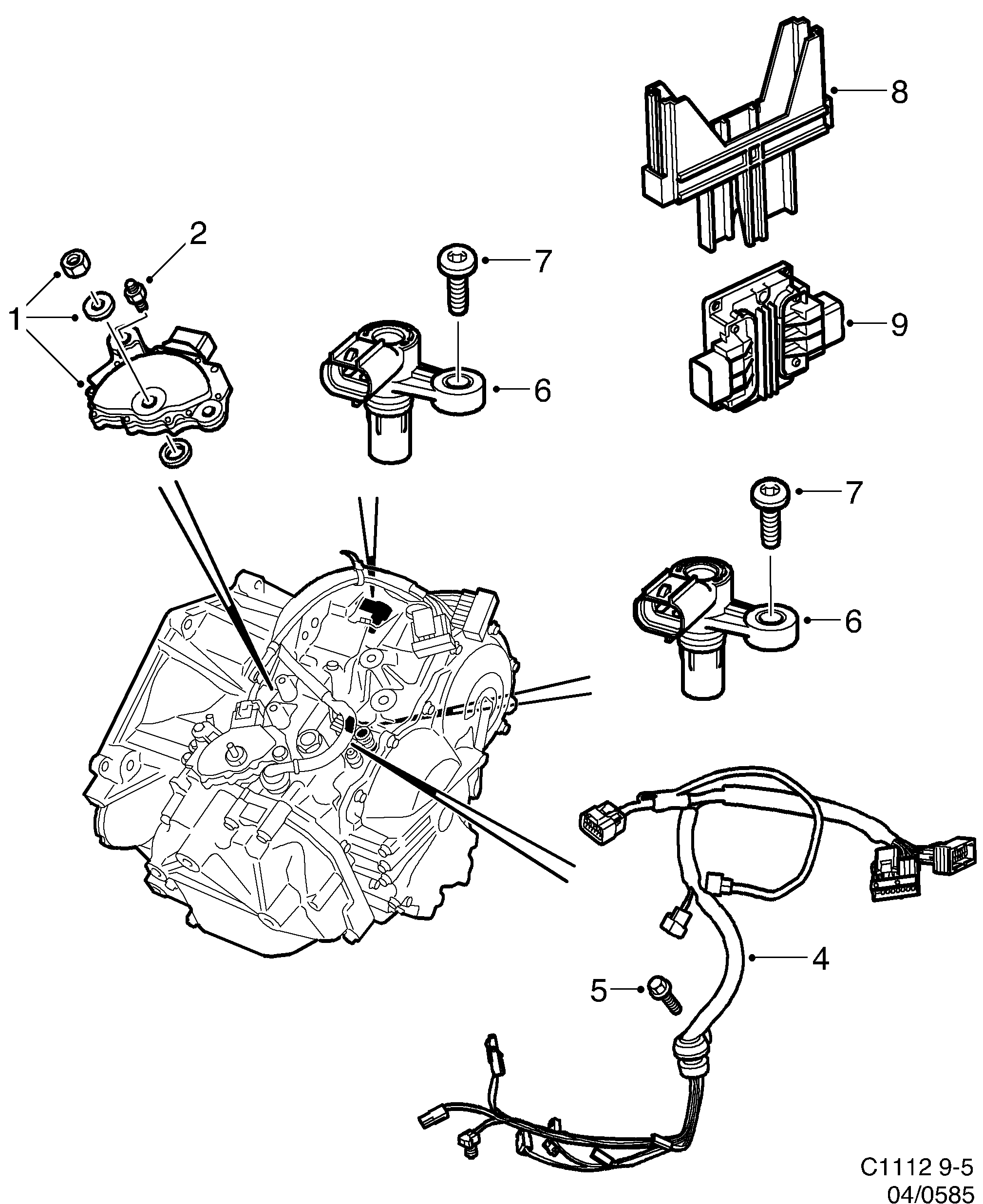

1025: Transmission - Gearbox, automatic - Control module - Sensor
(2002 - 2010 | A) | For 9-5 (9600) (2002)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
Gearbox, automaticGearbox, automatic Gearbox: 01, A • 5-speed | |||
| 1 | 54 40 839 93 172 318 Neutral position switch | 1 | |
54 45 820 55 352 475 Washer | 1 | ||
54 45 812 93 177 480 Washer | 1 | ||
54 45 804 55 352 473 Nut | 1 | ||
| 2 | 46 25 281 Screw | 1 | |
44 91 064 90 348 718 Seal | 1 | ||
| 4 | 54 40 821 54 48 873 Cable harness 2002-2002 | 1 | |
| 5 | 46 25 190 90 510 904 Screw | 1 | |
| 6 | 54 40 888 93 191 689 Speed sensor | 2 | |
| 7 | 52 50 014 90 541 805 Screw | 2 | |
| 8 | 52 56 078 Bracket | 1 | |
| 9 | 54 40 599 55 352 924 Transmission control module 2002-2002 • SPS programming (service programming... | 1 |
