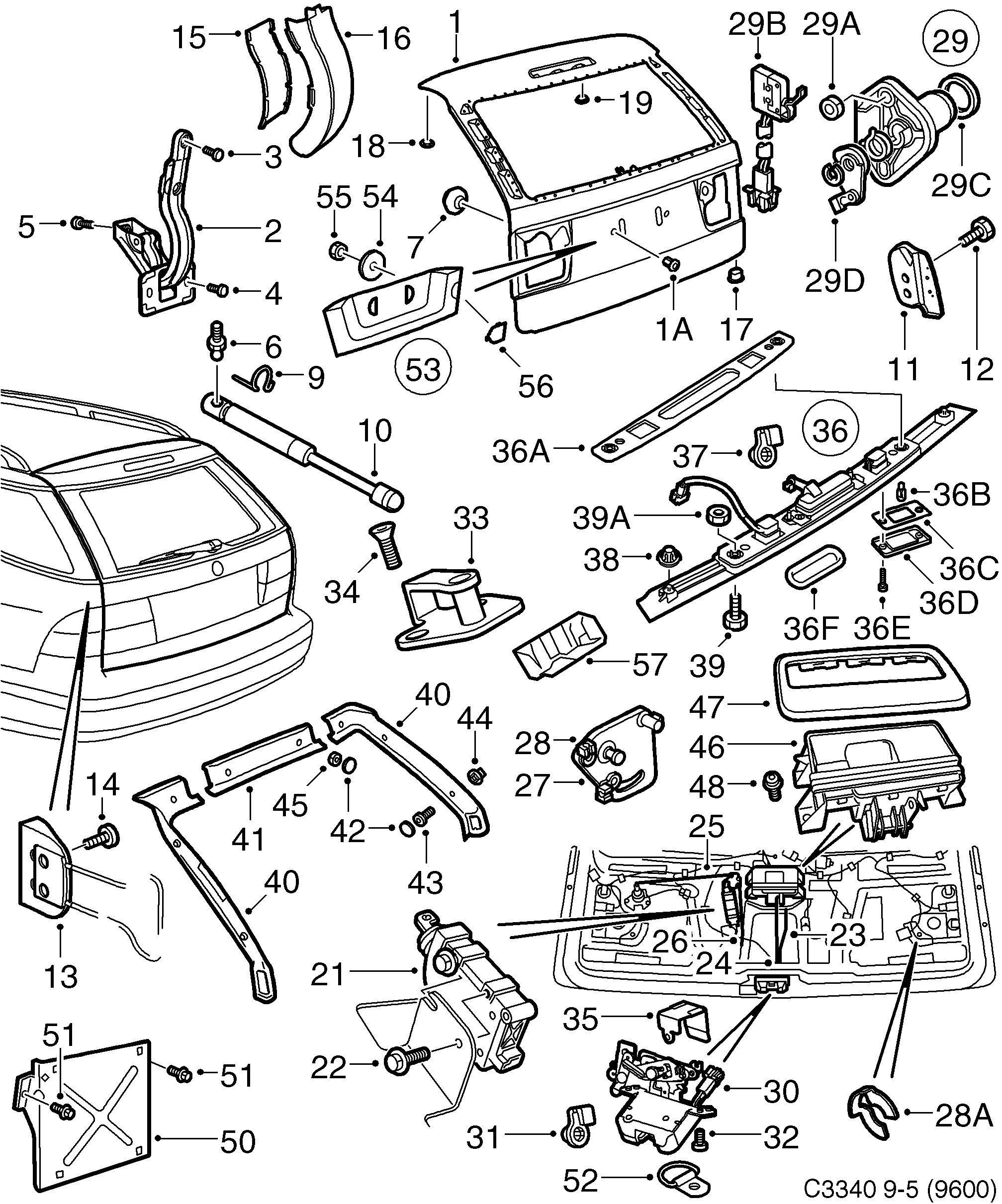

652: Car body, external - Doors, boot lid - Tailgate

(2002 - 2010 | 5D) | For 9-5 (9600) (2002)

100%

(N°642)

Section 652

(N°670)

Pos.	Part No.	Description	Usage	Qty
1	51 85 921 Boot lid -2003	Boot lid	-2003	1
1A	92 150 375 91 30 829 Nut	Nut		6
2	51 82 100 Hinge	Hinge		2
3	80 59 792 92 151 830 Screw	Screw		4
4	51 25 133 Screw 2002-2007	Screw	2002-2007	4
5	79 67 938 55 562 121 Screw -2003	Screw	-2003	2
6	49 40 482 Ball pin	Ball pin		2
9	53 33 778 Clip 2002-2006	Clip	2002-2006	2
10	46 99 260 12 768 264 Gas spring 2002-2006	Gas spring	2002-2006	2
11	46 99 286 Support LH	Support	LH	1
11	48 50 327 Support RH	Support	RH	1
12	79 82 176 92 153 218 Screw 2002-2006	Screw	2002-2006	4
13	48 52 513 51 82 993 Support	Support		2
14	79 78 430 92 151 601 Screw 2002-2006	Screw	2002-2006	4
15	48 52 364 Cover	Cover		2
16	48 52 356 Cover	Cover		2
17	51 12 073 Draining plug	Draining plug		3
18	43 33 480 90 242 083 Plug	Plug		2
19	73 98 886 92 152 133 Plug	Plug		1
21	48 09 190 Motor 2002-2005	Motor	2002-2005	1
21	49 47 693 Motor 2002-2005, LHD	Motor	2002-2005, LHD	1
22	79 71 823 Screw 2002-2006	Screw	2002-2006	3
23	46 99 534 Rod	Rod		1
24	46 99 542 Rod -2002	Rod	-2002	1
25	46 99 559 Rod -2003	Rod	-2003	1
26	46 99 567 Rod	Rod		1
27	53 36 300 Pivot arm -2003	Pivot arm	-2003	1
28	48 59 344 Clip	Clip		1
29	Lock cylinderBonnet, front, wings 2002-2003 • Chassis No.: --33026906, --33026906	Lock cylinderBonnet, front, wings 2002-2003 • Chassis No.: --33026906, --33026906
29A	79 71 658 11 900 428 Nut	Nut		2
29B	43 27 300 400126561 Microswitch	Microswitch		1
29C	48 54 683 Sealing ring	Sealing ring		1
29D	43 46 110 Clip	Clip		1
30	46 99 518 Lock -2002	Lock	-2002	1
31	97 82 566 Clamp	Clamp		X
30	53 60 847 Lock 2002-2005	Lock	2002-2005	1
32	92 152 130 Screw 2002-2005	Screw	2002-2005	4
33	51 82 134 Striker 2002-2005	Striker	2002-2005	1
34	92 152 010 Screw	Screw		2
36	46 99 898 Outside handle 2002-2005	Outside handle	2002-2005	1
36A	51 17 197 Seal 2002-2005	Seal	2002-2005	2
36B	95 12 880 93 190 471 Bulb 2002-2005	Bulb	2002-2005	2
36C	51 17 205 Seal 2002-2005	Seal	2002-2005	1
36D	51 17 189 Lens 2002-2005	Lens	2002-2005	2
36E	49 40 284 Screw 2002-2005	Screw	2002-2005	2
37	48 59 344 Clip 2002-2005	Clip	2002-2005	1
38	51 11 950 Clip 2002-2005	Clip	2002-2005	2
39	79 78 430 92 151 601 Screw 2002-2005	Screw	2002-2005	2
39A	79 77 929 11 900 451 Nut 2002-2005	Nut	2002-2005	2
40	49 15 773 Cover -2004 • LH	Cover	-2004 LH	1
40	49 15 781 Cover -2004 • RH	Cover	-2004 RH	1
41	49 15 799 Cover -2004 • Upper	Cover	-2004 Upper	1
42	49 14 586 Cover -2004	Cover	-2004	8
43	49 40 557 92 152 026 Screw -2004	Screw	-2004	4
44	46 98 098 Press nut -2004	Press nut	-2004	4
45	79 77 929 11 900 451 Nut -2004	Nut	-2004	4
46	48 23 845 Opening handle -2002 • Grey	Opening handle	-2002 Grey	1
46	48 23 902 Opening handle -2002 • Light beige	Opening handle	-2002 Light beige	1
47	48 23 852 Frame -2002 • Grey	Frame	-2002 Grey	1
47	48 23 910 Frame -2002 • Light beige	Frame	-2002 Light beige	1
48	79 78 430 92 151 601 Screw -2002	Screw	-2002	6
50	54 09 651 Bracket	Bracket		1
50	54 09 669 12 786 338 Bracket	Bracket		1
51	79 78 430 92 151 601 Screw	Screw		2
52	48 22 417 12 798 741 Ring	Ring		1
53	54 09 321 53 37 118 Decor panel -2003	Decor panel	-2003	1
55	79 77 929 11 900 451 Nut	Nut		3
56	54 95 676 Cover 2002-2005	Cover	2002-2005	1
	49 59 565 Mounting kit External details license plate	Mounting kit External details	license plate	1
	51 41 932 Mounting kit External details -2003 • license plate	Mounting kit External details	-2003 license plate	1
57	12 762 210 Cover	Cover		1
