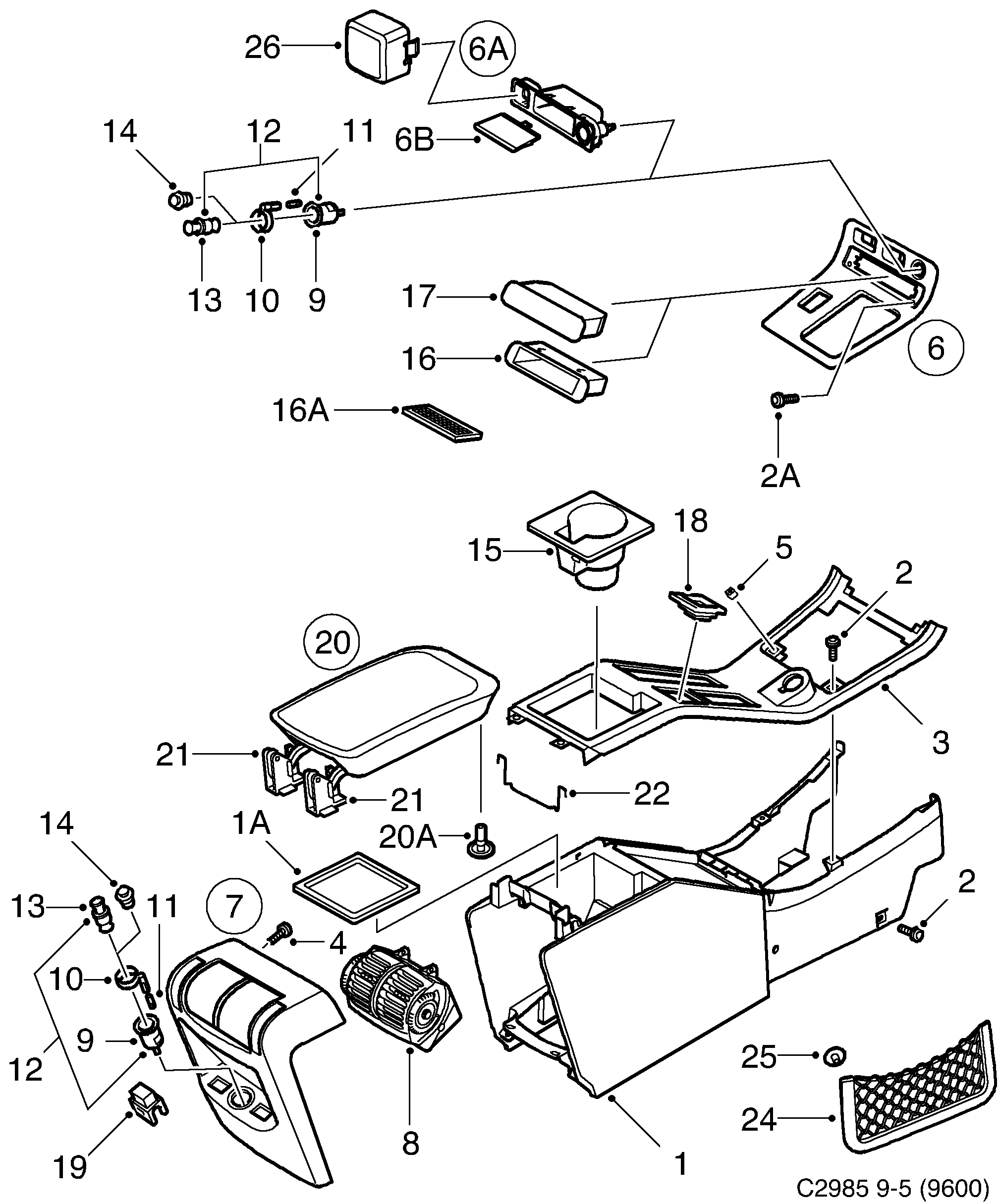

160: Car body, internal - Dashboard - Centre console

(1998 - 2010) | For 9-5 (9600) (2002)

100%

(N°130)

Section 160

(N°180)

Pos.	Part No.	Description	Usage	Qty
1	52 02 874 Centre console 2001-2003 • Light beige	Centre console	2001-2003 Light beige	1
1	52 02 866 Centre console 2001-2003 • Grey	Centre console	2001-2003 Grey	1
1A	46 00 086 Rubber mat	Rubber mat		1
2	92 153 220 Plate screw	Plate screw		10
2A	79 72 979 92 151 995 Screw 2001-2006	Screw	2001-2006	2
3	53 37 894 Cover -2003, LHD • (4600292) \| Grey On...	Cover	-2003, LHD (4600292) \| Grey On...	1
3	53 37 902 Cover -2003, RHD • (4709515) \| Grey On...	Cover	-2003, RHD (4709515) \| Grey On...	1
4	55 52 781 12 780 283 Screw 1998-2006	Screw	1998-2006	1
5	46 85 152 Clip	Clip		2
6	50 15 748 Cover 1998-2005, LHD	Cover	1998-2005, LHD	1
6	50 15 755 Cover 1998-2005, RHD	Cover	1998-2005, RHD	1
6	50 18 197 Cover 1999-2005, LHD • wood Red Walnut	Cover	1999-2005, LHD wood Red Walnut	1
6	52 01 470 Cover 2002-2002, LHD • wood Light walnut	Cover	2002-2002, LHD wood Light walnut	1
6	52 07 717 Cover 2002-2005, LHD • wood Light walnut	Cover	2002-2005, LHD wood Light walnut	1
6	52 01 223 Cover 2002-2005, LHD • Aluminium-like appearance.	Cover	2002-2005, LHD Aluminium-like appearance.	1
6	52 09 655 400112645 Cover 2002-2005, LHD • carbon fibre	Cover	2002-2005, LHD carbon fibre	1
6	50 18 205 Cover 1999-2003, RHD • wood Dark Walnut (Black)	Cover	1999-2003, RHD wood Dark Walnut (Black)	1
6	52 03 732 Cover 2002-2002, RHD • wood Light walnut	Cover	2002-2002, RHD wood Light walnut	1
6	52 07 741 Cover 2002-2005, RHD • wood Light walnut	Cover	2002-2005, RHD wood Light walnut	1
6	52 01 249 Cover 2002-2005, RHD • Aluminium-like appearance.	Cover	2002-2005, RHD Aluminium-like appearance.	1
6	52 09 663 Cover 2002-2005, RHD • carbon fibre	Cover	2002-2005, RHD carbon fibre	1
9	50 14 246 Cigarette lighter socket 1998-	Cigarette lighter socket	1998-	1
10	50 14 253 Light guide 1998-2005	Light guide	1998-2005	1
11	12 798 389 93 190 474 Bulb	Bulb		1
7	50 15 805 Cover 1998-2003 • Grey	Cover	1998-2003 Grey	1
7	55 50 959 Cover 1998-2010 • Black	Cover	1998-2010 Black	1
8	Air outletHeating and ventilation	Air outletHeating and ventilation			1
13	50 14 279 12 785 424 Lighter unit 1998-2009	Lighter unit	1998-2009	1
14	51 71 889 12 785 425 Cover 1999-2009	Cover	1999-2009	2
15	400126199 Cup holder	Cup holder		1
15	47 49 891 400126199 Holder 1998-2007	Holder	1998-2007	1
16	46 00 250 Storage tray 1998-2005	Storage tray	1998-2005	1
16A	47 47 853 Rubber mat 1998-2005	Rubber mat	1998-2005	1
17	53 31 251 Ashtray 2000-2005	Ashtray	2000-2005	1
17	53 31 269 Ashtray 2000-2005 • See WIS/SI 855-2272 US,...	Ashtray	2000-2005 See WIS/SI 855-2272 US,...	1
17	52 03 724 Ashtray 2002-2002 • See WIS/SI 855-2272 US,...	Ashtray	2002-2002 See WIS/SI 855-2272 US,...	1
17	52 07 758 Ashtray 2002-, LHD • See WIS/SI 855-2272 US,...	Ashtray	2002-, LHD See WIS/SI 855-2272 US,...	1
17	52 01 207 Ashtray 2002-2004 • See WIS/SI 855-2272 US,...	Ashtray	2002-2004 See WIS/SI 855-2272 US,...	1
17	53 31 277 Ashtray 2000-2004 • See WIS/SI 855-2272 US,...	Ashtray	2000-2004 See WIS/SI 855-2272 US,...	1
18	47 41 815 Coin holder 1998-2003 • Grey On cars with...	Coin holder	1998-2003 Grey On cars with...	1
19	48 15 890 Blind knob 1998-2003 • Grey	Blind knob	1998-2003 Grey	2
20	52 01 322 Arm rest 2002-2005 • Trim colour L15 \|...	Arm rest	2002-2005 Trim colour L15 \|...	1
20	52 01 330 Arm rest 2002-2005 • TRIM COLOUR K15 \|...	Arm rest	2002-2005 TRIM COLOUR K15 \|...	1
20	52 01 389 Arm rest 2002-2005 • Trim colour L15 \|...	Arm rest	2002-2005 Trim colour L15 \|...	1
20	52 01 397 Arm rest 2002-2005 • TRIM COLOUR K15 \|...	Arm rest	2002-2005 TRIM COLOUR K15 \|...	1
20	52 01 405 Arm rest 2002-2004 • TRIM COLOUR L08, L10,...	Arm rest	2002-2004 TRIM COLOUR L08, L10,...	1
20	52 01 413 Arm rest 2002-2003 • TRIM COLOUR K08, K10,...	Arm rest	2002-2003 TRIM COLOUR K08, K10,...	1
20A	45 18 668 Rubber damper	Rubber damper		2
21	48 48 313 Hinge LH	Hinge	LH	1
21	48 48 321 Hinge RH	Hinge	RH	1
22	50 11 689 Brace	Brace		1
24	13 120 775 Net	Net		1
25	90 214 832 Clip	Clip		6
