Question 1

Where to find the exploded diagram for Accessories electrical on my Saab 9-5 (9600) 2002?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Accessories electrical on Saab 9-5 (9600) 2002. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Accessories electrical?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Accessories electrical?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (9600) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Accessories electrical, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Accessories electrical suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	400112132 400112595 Installation kit, CD changer 1999-2005	Installation kit, CD changer	1999-2005	1
2	51 00 367 Bracket 1998-	Bracket	1998-	1
3	47 11 297 Bracket	Bracket		2
4	79 77 929 11 900 451 Nut	Nut		X
6	80 59 230 92 151 805 Screw	Screw		4
7	49 46 281 Cover 1998-	Cover	1998-	2
10	400126470 CD changer (400112116) \| Included in...	CD changer	(400112116) \| Included in...	1
11	47 11 255 400110235 CD magazine	CD magazine		1
15	400112595 Installation kit, CD changer	Installation kit, CD changer		1
16	51 00 367 Bracket	Bracket		1
17	47 11 297 Bracket	Bracket		2
18	79 77 929 11 900 451 Nut	Nut		7
19	80 59 230 92 151 805 Screw	Screw		4
20	51 28 038 Cover	Cover		1
24	92 150 191 11 900 513 Tensioning band	Tensioning band		8
25	400112124 Installation kit, CD changer	Installation kit, CD changer		1
26	80 59 230 92 151 805 Screw	Screw		4
27	70 88 073 Washer	Washer		4

Pos.	Part No.	Description	Usage	Qty
1	400112132 400112595 Installation kit, CD changer 1999-2005	Installation kit, CD changer	1999-2005	1
2	51 00 367 Bracket 1998-	Bracket	1998-	1
3	47 11 297 Bracket	Bracket		2
4	79 77 929 11 900 451 Nut	Nut		X
6	80 59 230 92 151 805 Screw	Screw		4
7	49 46 281 Cover 1998-	Cover	1998-	2
10	400126470 CD changer (400112116) \| Included in...	CD changer	(400112116) \| Included in...	1
11	47 11 255 400110235 CD magazine	CD magazine		1
15	400112595 Installation kit, CD changer	Installation kit, CD changer		1
16	51 00 367 Bracket	Bracket		1
17	47 11 297 Bracket	Bracket		2
18	79 77 929 11 900 451 Nut	Nut		7
19	80 59 230 92 151 805 Screw	Screw		4
20	51 28 038 Cover	Cover		1
24	92 150 191 11 900 513 Tensioning band	Tensioning band		8
25	400112124 Installation kit, CD changer	Installation kit, CD changer		1
26	80 59 230 92 151 805 Screw	Screw		4
27	70 88 073 Washer	Washer		4

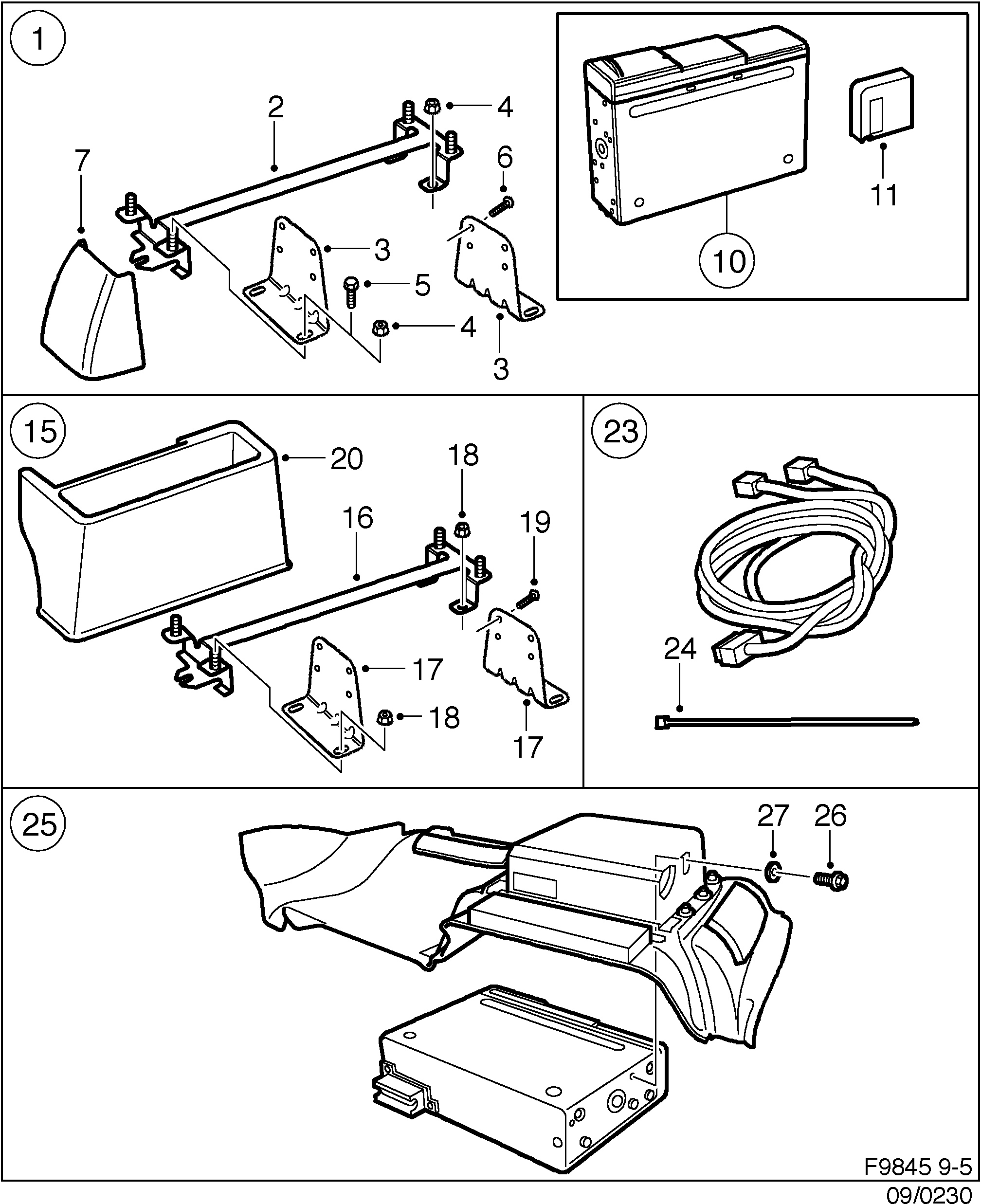

230: Accessories - Accessories electrical - CD-player
