Question 1

Where to find the exploded diagram for Accessories chassis on my Saab 9-5 (9600) 2002?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Accessories chassis on Saab 9-5 (9600) 2002. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Accessories chassis?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Accessories chassis?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (9600) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Accessories chassis, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Accessories chassis suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	400131249 Levelling kit 2002-2005 • Not for cars with...	Levelling kit	2002-2005 Not for cars with...	1
1	400131223 Levelling kit 2002-2005 • Only for cars with...	Levelling kit	2002-2005 Only for cars with...	1
1	400131256 Levelling kit 2002-2005 • Not for cars with...	Levelling kit	2002-2005 Not for cars with...	1
1	400131231 Levelling kit 2002-2005 • Only for cars with...	Levelling kit	2002-2005 Only for cars with...	1
2	400131264 Shock absorber kit Not for cars with...	Shock absorber kit	Not for cars with...	2
2	400131272 Shock absorber kit Only for cars with...	Shock absorber kit	Only for cars with...	2
2	52 38 530 Shock absorber kit Not for cars with...	Shock absorber kit	Not for cars with...	2
2	400131280 Shock absorber kit Only for cars with...	Shock absorber kit	Only for cars with...	2
2	12 764 423 Shock absorber Only for cars with...	Shock absorber	Only for cars with...	2
2	52 37 425 Shock absorber Only for cars with...	Shock absorber	Only for cars with...	2
2	12 764 422 Shock absorber Only for cars with...	Shock absorber	Only for cars with...	2
3	90 495 635 13 104 418 Washer	Washer		1
4	46 87 679 Spacer ring	Spacer ring		1
5	48 35 930 90 539 510 Bellows	Bellows		1
6	45 69 588 Washer	Washer		2
7	81 51 474 92 153 199 Lock nut	Lock nut		1
8	45 65 354 Bump stop	Bump stop		1
9	48 37 035 50 58 326 Bushing	Bushing		1
10	42 46 351 Sleeve	Sleeve		1
11	50 58 318 Bushing	Bushing		1
12	45 65 396 Washer	Washer		1
13	45 66 832 Bushing	Bushing		1
14	50 62 450 Spring Not for cars with...	Spring	Not for cars with...	2
14	400131504 Spring Only for cars with...	Spring	Only for cars with...	2
14	50 62 476 Spring Not for cars with...	Spring	Not for cars with...	2
14	400131512 Spring Only for cars with...	Spring	Only for cars with...	2
14	52 33 051 Spring Only for cars with...	Spring	Only for cars with...	2
14	52 33 093 Spring Only for cars with...	Spring	Only for cars with...	2

Pos.	Part No.	Description	Usage	Qty
1	400131249 Levelling kit 2002-2005 • Not for cars with...	Levelling kit	2002-2005 Not for cars with...	1
1	400131223 Levelling kit 2002-2005 • Only for cars with...	Levelling kit	2002-2005 Only for cars with...	1
1	400131256 Levelling kit 2002-2005 • Not for cars with...	Levelling kit	2002-2005 Not for cars with...	1
1	400131231 Levelling kit 2002-2005 • Only for cars with...	Levelling kit	2002-2005 Only for cars with...	1
2	400131264 Shock absorber kit Not for cars with...	Shock absorber kit	Not for cars with...	2
2	400131272 Shock absorber kit Only for cars with...	Shock absorber kit	Only for cars with...	2
2	52 38 530 Shock absorber kit Not for cars with...	Shock absorber kit	Not for cars with...	2
2	400131280 Shock absorber kit Only for cars with...	Shock absorber kit	Only for cars with...	2
2	12 764 423 Shock absorber Only for cars with...	Shock absorber	Only for cars with...	2
2	52 37 425 Shock absorber Only for cars with...	Shock absorber	Only for cars with...	2
2	12 764 422 Shock absorber Only for cars with...	Shock absorber	Only for cars with...	2
3	90 495 635 13 104 418 Washer	Washer		1
4	46 87 679 Spacer ring	Spacer ring		1
5	48 35 930 90 539 510 Bellows	Bellows		1
6	45 69 588 Washer	Washer		2
7	81 51 474 92 153 199 Lock nut	Lock nut		1
8	45 65 354 Bump stop	Bump stop		1
9	48 37 035 50 58 326 Bushing	Bushing		1
10	42 46 351 Sleeve	Sleeve		1
11	50 58 318 Bushing	Bushing		1
12	45 65 396 Washer	Washer		1
13	45 66 832 Bushing	Bushing		1
14	50 62 450 Spring Not for cars with...	Spring	Not for cars with...	2
14	400131504 Spring Only for cars with...	Spring	Only for cars with...	2
14	50 62 476 Spring Not for cars with...	Spring	Not for cars with...	2
14	400131512 Spring Only for cars with...	Spring	Only for cars with...	2
14	52 33 051 Spring Only for cars with...	Spring	Only for cars with...	2
14	52 33 093 Spring Only for cars with...	Spring	Only for cars with...	2

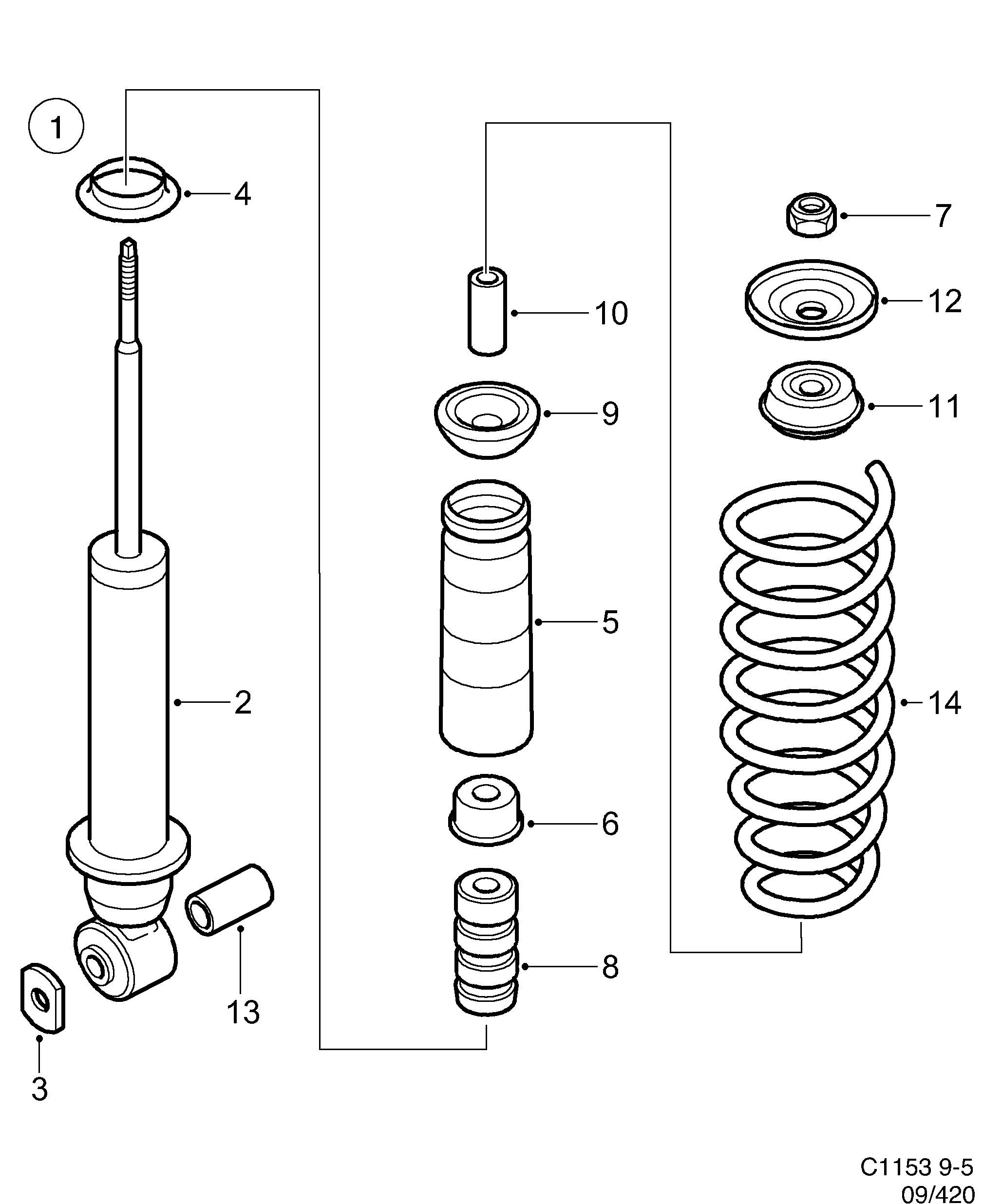

420: Accessories - Accessories chassis - Level control
