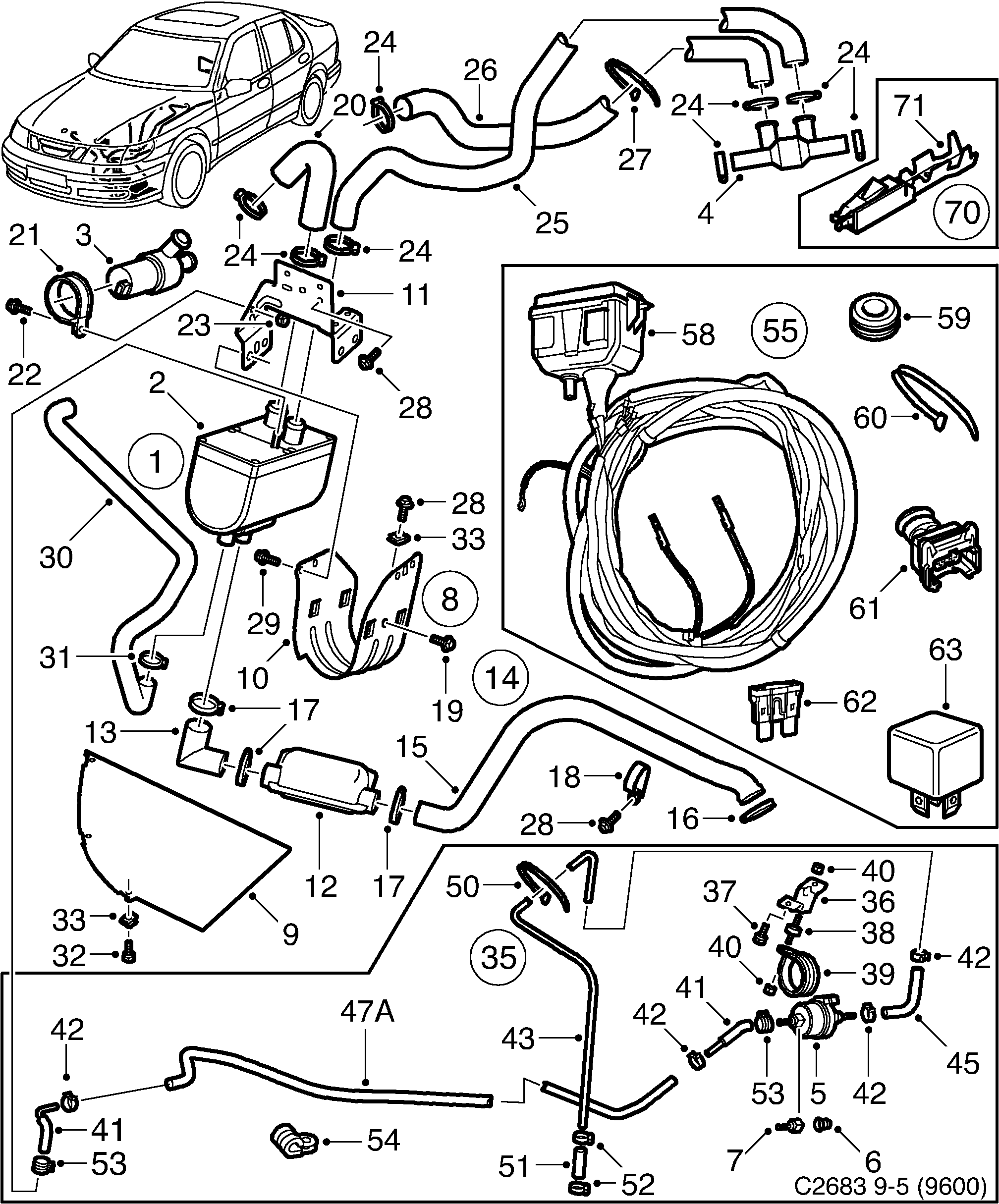

675: Accessories - Accessories body - Climate control - Parking heater
(2002 - 2010 | PETROL) | For 9-5 (9600) (2002)
Not for Bio Power
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 400106621 Supplementary kit, heater B205, B235 | X | |
| 2 | HeaterAccessories body 2002-2006 • PETROL | ||
| 3 | 43 95 612 Circulation pump PETROL | 1 | |
| 4 | 400106829 Non-return valve PETROL | 1 | |
| 5 | 400109260 53 24 850 Fuel pump PETROL | 1 | |
| 6 | 400128823 Strainer PETROL | 1 | |
| 7 | 400128831 Sleeve PETROL | 1 | |
| 8 | 400130217 Basic kit, parking heater 2002-2003 • B205, B235 • Must be fitted in... | X | |
| 9 | 400106852 Mudflap PETROL | 1 | |
| 10 | 400106845 Cradle PETROL | 1 | |
| 11 | 400106837 Bracket PETROL | 1 | |
| 12 | 400106936 Silencer PETROL | 1 | |
| 13 | 400109609 Exhaust pipe PETROL | 1 | |
| 14 | 400109278 Exhaust pipe PETROL | 1 | |
| 15 | 400106894 Exhaust pipe PETROL • Not as separate spare... | 1 | |
| 16 | 400109310 Sleeve PETROL • Not as separate spare... | 1 | |
| 17 | 400109286 Hose clamp PETROL | 3 | |
| 18 | 49 40 995 Clamp PETROL | 2 | |
| 19 | 79 78 091 11 900 353 Screw PETROL | 2 | |
| 20 | 400106886 Hose PETROL | 1 | |
| 21 | 400106910 Clamp PETROL | 1 | |
| 22 | 79 78 133 Screw PETROL | 1 | |
| 23 | 79 77 929 11 900 451 Nut PETROL | 1 | |
| 24 | 79 70 072 Hose clamp PETROL | 8 | |
| 25 | 400130241 Hose B205, B235 | 1 | |
| 26 | 400130233 Hose B205, B235 | 1 | |
| 27 | 92 150 191 11 900 513 Tensioning band PETROL | 2 | |
| 28 | 79 78 638 92 151 885 Screw PETROL | 9 | |
| 29 | 79 78 182 92 150 012 Screw PETROL | 4 | |
| 30 | 400106902 Intake manifold PETROL | 1 | |
| 31 | 79 70 064 Hose clamp PETROL | 1 | |
| 32 | 92 150 118 Screw PETROL | 3 | |
| 33 | 79 67 995 Clip nut PETROL | 4 | |
49 40 441 Hose clamp PETROL | 1 | ||
| 35 | 400126363 Supplementary kit, fuel connection B205, B235 • (400106647) | X | |
| 36 | 400106985 Bracket PETROL | 1 | |
| 37 | 79 78 638 92 151 885 Screw PETROL | 2 | |
| 38 | 42 35 768 92 81 374 Rubber spacer PETROL | 1 | |
| 39 | 400106993 Clamp PETROL | 1 | |
| 40 | 79 77 929 11 900 451 Nut PETROL | 3 | |
| 41 | 400108148 Junction hose PETROL | 2 | |
| 42 | 400110219 Hose clamp PETROL | 4 | |
| 43 | 400106977 Fuel pipe PETROL | 1 | |
| 45 | 400128989 Junction hose PETROL | 1 | |
| 47A | 400112496 Fuel pipe PETROL | 1 | |
| 50 | 92 150 191 11 900 513 Tensioning band PETROL | 11 | |
| 51 | 260312236 Tank connection PETROL | 1 | |
| 52 | 79 73 522 Hose clamp PETROL | 2 | |
| 53 | 79 84 768 Clamp PETROL | 2 | |
| 54 | 79 69 371 85 66 135 Clamp PETROL | 3 | |
| 55 | 400130225 Supplementary kit, cable harness B205, B235 | X | |
| 58 | 400131124 Cable harness PETROL | 1 | |
| 59 | 79 61 329 Bushing PETROL | 2 | |
| 60 | 92 150 191 11 900 513 Tensioning band PETROL | 11 | |
| 61 | 41 78 414 12 790 247 Connector housing PETROL | 1 | |
| 62 | 79 87 373 24 426 656 Fuse PETROL | 1 | |
| 63 | 49 47 115 Relay PETROL | 1 | |
| 71 | 53 51 739 12 789 765 Cable terminal PETROL | 2 |
