Pos.	Part No.	Description	Usage	Qty
1	47 26 568 Charge air cooler D308L	Charge air cooler	D308L	1
2	51 25 927 Hose clamp D308L	Hose clamp	D308L	2
3	53 24 082 Hose D308L	Hose	D308L	1
4	51 25 869 Hose clamp D308L	Hose clamp	D308L	2
5	53 24 090 Pipe D308L	Pipe	D308L	1
6	53 24 108 Hose D308L	Hose	D308L	1
7	54 61 975 Hose 2002- • D308L	Hose	2002- D308L	1
8	51 25 851 12 801 888 Hose clamp D308L	Hose clamp	D308L	3
9	53 24 074 Pipe D308L	Pipe	D308L	1
10	53 24 066 Hose D308L	Hose	D308L	1
11	51 92 497 Pipe D308L	Pipe	D308L	1
12	51 92 489 Hose D308L	Hose	D308L	1
13	53 24 306 Bracket D308L	Bracket	D308L	1
14	79 77 952 11 900 452 Hexagon nut D308L	Hexagon nut	D308L	2
15	43 45 567 90 304 096 Lock nut D308L	Lock nut	D308L	1
16	51 25 901 Hose clamp D308L	Hose clamp	D308L	2
17	51 25 919 Hose clamp D308L	Hose clamp	D308L	1

Pos.	Part No.	Description	Usage	Qty
1	47 26 568 Charge air cooler D308L	Charge air cooler	D308L	1
2	51 25 927 Hose clamp D308L	Hose clamp	D308L	2
3	53 24 082 Hose D308L	Hose	D308L	1
4	51 25 869 Hose clamp D308L	Hose clamp	D308L	2
5	53 24 090 Pipe D308L	Pipe	D308L	1
6	53 24 108 Hose D308L	Hose	D308L	1
7	54 61 975 Hose 2002- • D308L	Hose	2002- D308L	1
8	51 25 851 12 801 888 Hose clamp D308L	Hose clamp	D308L	3
9	53 24 074 Pipe D308L	Pipe	D308L	1
10	53 24 066 Hose D308L	Hose	D308L	1
11	51 92 497 Pipe D308L	Pipe	D308L	1
12	51 92 489 Hose D308L	Hose	D308L	1
13	53 24 306 Bracket D308L	Bracket	D308L	1
14	79 77 952 11 900 452 Hexagon nut D308L	Hexagon nut	D308L	2
15	43 45 567 90 304 096 Lock nut D308L	Lock nut	D308L	1
16	51 25 901 Hose clamp D308L	Hose clamp	D308L	2
17	51 25 919 Hose clamp D308L	Hose clamp	D308L	1

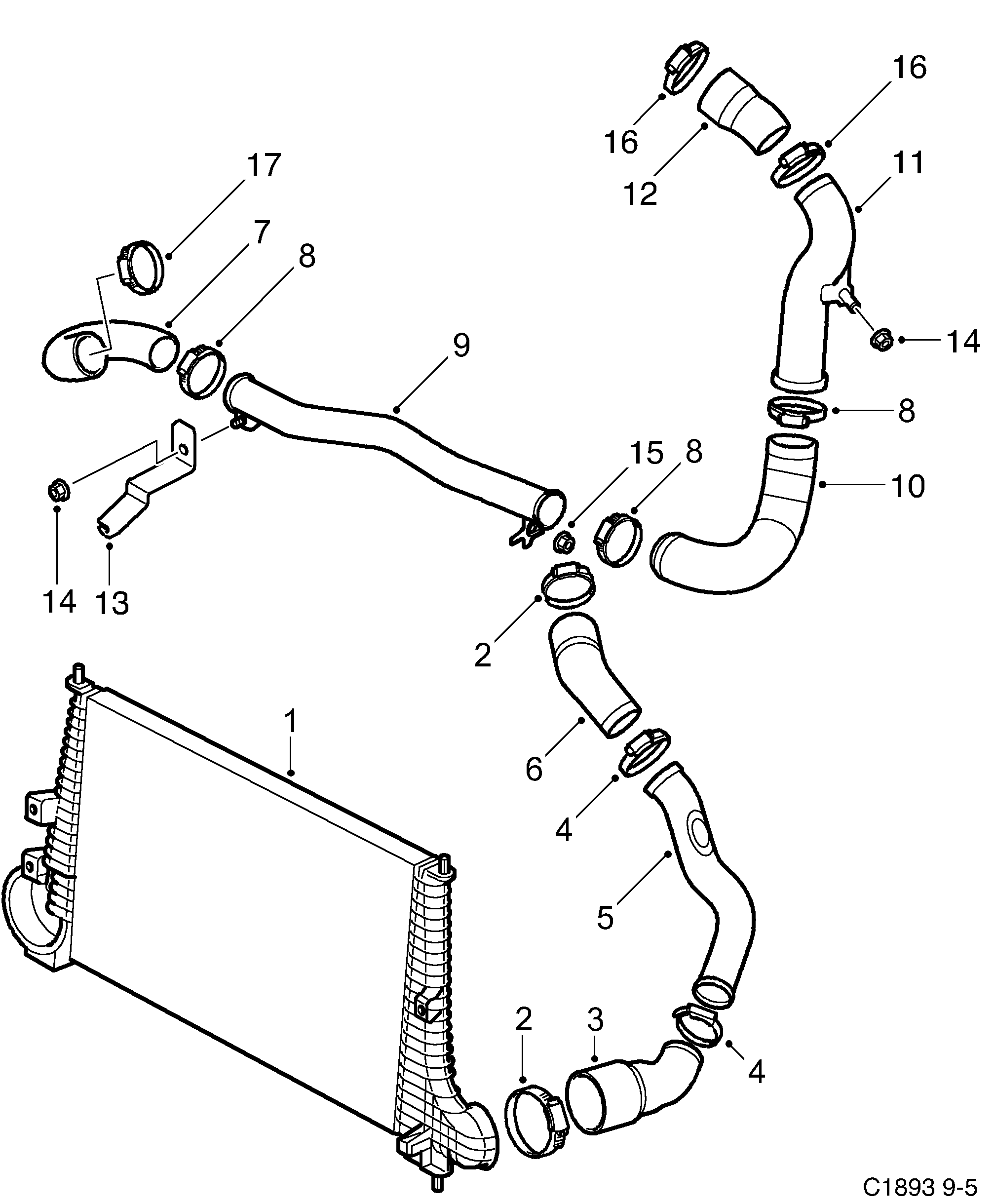

1035: Engine - Cooling system - Charge air cooler
