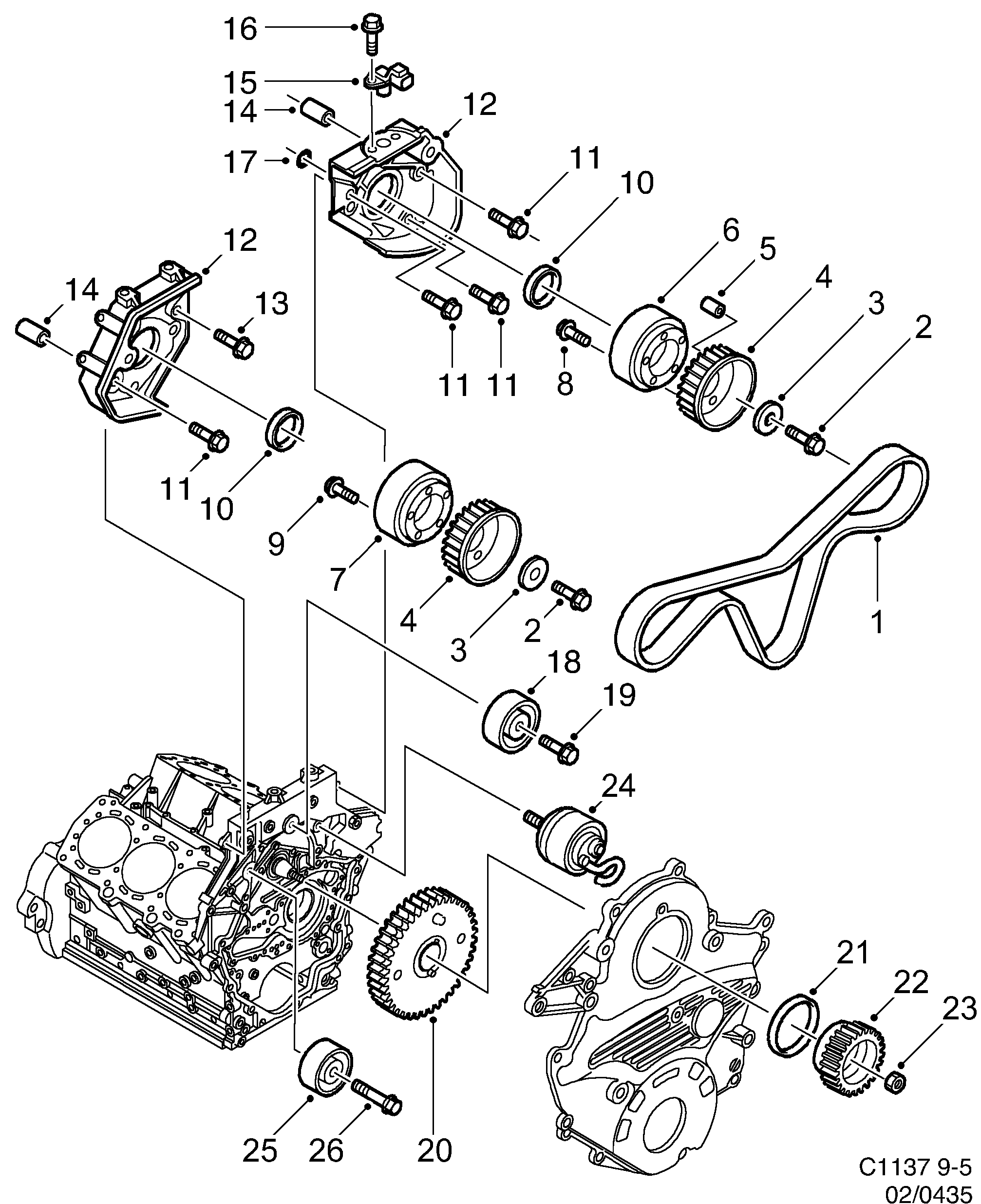

Pos.	Part No.	Description	Usage	Qty
1	59 54 557 Tooth belt D308L	Tooth belt	D308L	1
2	59 54 458 Screw D308L	Screw	D308L	2
3	59 54 466 Washer D308L	Washer	D308L	2
4	59 53 849 Chain gear D308L	Chain gear	D308L	2
5	59 54 565 94 010 219 Sleeve D308L	Sleeve	D308L	1
6	59 54 474 Tension pulley D308L	Tension pulley	D308L	1
7	59 53 856 Flange D308L	Flange	D308L	1
8	59 54 433 97 024 319 Screw D308L	Screw	D308L	5
9	59 54 441 Screw D308L	Screw	D308L	5
10	59 54 391 Sealing plug D308L	Sealing plug	D308L	2
11	59 54 359 Screw D308L	Screw	D308L	9
12	59 54 342 Retainer D308L • LH	Retainer	D308L LH	1
12	59 54 334 Retainer D308L • RH	Retainer	D308L RH	1
13	59 50 423 Screw D308L	Screw	D308L	1
14	59 50 332 Guide sleeve D308L	Guide sleeve	D308L	4
15	59 54 375 Camshaft position sensor D308L	Camshaft position sensor	D308L	1
16	59 51 827 Screw D308L	Screw	D308L	2
17	59 54 417 94 007 637 Sealing ring D308L	Sealing ring	D308L	1
18	59 54 516 Chain gear D308L	Chain gear	D308L	1
19	59 54 532 Screw D308L	Screw	D308L	1
20	59 54 573 Chain gear D308L	Chain gear	D308L	1
21	59 54 425 Seal D308L	Seal	D308L	1
22	59 54 482 Chain gear D308L	Chain gear	D308L	1
23	59 54 490 Nut D308L	Nut	D308L	1
24	97 381 209 Belt tensioner D308L	Belt tensioner	D308L	1
25	59 54 524 Chain gear D308L	Chain gear	D308L	1
26	59 54 540 Screw D308L	Screw	D308L	1
	Timing gear casingShort block D308L	Timing gear casingShort block D308L

Pos.	Part No.	Description	Usage	Qty
1	59 54 557 Tooth belt D308L	Tooth belt	D308L	1
2	59 54 458 Screw D308L	Screw	D308L	2
3	59 54 466 Washer D308L	Washer	D308L	2
4	59 53 849 Chain gear D308L	Chain gear	D308L	2
5	59 54 565 94 010 219 Sleeve D308L	Sleeve	D308L	1
6	59 54 474 Tension pulley D308L	Tension pulley	D308L	1
7	59 53 856 Flange D308L	Flange	D308L	1
8	59 54 433 97 024 319 Screw D308L	Screw	D308L	5
9	59 54 441 Screw D308L	Screw	D308L	5
10	59 54 391 Sealing plug D308L	Sealing plug	D308L	2
11	59 54 359 Screw D308L	Screw	D308L	9
12	59 54 342 Retainer D308L • LH	Retainer	D308L LH	1
12	59 54 334 Retainer D308L • RH	Retainer	D308L RH	1
13	59 50 423 Screw D308L	Screw	D308L	1
14	59 50 332 Guide sleeve D308L	Guide sleeve	D308L	4
15	59 54 375 Camshaft position sensor D308L	Camshaft position sensor	D308L	1
16	59 51 827 Screw D308L	Screw	D308L	2
17	59 54 417 94 007 637 Sealing ring D308L	Sealing ring	D308L	1
18	59 54 516 Chain gear D308L	Chain gear	D308L	1
19	59 54 532 Screw D308L	Screw	D308L	1
20	59 54 573 Chain gear D308L	Chain gear	D308L	1
21	59 54 425 Seal D308L	Seal	D308L	1
22	59 54 482 Chain gear D308L	Chain gear	D308L	1
23	59 54 490 Nut D308L	Nut	D308L	1
24	97 381 209 Belt tensioner D308L	Belt tensioner	D308L	1
25	59 54 524 Chain gear D308L	Chain gear	D308L	1
26	59 54 540 Screw D308L	Screw	D308L	1
	Timing gear casingShort block D308L	Timing gear casingShort block D308L
