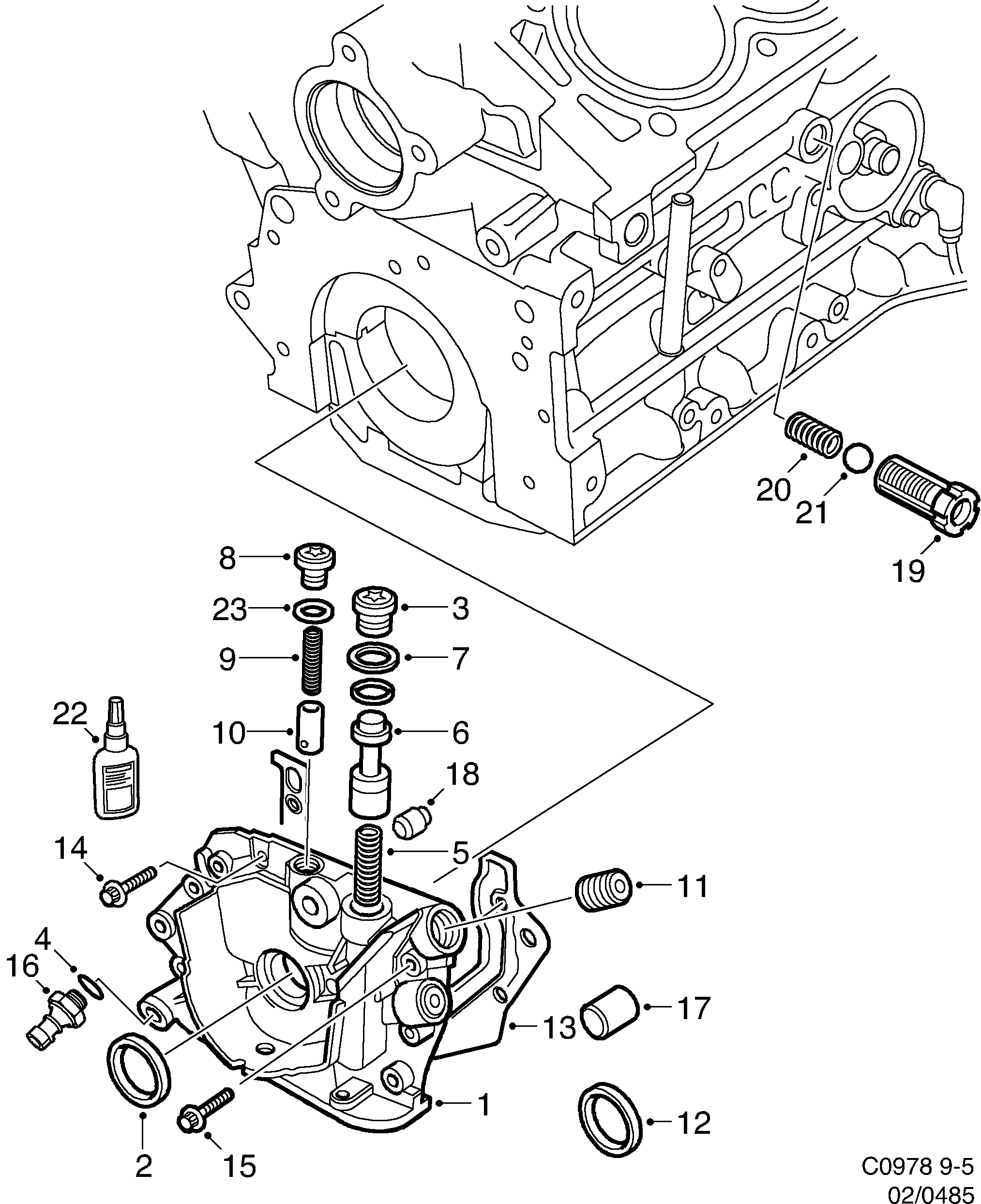

455: Engine - Lubricating system - Oil pump
(1999 - 2003 | B308E) | For 9-5 (9600) (2003)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 47 73 941 91 93 203 Oil pump B308E | 1 | |
| 2 | 90 322 669 Seal B308E • (46 22 296) | 1 | |
| 3 | 55 350 692 Screw plug B308E • (47 73 958) | 1 | |
| 4 | 43 45 716 11 016 282 Sealing ring B308E | 1 | |
| 5 | 47 74 089 90 511 853 Spring B308E | 1 | |
| 6 | 47 74 071 91 18 146 Piston B308E | 1 | |
| 7 | 94 83 645 11 022 571 O-ring B308E | 2 | |
| 8 | 47 74 113 90 511 857 Screw plug B308E | 1 | |
| 9 | 90 511 855 Spring B308E • (47 74 105) | 1 | |
| 10 | 47 74 097 90 511 854 Piston B308E | 1 | |
| 11 | 47 74 055 90 512 410 Screw plug B308E | 1 | |
| 12 | 47 74 063 11 022 579 Sealing ring B308E | 1 | |
| 13 | 47 73 818 55 354 678 Gasket B308E | 1 | |
| 14 | 47 73 925 91 93 904 Screw B308E | 2 | |
| 15 | 43 47 340 11 093 792 Screw B308E | 5 | |
| 16 | 59 62 816 55 354 378 Engine oil pressure sensor 2003-2003 • B308E | 1 | |
| 17 | 45 00 336 90 351 708 Sleeve B308E | 1 | |
| 18 | 47 72 299 90 281 475 Roll pin B308E | 2 | |
| 19 | 45 00 419 90 136 113 By-pass valve B308E | 1 | |
| 20 | 45 00 443 Spring 2000- • B308E | 1 | |
| 21 | 47 74 139 11 055 689 Ball 2000- • B308E | 1 | |
| 22 | 47 71 119 90 542 117 Flange sealant B308E | X | |
| 23 | 95 44 628 11 016 282 Sealing ring B308E | 1 |
