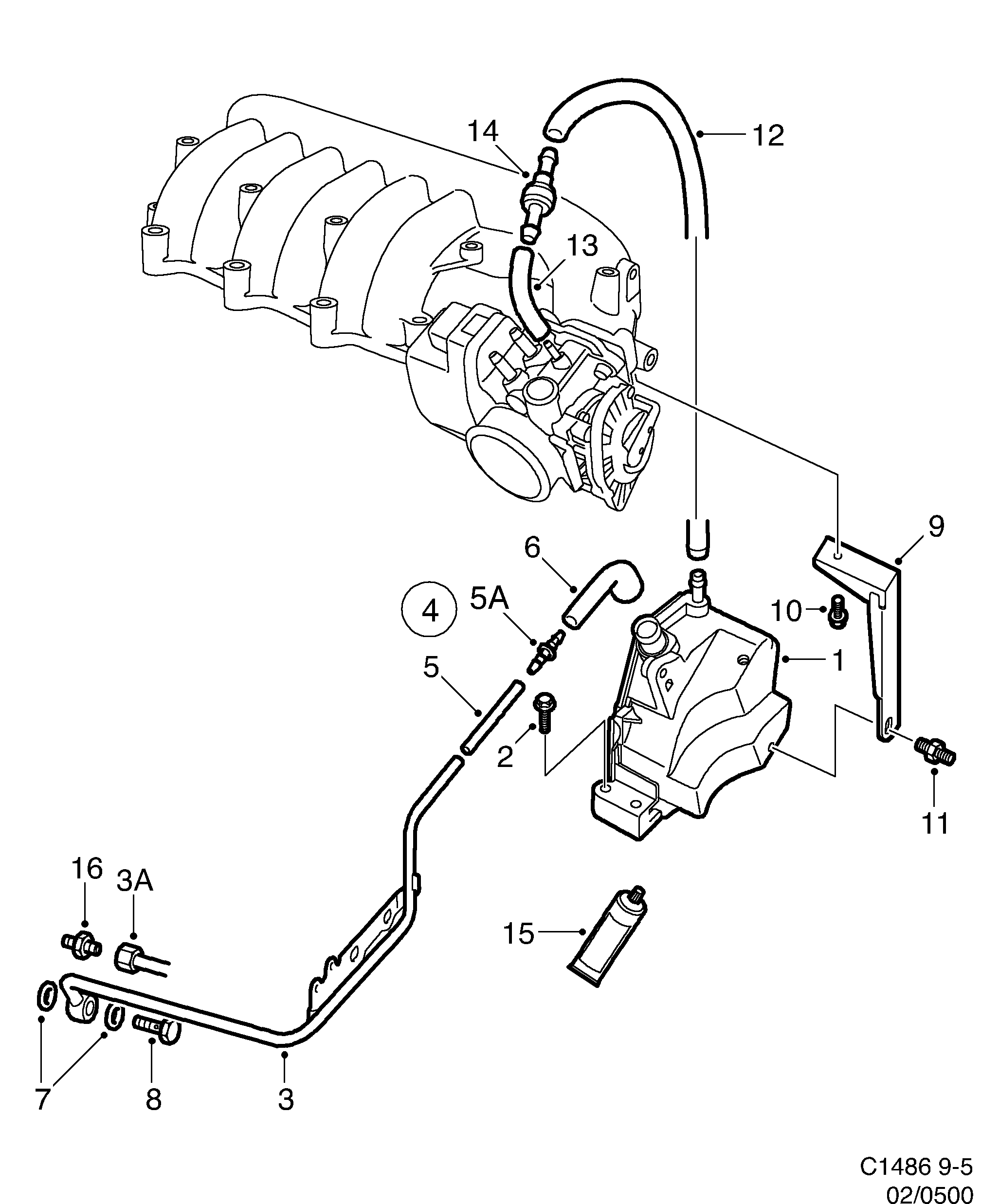

500: Engine - Lubricating system - Crank case ventilation
(1998 - 2003 | B308E) | For 9-5 (9600) (2003)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 91 87 105 90 490 560 Positive crankcase ventilation valve B308E | 1 | |
| 2 | 47 70 020 11 093 953 Screw B308E | 4 | |
| 3A | 91 89 051 Hose 2000- • B308E | 1 | |
| 4 | 91 87 121 90 490 562 Hose B308E | 1 | |
| 5 | 91 87 139 Tube B308E • Not as separate spare... | 1 | |
| 5A | 91 87 147 Nipple B308E • Not as separate spare... | 1 | |
| 6 | 45 27 222 Hose B308E | 1 | |
| 7 | 46 21 413 Sealing ring B308E | 2 | |
| 8 | 46 21 397 90 500 651 Hollow screw B308E | 1 | |
| 9 | 91 87 113 90 490 561 Bracket B308E | 1 | |
| 10 | 45 03 405 11 093 881 Screw B308E | 1 | |
| 11 | 90 325 554 Screw B308E • (47 70 723) | 1 | |
| 12 | 91 82 874 91 36 243 Hose B308E | 1 | |
| 13 | 90 324 140 Hose B308E • (5340336) | 1 | |
| 14 | 91 89 564 Positive crankcase ventilation valve 2001-2003 • B308E | 1 | |
| 15 | 47 70 202 93 165 267 Flange sealant B308E | 1 | |
| 16 | 47 74 022 11 099 072 Nipple 2000- • B308E | 1 |
