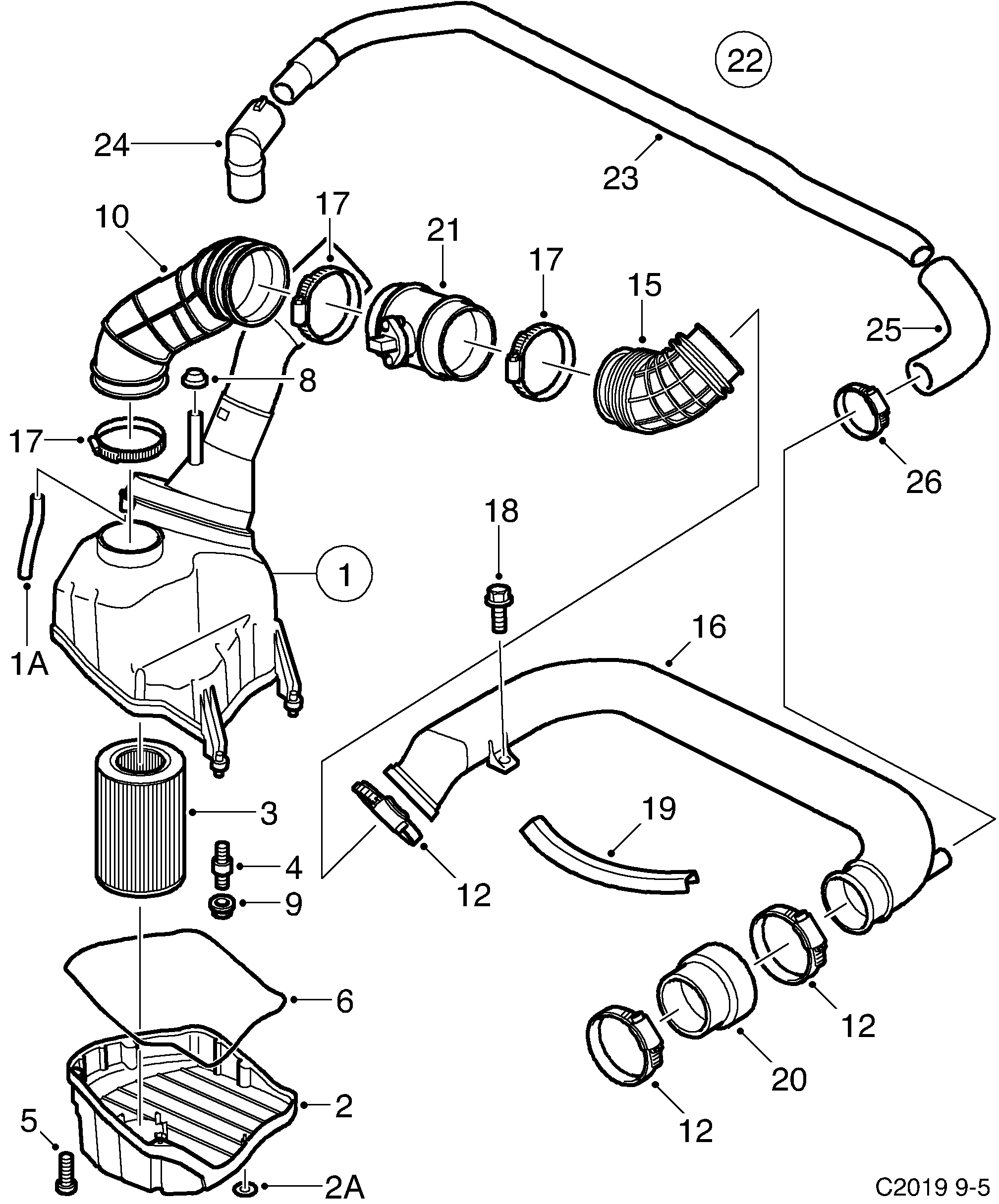

535: Engine - Fuel system - Air cleaner - With water separator
(2003 - 2005 | D308L) | For 9-5 (9600) (2003)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 54 64 086 Air cleaner housing D308L • Assy | 1 | |
54 66 388 Air cleaner housing D308L | 1 | ||
| 1A | 54 65 661 Hose D308L | 1 | |
55 01 044 Hose clamp D308L | 1 | ||
| 2 | 54 65 182 Cover D308L | 1 | |
| 2A | 48 96 577 Diaphragm D308L | 1 | |
| 3 | 54 65 653 Air filter D308L | 1 | |
| 4 | 46 71 863 Rubber spacer D308L | 2 | |
| 5 | 46 71 871 Screw D308L | 5 | |
| 6 | 54 65 208 O-ring D308L | 1 | |
| 8 | 75 12 593 Rubber bushing D308L | 1 | |
| 9 | 43 45 138 11 089 471 Hexagon nut D308L | 2 | |
| 10 | 54 65 786 Hose D308L | 1 | |
| 12 | 51 25 877 Hose clamp D308L | 3 | |
| 15 | 54 64 318 Hose D308L | 1 | |
| 16 | 53 25 709 Pipe D308L | 1 | |
| 17 | 79 70 163 92 150 224 Hose clamp D308L | 3 | |
| 18 | 79 78 190 55 566 034 Screw D308L | 1 | |
| 19 | 54 65 943 32 000 373 Wear protection D308L | 1 | |
| 20 | 53 24 132 Hose D308L | 1 | |
| 21 | 53 42 951 Mass air flow sensor D308L | 1 | |
| 22 | 54 61 868 Pipe D308L | 1 | |
| 23 | 53 41 540 Pipe D308L | 1 | |
| 24 | 53 41 524 Hose D308L | 1 | |
| 25 | 48 97 377 Hose D308L | 1 | |
| 26 | 45 76 583 90 467 194 Hose clamp D308L | 1 |
