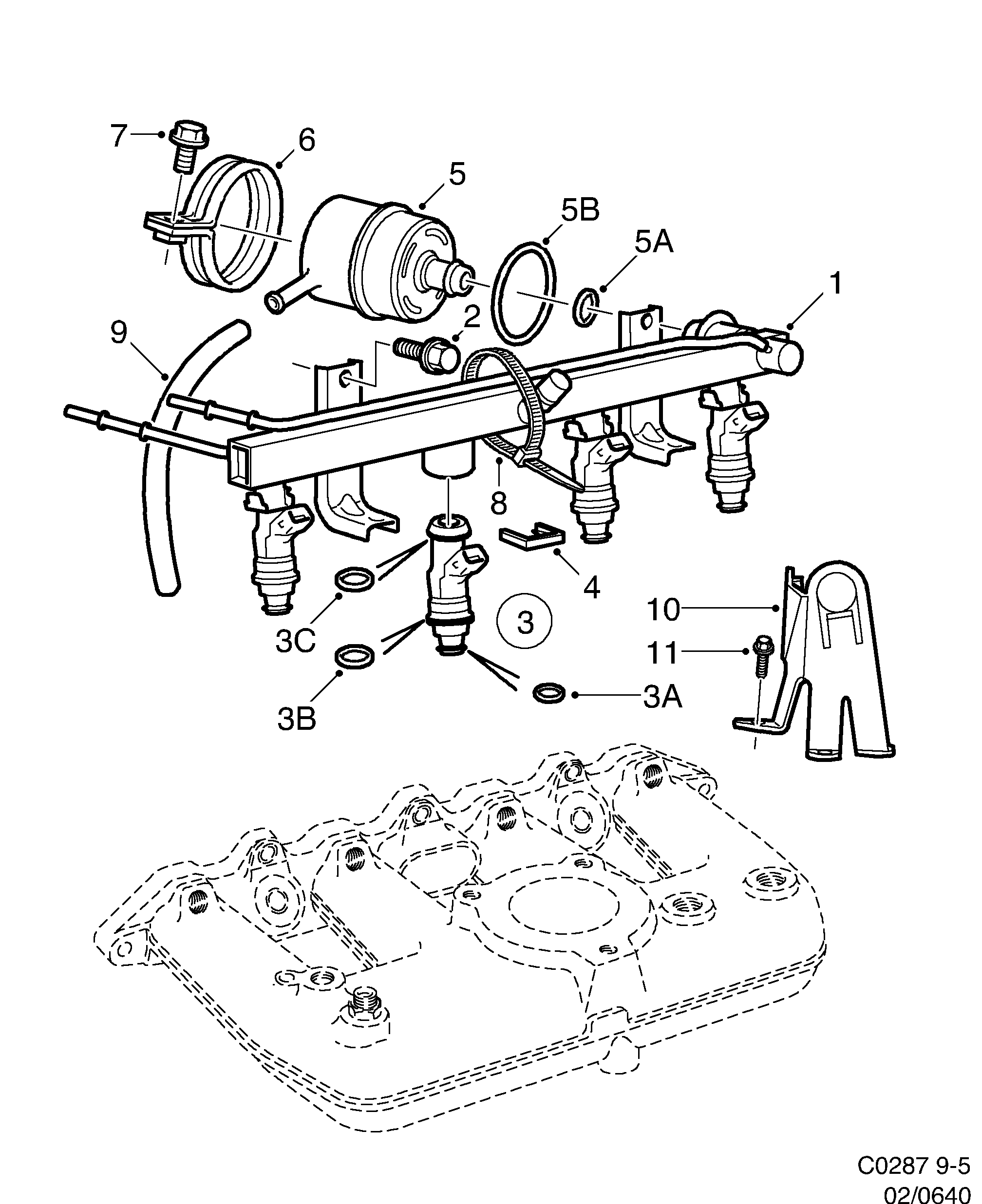

640: Engine - Fuel system - Fuel rail
(1998 - 2010 | PETROL) | For 9-5 (9600) (2003)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 91 87 493 Tube 1998-2005 • B205, B235 | 1 | |
| 2 | 92 150 001 11 900 353 Screw PETROL | 2 | |
| 3 | 91 81 322 55 557 323 Injection valve 2001-2005 • B205E, B235 | 4 | |
| 3 | 91 77 122 Injection valve B205E, B235E • 190 HP | 4 | |
| 3A | 30 580 305 O-ring PETROL • (9197674) | 1 | |
| 3B | 30 580 306 O-ring PETROL | 1 | |
| 3C | 90 541 911 O-ring PETROL | 1 | |
| 4 | 30 588 338 55 559 480 Clamp 2001-2005 • PETROL | 4 | |
| 5 | 47 70 400 Fuel pressure regulator PETROL | 1 | |
| 5 | 94 83 538 91 18 850 Fuel pressure regulator 2001- • B235R | 1 | |
| 5A | 90 511 960 Washer PETROL • (47 70 434) | 1 | |
| 5B | 90 511 961 O-ring PETROL | 1 | |
| 6 | 95 42 424 Clamp 2001- • PETROL | 1 | |
| 7 | 79 78 380 11 900 379 Screw 1998-2005 • PETROL | 1 | |
| 8 | 79 71 872 Tensioning band PETROL | 2 | |
| 9 | 91 36 243 Vacuum hose PETROL • Sold in 5M lengths | 1 | |
| 10 | 55 558 301 Bracket PETROL | 1 | |
| 11 | 79 78 109 11 900 354 Screw PETROL | 3 |
