Question 1

Where to find the exploded diagram for Intake and exhaust system on my Saab 9-5 (9600) 2003?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 9-5 (9600) 2003. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (9600) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1A	93 99 528 59 58 855 Intake manifold 2001-2003 • B205, B235	Intake manifold	2001-2003 B205, B235	1
1A	59 58 855 Intake manifold 2003-2010 • B205, B235	Intake manifold	2003-2010 B205, B235	1
1B	55 557 389 Nipple PETROL	Nipple	PETROL	1
2	11 900 367 Screw 2000-2010 • B235	Screw	2000-2010 B235	8
4	91 80 845 55 557 284 Brace 1998-2005 • PETROL	Brace	1998-2005 PETROL	1
6	91 86 412 55 355 267 Gasket 1998-2005 • PETROL	Gasket	1998-2005 PETROL	1
7	55 562 876 55 566 035 Screw PETROL	Screw	PETROL	2
7	55 566 035 Screw PETROL	Screw	PETROL	2
	81 23 739 Plug PETROL	Plug	PETROL	1
12	55 558 115 Fitting PETROL	Fitting	PETROL	1
13	91 37 993 O-ring PETROL	O-ring	PETROL	1
15	51 25 885 Screw 2002- • PETROL	Screw	2002- PETROL	1
16	91 97 930 90 490 743 Pressure sensor 2001-2005 • PETROL	Pressure sensor	2001-2005 PETROL	1
17	80 59 263 92 150 458 Screw 2001-2005 • PETROL	Screw	2001-2005 PETROL	2

Pos.	Part No.	Description	Usage	Qty
1A	93 99 528 59 58 855 Intake manifold 2001-2003 • B205, B235	Intake manifold	2001-2003 B205, B235	1
1A	59 58 855 Intake manifold 2003-2010 • B205, B235	Intake manifold	2003-2010 B205, B235	1
1B	55 557 389 Nipple PETROL	Nipple	PETROL	1
2	11 900 367 Screw 2000-2010 • B235	Screw	2000-2010 B235	8
4	91 80 845 55 557 284 Brace 1998-2005 • PETROL	Brace	1998-2005 PETROL	1
6	91 86 412 55 355 267 Gasket 1998-2005 • PETROL	Gasket	1998-2005 PETROL	1
7	55 562 876 55 566 035 Screw PETROL	Screw	PETROL	2
7	55 566 035 Screw PETROL	Screw	PETROL	2
	81 23 739 Plug PETROL	Plug	PETROL	1
12	55 558 115 Fitting PETROL	Fitting	PETROL	1
13	91 37 993 O-ring PETROL	O-ring	PETROL	1
15	51 25 885 Screw 2002- • PETROL	Screw	2002- PETROL	1
16	91 97 930 90 490 743 Pressure sensor 2001-2005 • PETROL	Pressure sensor	2001-2005 PETROL	1
17	80 59 263 92 150 458 Screw 2001-2005 • PETROL	Screw	2001-2005 PETROL	2

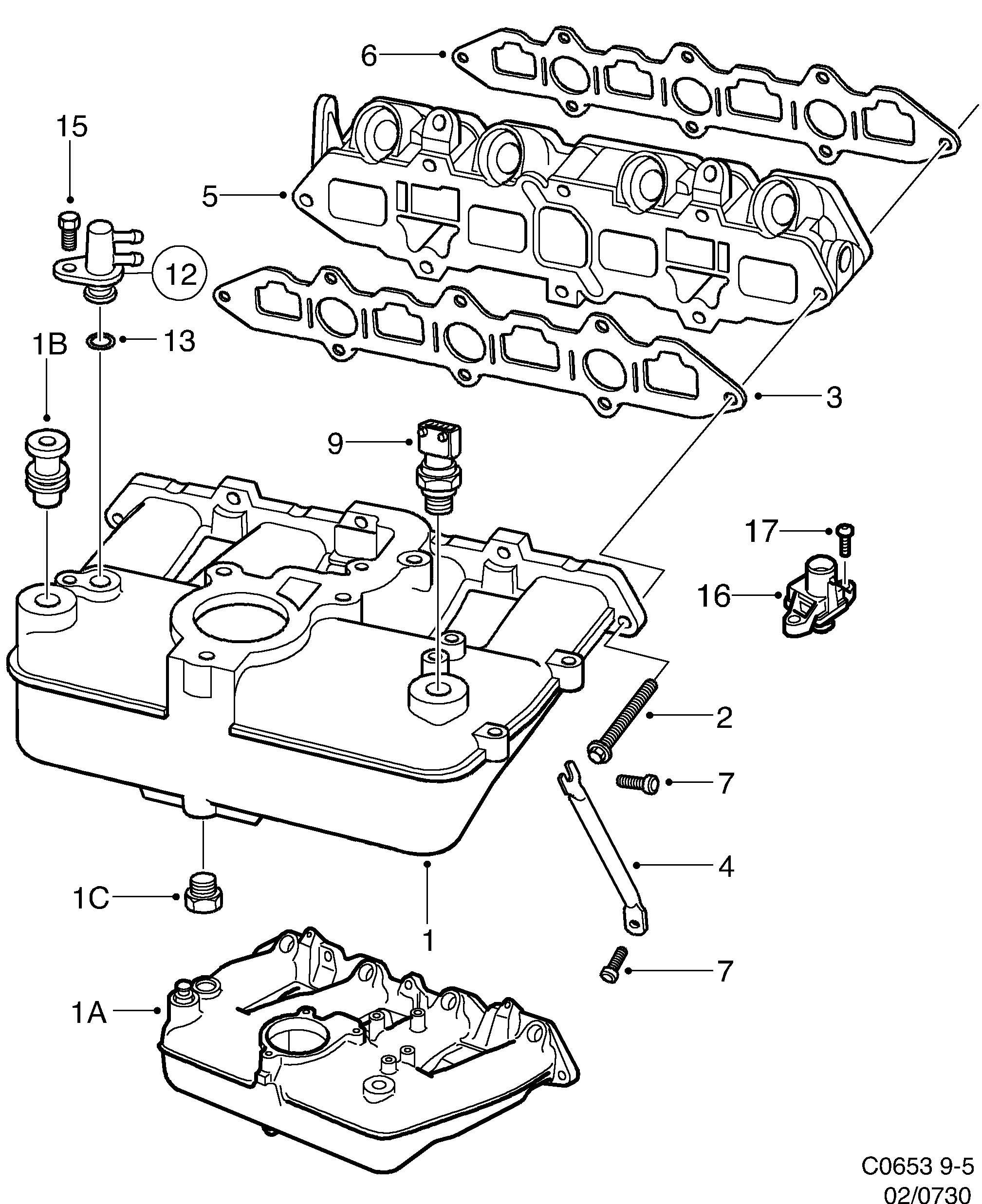

730: Engine - Intake and exhaust system - Intake manifold
