Question 1

Where to find the exploded diagram for Intake and exhaust system on my Saab 9-5 (9600) 2003?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 9-5 (9600) 2003. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (9600) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

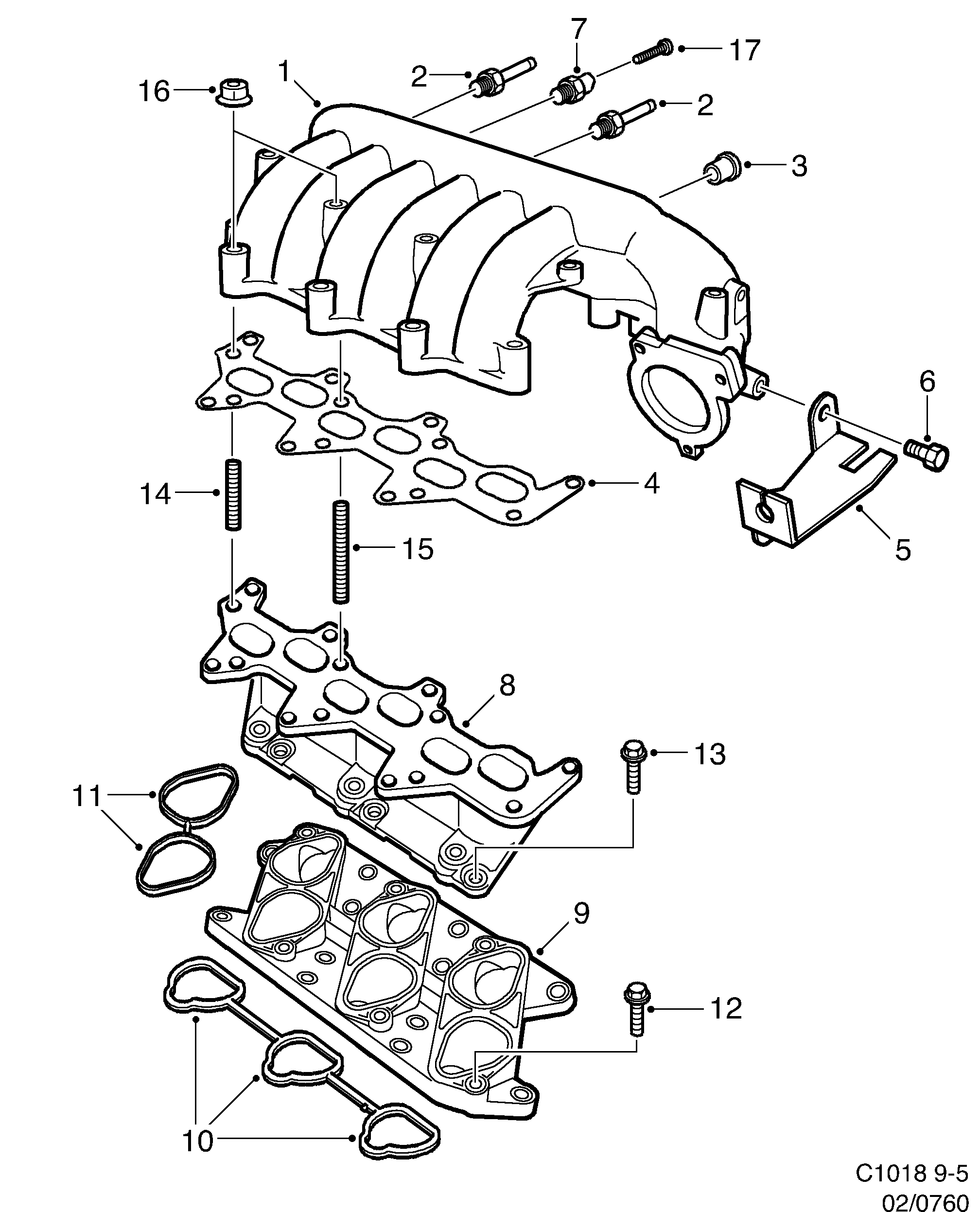

Pos.	Part No.	Description	Usage	Qty
1	91 88 939 90 490 615 Intake manifold 2000- • B308E	Intake manifold	2000- B308E	1
2	91 77 056 90 490 282 Nipple B308E	Nipple	B308E	2
3	91 79 318 55 557 389 Nipple B308E	Nipple	B308E	1
4	45 03 512 90 412 126 Gasket B308E	Gasket	B308E	1
5	59 50 167 Bracket 2002-2003 • B308E	Bracket	2002-2003 B308E	1
6	79 78 109 11 900 354 Screw B308E	Screw	B308E	2
7	91 97 930 90 490 743 Pressure sensor 2000- • B308E	Pressure sensor	2000- B308E	1
8	45 03 850 Intake manifold B308E	Intake manifold	B308E	1
9	46 21 272 90 467 004 Flange B308E	Flange	B308E	1
10	47 70 418 90 501 652 Gasket B308E	Gasket	B308E	2
11	47 70 426 90 501 653 Gasket B308E	Gasket	B308E	3
12	93 175 509 Screw B308E • M8 X 25	Screw	B308E M8 X 25	12
13	47 73 156 11 096 811 Screw B308E • M8 X 20	Screw	B308E M8 X 20	6
14	45 03 868 90 412 461 Stud B308E	Stud	B308E	5
15	91 79 821 90 490 363 Stud B308E	Stud	B308E	2
16	45 03 538 11 082 413 Nut B308E	Nut	B308E	7
17	90 490 746 Screw 2000- • B308E	Screw	2000- B308E	1

Pos.	Part No.	Description	Usage	Qty
1	91 88 939 90 490 615 Intake manifold 2000- • B308E	Intake manifold	2000- B308E	1
2	91 77 056 90 490 282 Nipple B308E	Nipple	B308E	2
3	91 79 318 55 557 389 Nipple B308E	Nipple	B308E	1
4	45 03 512 90 412 126 Gasket B308E	Gasket	B308E	1
5	59 50 167 Bracket 2002-2003 • B308E	Bracket	2002-2003 B308E	1
6	79 78 109 11 900 354 Screw B308E	Screw	B308E	2
7	91 97 930 90 490 743 Pressure sensor 2000- • B308E	Pressure sensor	2000- B308E	1
8	45 03 850 Intake manifold B308E	Intake manifold	B308E	1
9	46 21 272 90 467 004 Flange B308E	Flange	B308E	1
10	47 70 418 90 501 652 Gasket B308E	Gasket	B308E	2
11	47 70 426 90 501 653 Gasket B308E	Gasket	B308E	3
12	93 175 509 Screw B308E • M8 X 25	Screw	B308E M8 X 25	12
13	47 73 156 11 096 811 Screw B308E • M8 X 20	Screw	B308E M8 X 20	6
14	45 03 868 90 412 461 Stud B308E	Stud	B308E	5
15	91 79 821 90 490 363 Stud B308E	Stud	B308E	2
16	45 03 538 11 082 413 Nut B308E	Nut	B308E	7
17	90 490 746 Screw 2000- • B308E	Screw	2000- B308E	1

760: Engine - Intake and exhaust system - Intake manifold
