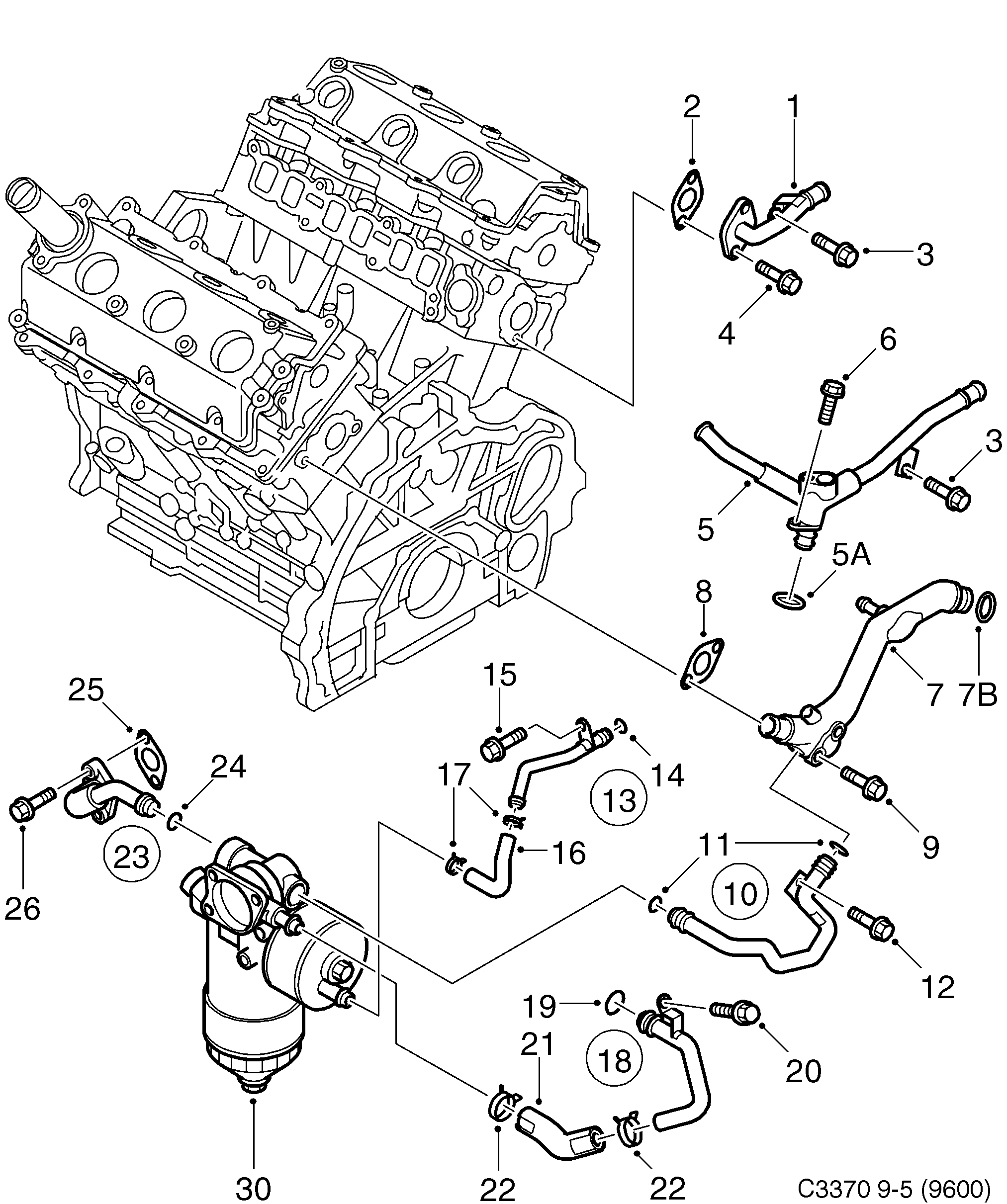

Pos.	Part No.	Description	Usage	Qty
1	59 52 056 Pipe D308L	Pipe	D308L	1
2	59 52 064 Gasket D308L	Gasket	D308L	1
3	59 51 215 Screw D308L	Screw	D308L	2
4	59 52 080 Screw D308L	Screw	D308L	2
5	59 52 098 Tube D308L	Tube	D308L	1
5A	94 011 614 Seal D308L	Seal	D308L	1
6	59 51 827 Screw D308L	Screw	D308L	1
7	32 000 284 97 324 029 Tube 2002-2004 • D308L • (5951876)	Tube	2002-2004 D308L (5951876)	1
7B	94 011 611 O-ring D308L	O-ring	D308L	1
8	59 51 298 97 214 907 Seal 2002-2004 • D308L	Seal	2002-2004 D308L	1
9	59 51 165 Screw D308L	Screw	D308L	2
10	59 52 106 Tube D308L	Tube	D308L	1
11	59 56 875 94 011 614 O-ring D308L	O-ring	D308L	2
12	59 51 215 Screw D308L	Screw	D308L	1
13	59 52 395 97 250 658 Tube D308L	Tube	D308L	1
14	59 56 875 94 011 614 O-ring D308L	O-ring	D308L	1
15	59 51 967 Screw D308L	Screw	D308L	1
16	59 52 379 Hose D308L	Hose	D308L	1
17	59 51 231 Hose clamp D308L	Hose clamp	D308L	2
18	59 52 114 Tube D308L	Tube	D308L	1
19	59 56 875 94 011 614 O-ring D308L	O-ring	D308L	1
20	59 52 189 Screw D308L	Screw	D308L	1
21	59 52 387 Hose D308L	Hose	D308L	1
22	59 51 231 Hose clamp D308L	Hose clamp	D308L	2
23	59 52 403 Tube D308L	Tube	D308L	1
24	59 56 883 O-ring D308L	O-ring	D308L	1
25	59 52 221 Gasket D308L	Gasket	D308L	1
26	59 51 165 Screw D308L	Screw	D308L	2
30	Oil filterShort block D308L	Oil filterShort block D308L

Pos.	Part No.	Description	Usage	Qty
1	59 52 056 Pipe D308L	Pipe	D308L	1
2	59 52 064 Gasket D308L	Gasket	D308L	1
3	59 51 215 Screw D308L	Screw	D308L	2
4	59 52 080 Screw D308L	Screw	D308L	2
5	59 52 098 Tube D308L	Tube	D308L	1
5A	94 011 614 Seal D308L	Seal	D308L	1
6	59 51 827 Screw D308L	Screw	D308L	1
7	32 000 284 97 324 029 Tube 2002-2004 • D308L • (5951876)	Tube	2002-2004 D308L (5951876)	1
7B	94 011 611 O-ring D308L	O-ring	D308L	1
8	59 51 298 97 214 907 Seal 2002-2004 • D308L	Seal	2002-2004 D308L	1
9	59 51 165 Screw D308L	Screw	D308L	2
10	59 52 106 Tube D308L	Tube	D308L	1
11	59 56 875 94 011 614 O-ring D308L	O-ring	D308L	2
12	59 51 215 Screw D308L	Screw	D308L	1
13	59 52 395 97 250 658 Tube D308L	Tube	D308L	1
14	59 56 875 94 011 614 O-ring D308L	O-ring	D308L	1
15	59 51 967 Screw D308L	Screw	D308L	1
16	59 52 379 Hose D308L	Hose	D308L	1
17	59 51 231 Hose clamp D308L	Hose clamp	D308L	2
18	59 52 114 Tube D308L	Tube	D308L	1
19	59 56 875 94 011 614 O-ring D308L	O-ring	D308L	1
20	59 52 189 Screw D308L	Screw	D308L	1
21	59 52 387 Hose D308L	Hose	D308L	1
22	59 51 231 Hose clamp D308L	Hose clamp	D308L	2
23	59 52 403 Tube D308L	Tube	D308L	1
24	59 56 883 O-ring D308L	O-ring	D308L	1
25	59 52 221 Gasket D308L	Gasket	D308L	1
26	59 51 165 Screw D308L	Screw	D308L	2
30	Oil filterShort block D308L	Oil filterShort block D308L
