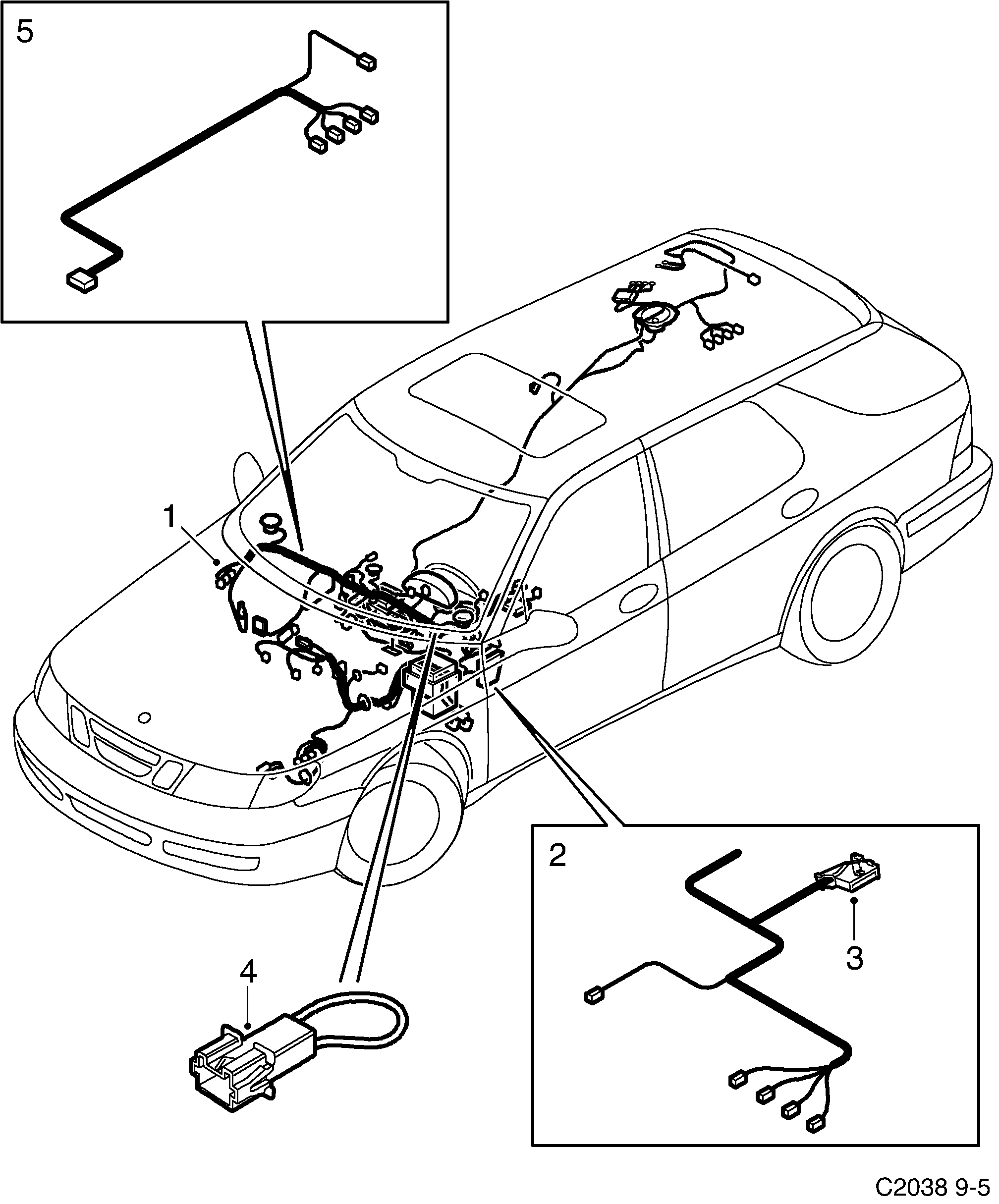

894: Electrical, general - Wiring and fuses - Instrument panel

(2004 - 2005 | 5D) | For 9-5 (9600) (2004)

100%

(N°893)

Section 894

(N°895)

Pos.	Part No.	Description	Usage	Qty
1	54 73 491 Cable harness 2004-2004, LHD • Audio system "Popular", Clarion.	Cable harness	2004-2004, LHD Audio system "Popular", Clarion.	1
1	54 73 632 Cable harness 2004-2004, LHD • For cars with Kenwood...	Cable harness	2004-2004, LHD For cars with Kenwood...	1
1	54 73 533 Cable harness 2004-2004, LHD • D223L, D308L • Audio system "Popular", Clarion.	Cable harness	2004-2004, LHD D223L, D308L Audio system "Popular", Clarion.	1
1	54 73 657 Cable harness 2004-2004, LHD • D223L, D308L • For cars with Kenwood...	Cable harness	2004-2004, LHD D223L, D308L For cars with Kenwood...	1
1	54 73 574 Cable harness 2004-2004, LHD • Audio system "Popular", Clarion.	Cable harness	2004-2004, LHD Audio system "Popular", Clarion.	1
1	54 73 673 Cable harness 2004-2004, LHD • For cars with Kenwood...	Cable harness	2004-2004, LHD For cars with Kenwood...	1
1	54 73 616 Cable harness 2004-2004, LHD • D223L • Audio system "Popular", Clarion.	Cable harness	2004-2004, LHD D223L Audio system "Popular", Clarion.	1
1	54 73 699 Cable harness 2004-2004, LHD • D223L • For cars with Kenwood...	Cable harness	2004-2004, LHD D223L For cars with Kenwood...	1
1	54 73 483 Cable harness 2004-2004, LHD • Audio system "Premium", Pioneer....	Cable harness	2004-2004, LHD Audio system "Premium", Pioneer....	1
1	54 73 525 Cable harness 2004-2004, LHD • D223L, D308L • Audio system "Premium", Pioneer....	Cable harness	2004-2004, LHD D223L, D308L Audio system "Premium", Pioneer....	1
1	54 73 566 Cable harness 2004-2004, LHD • Audio system "Premium", Pioneer....	Cable harness	2004-2004, LHD Audio system "Premium", Pioneer....	1
1	54 73 608 Cable harness 2004-2004, LHD • D223L • Audio system "Premium", Pioneer....	Cable harness	2004-2004, LHD D223L Audio system "Premium", Pioneer....	1
1	54 73 806 Cable harness 2004-2004, RHD • Audio system "Popular", Clarion.	Cable harness	2004-2004, RHD Audio system "Popular", Clarion.	1
1	54 73 947 Cable harness 2004-2004, RHD • For cars with Kenwood...	Cable harness	2004-2004, RHD For cars with Kenwood...	1
1	54 73 848 Cable harness 2004-2004, RHD • D223L, D308L • Audio system "Popular", Clarion.	Cable harness	2004-2004, RHD D223L, D308L Audio system "Popular", Clarion.	1
1	54 73 889 Cable harness 2004-2004, RHD • Audio system "Popular", Clarion.	Cable harness	2004-2004, RHD Audio system "Popular", Clarion.	1
1	54 73 921 Cable harness 2004-2004, RHD • D223L • Audio system "Popular", Clarion.	Cable harness	2004-2004, RHD D223L Audio system "Popular", Clarion.	1
1	54 73 798 Cable harness 2004-2004, RHD • Audio system "Premium", Pioneer....	Cable harness	2004-2004, RHD Audio system "Premium", Pioneer....	1
1	54 73 830 Cable harness 2004-2004, RHD • D223L, D308L • Audio system "Premium", Pioneer....	Cable harness	2004-2004, RHD D223L, D308L Audio system "Premium", Pioneer....	1
1	54 73 962 Cable harness 2004-2004, RHD • D223L, D308L • For cars with Kenwood...	Cable harness	2004-2004, RHD D223L, D308L For cars with Kenwood...	1
1	54 73 871 Cable harness 2004-2004, RHD • Audio system "Premium", Pioneer....	Cable harness	2004-2004, RHD Audio system "Premium", Pioneer....	1
1	54 73 988 Cable harness 2004-2004, RHD • For cars with Kenwood...	Cable harness	2004-2004, RHD For cars with Kenwood...	1
1	54 73 913 Cable harness 2004-2004, RHD • D223L • Audio system "Premium", Pioneer....	Cable harness	2004-2004, RHD D223L Audio system "Premium", Pioneer....	1
1	54 74 002 Cable harness 2004-2004, RHD • D223L • For cars with Kenwood...	Cable harness	2004-2004, RHD D223L For cars with Kenwood...	1
2	55 48 623 Cable harness LHD • Between electronic unit airbag...	Cable harness	LHD Between electronic unit airbag...	1
2	55 48 615 Cable harness RHD • Between electronic unit airbag...	Cable harness	RHD Between electronic unit airbag...	1
3	47 39 462 Cover	Cover		1
	Cable harnessWiring and fuses airbag rear	Cable harnessWiring and fuses airbag rear
4	54 77 054 Cable harness LHD • For cars without ''Clutch...	Cable harness	LHD For cars without ''Clutch...	1
	Airbag moduleDashboard	Airbag moduleDashboard
5	53 57 652 Cable harness 2004-2004, LHD • ONSTAR	Cable harness	2004-2004, LHD ONSTAR	1
