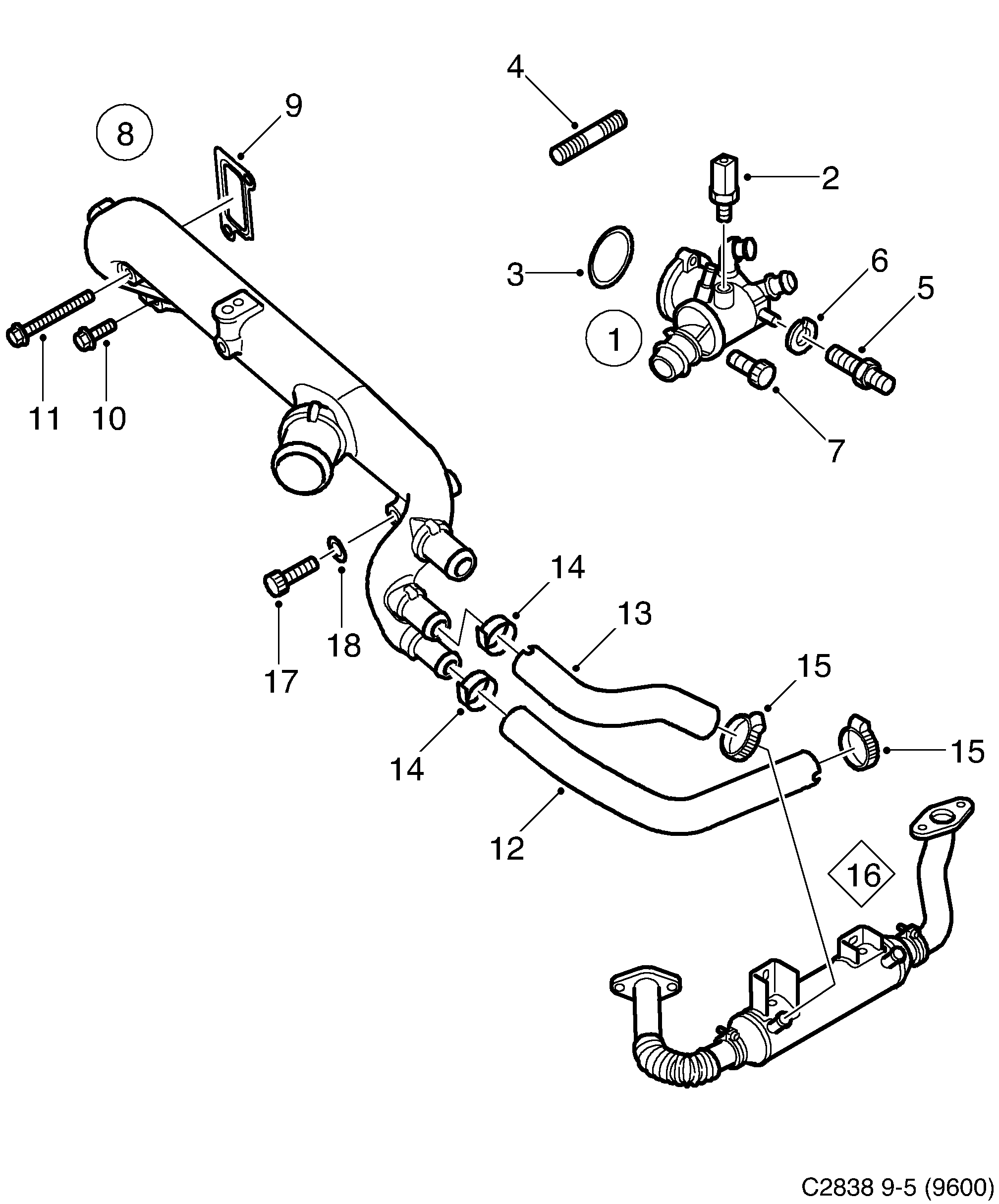

1175: Engine - Cooling system - Thermostat, etc
(2006 - 2010 | Z19DTH) | For 9-5 (9600) (2006)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 55 203 388 Thermostat housing Z19DTH | 1 | |
| 2 | 93 184 155 55 193 203 Engine coolant temperature sensor Z19DTH | 1 | |
| 3 | 93 180 492 Gasket Z19DTH | 1 | |
| 4 | 93 179 141 Stud Z19DTH • M6X12 | 1 | |
| 5 | 93 179 140 Screw Z19DTH | 1 | |
| 6 | 93 178 879 Washer Z19DTH • M6X12 | 1 | |
| 7 | 93 178 829 Screw Z19DTH • M8X25 | 1 | |
| 8 | 55 188 738 Pipe Z19DTH | 1 | |
| 9 | 55 566 010 55 566 106 Gasket 2001- • Z19DTH | 1 | |
| 10 | 12 855 321 Hexagon screw Z19DTH • M6X20 | ||
| 11 | 93 179 088 Screw Z19DTH • M6X55 | ||
| 12 | 55 188 749 Hose Z19DTH | 1 | |
| 13 | 55 188 737 Hose Z19DTH | 1 | |
| 14 | 93 180 491 Hose clamp Z19DTH | 2 | |
| 15 | 93 180 491 Hose clamp Z19DTH | 2 | |
| 16 | Exhaust gas recirculationIntake and exhaust system Z19DTH | 1 | |
| 17 | 12 855 329 93 181 863 Screw 2006-2006 • Z19DTH • M6X50 | 1 | |
| 18 | 93 181 620 Washer Z19DTH • 6X11 | 1 |
