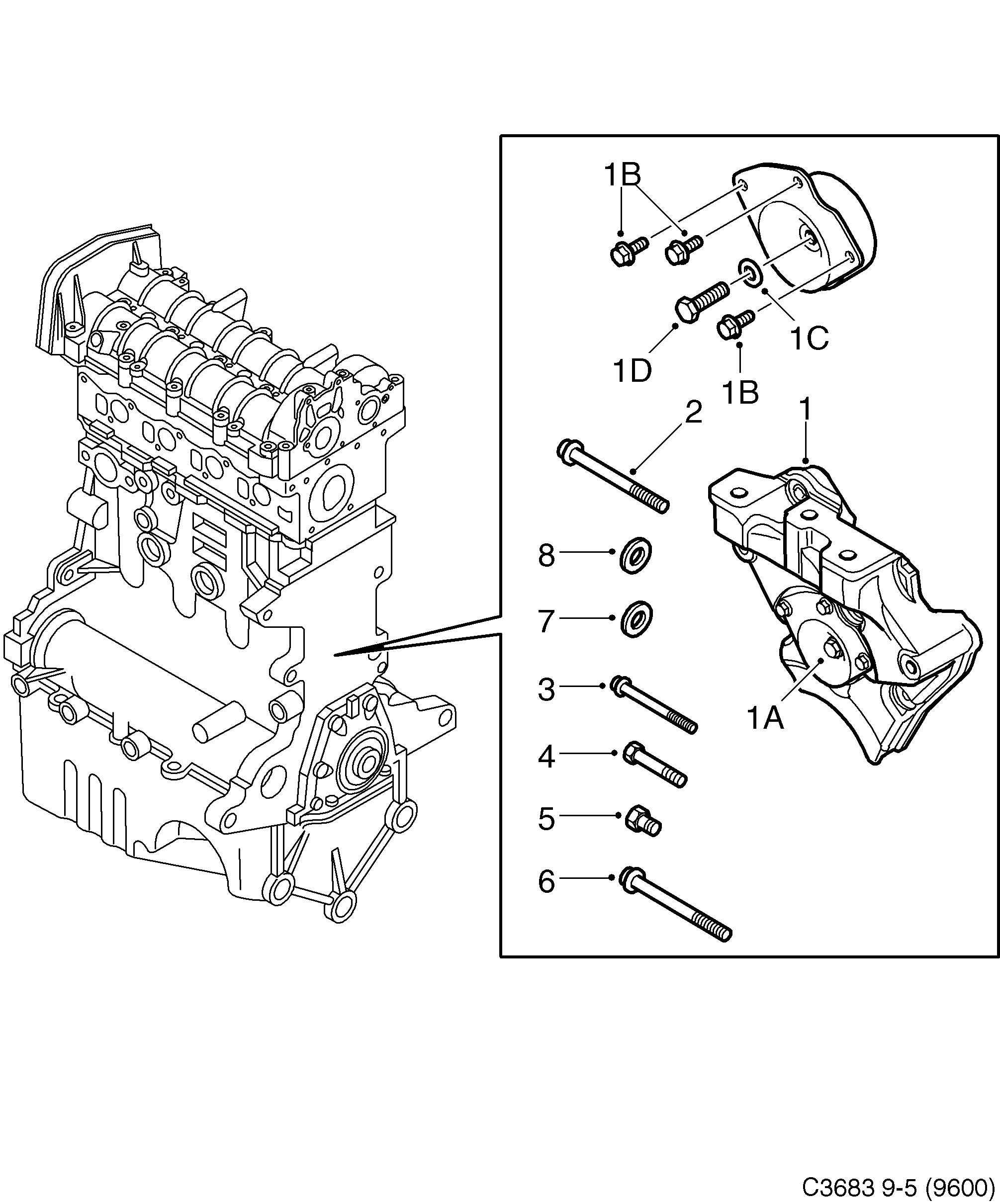

125: Engine - Short block - Engine suspension - Motor
(2006 - 2010 | Z19DTH) | For 9-5 (9600) (2007)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 55 195 991 Bracket Z19DTH | 1 | |
| 1A | 55 195 531 Idler pulley Z19DTH • Tension pulley | 1 | |
| 1B | 93 177 781 Screw Z19DTH | 3 | |
| 1C | 12 855 320 Washer Z19DTH | 1 | |
| 1D | 12 855 337 Hexagon screw Z19DTH | 1 | |
| 2 | 93 180 816 93 178 791 Screw Z19DTH • M10X120 | 1 | |
| 3 | 93 186 775 Hexagon screw Z19DTH • M10X130 | 1 | |
| 4 | 93 186 776 Screw Z19DTH • M8X68 | 1 | |
| 5 | 93 178 185 Screw Z19DTH • M8X35 | 1 | |
| 6 | 93 190 437 Screw 2007-2010 • Z19DTH • M10X100 | 1 | |
| 7 | 93 181 546 Washer Z19DTH | 1 | |
| 8 | 93 181 547 Washer Z19DTH | 1 |
