Question 1

Where to find the exploded diagram for Engine bay cover on my Saab 9-5 (9600) 2007?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Engine bay cover on Saab 9-5 (9600) 2007. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Engine bay cover?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Engine bay cover?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (9600) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Engine bay cover, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Engine bay cover suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

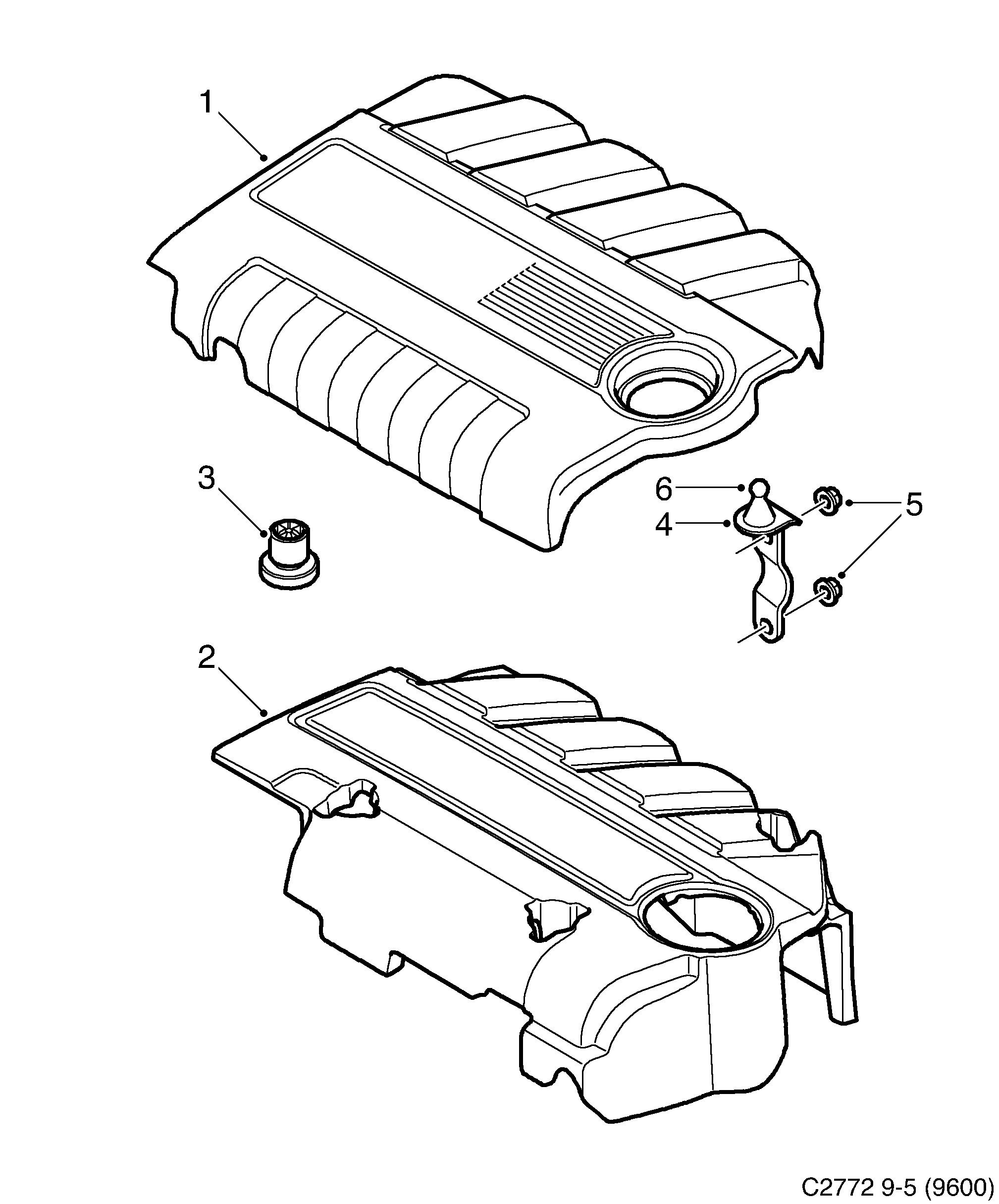

Pos.	Part No.	Description	Usage	Qty
1	55 556 364 Engine cover Z19DTH	Engine cover	Z19DTH	1
2	55 560 862 55 568 726 Insulation 2006-2007 • Z19DTH	Insulation	2006-2007 Z19DTH	1
3	24 453 627 Retainer Z19DTH • Rubber bushing	Retainer	Z19DTH Rubber bushing	4
4	55 353 562 Bracket Z19DTH	Bracket	Z19DTH	1
5	11 900 451 Nut Z19DTH	Nut	Z19DTH	2
6	55 560 110 Ball stud Z19DTH	Ball stud	Z19DTH	4

Pos.	Part No.	Description	Usage	Qty
1	55 556 364 Engine cover Z19DTH	Engine cover	Z19DTH	1
2	55 560 862 55 568 726 Insulation 2006-2007 • Z19DTH	Insulation	2006-2007 Z19DTH	1
3	24 453 627 Retainer Z19DTH • Rubber bushing	Retainer	Z19DTH Rubber bushing	4
4	55 353 562 Bracket Z19DTH	Bracket	Z19DTH	1
5	11 900 451 Nut Z19DTH	Nut	Z19DTH	2
6	55 560 110 Ball stud Z19DTH	Ball stud	Z19DTH	4

1260: Engine - Engine bay cover
