Question 1

Where to find the exploded diagram for Short block on my Saab 9-5 (9600) 2007?

Accepted Answer

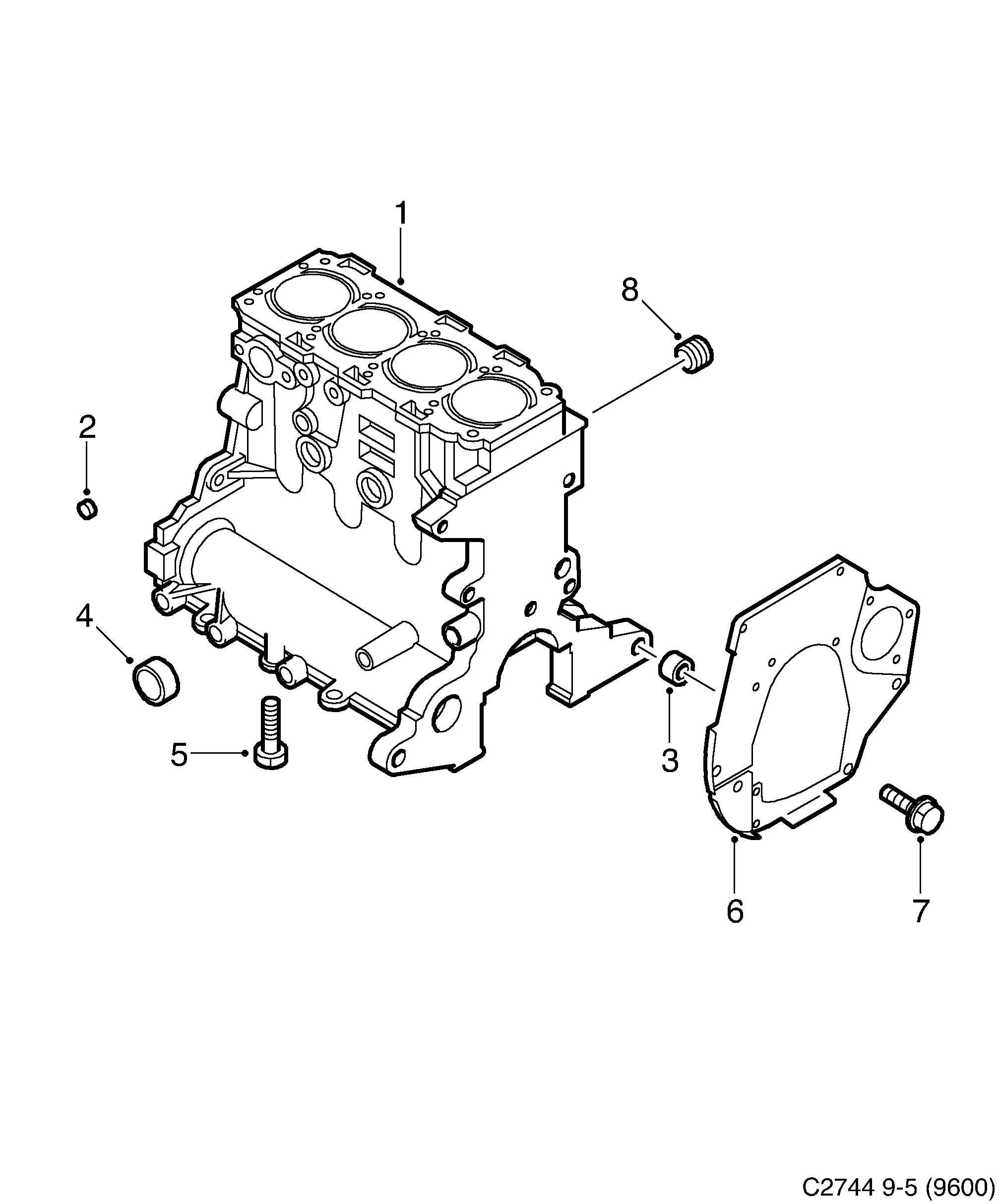

Find on Saabiste.net the complete and official interactive technical diagram for Short block on Saab 9-5 (9600) 2007. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Short block?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Short block?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (9600) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Short block, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Short block suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	Cylinder block Z19DTH • Not as separate spare...	Cylinder block	Z19DTH Not as separate spare...	1
3	12 855 150 Pin 2007-2010 • Z19DTH	Pin	2007-2010 Z19DTH	2
4	93 178 352 Plug, locking Z19DTH • 16 MM	Plug, locking	Z19DTH 16 MM	1
4	93 178 353 Plug, locking Z19DTH • 20 MM	Plug, locking	Z19DTH 20 MM	1
4	93 177 354 Plug, locking Z19DTH • 25 MM	Plug, locking	Z19DTH 25 MM	1
4	93 178 354 Plug, locking Z19DTH • 30 MM	Plug, locking	Z19DTH 30 MM	6
5	93 178 355 Screw Z19DTH • M12X92	Screw	Z19DTH M12X92	10
6	55 563 740 Cover 2007-2010 • Z19DTH	Cover	2007-2010 Z19DTH	1
7	55 228 775 Screw Z19DTH	Screw	Z19DTH	2

Pos.	Part No.	Description	Usage	Qty
1	Cylinder block Z19DTH • Not as separate spare...	Cylinder block	Z19DTH Not as separate spare...	1
3	12 855 150 Pin 2007-2010 • Z19DTH	Pin	2007-2010 Z19DTH	2
4	93 178 352 Plug, locking Z19DTH • 16 MM	Plug, locking	Z19DTH 16 MM	1
4	93 178 353 Plug, locking Z19DTH • 20 MM	Plug, locking	Z19DTH 20 MM	1
4	93 177 354 Plug, locking Z19DTH • 25 MM	Plug, locking	Z19DTH 25 MM	1
4	93 178 354 Plug, locking Z19DTH • 30 MM	Plug, locking	Z19DTH 30 MM	6
5	93 178 355 Screw Z19DTH • M12X92	Screw	Z19DTH M12X92	10
6	55 563 740 Cover 2007-2010 • Z19DTH	Cover	2007-2010 Z19DTH	1
7	55 228 775 Screw Z19DTH	Screw	Z19DTH	2

210: Engine - Short block - Cylinder block
