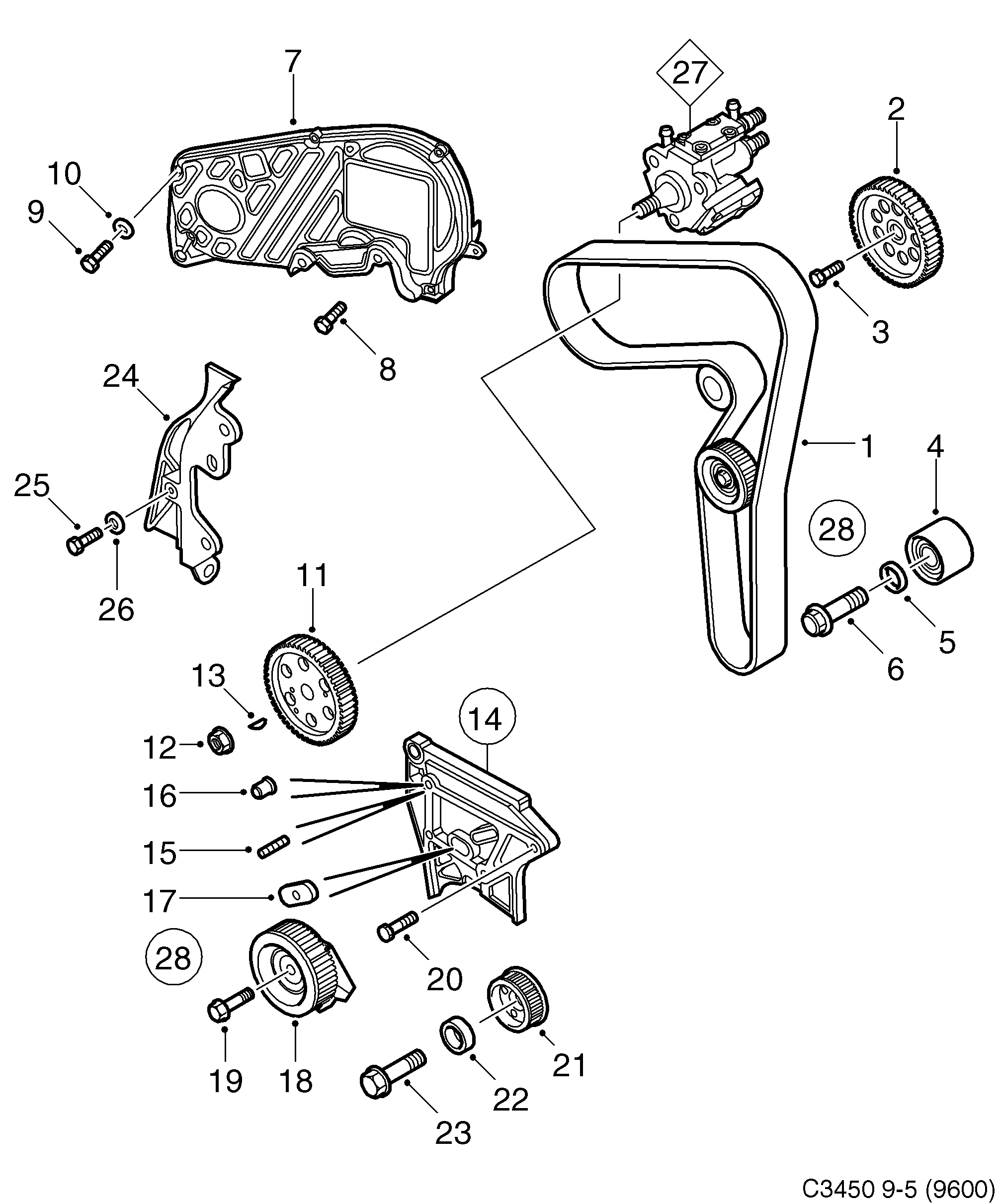

290: Engine - Short block - Transmission
(2006 - 2010 | Z19DTH) | For 9-5 (9600) (2007)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 93 178 812 Tooth belt Z19DTH | 1 | |
| 2 | 93 178 380 Chain gear Z19DTH | 1 | |
| 3 | 93 177 298 Screw Z19DTH | 1 | |
| 4 | 93 178 807 Guide roller Z19DTH | 1 | |
| 5 | 93 178 972 Washer Z19DTH • 10X22 | 1 | |
| 6 | 93 178 810 Screw Z19DTH | 1 | |
| 7 | 55 195 971 Cover Z19DTH | 1 | |
| 8 | 93 177 417 Screw Z19DTH • M8X20 | 2 | |
| 9 | 93 178 833 Screw Z19DTH • M6X30 | 4 | |
| 10 | 93 178 977 Washer Z19DTH • 6X11 | 4 | |
| 11 | 93 178 823 Chain gear Z19DTH | 1 | |
| 12 | 93 178 824 Nut Z19DTH • M14X1,5 | 1 | |
| 13 | 93 179 143 Key Z19DTH • 4X6,5 | 1 | |
| 14 | 55 566 199 Bracket Z19DTH | 1 | |
| 15 | 93 178 973 Screw Z19DTH | 1 | |
| 16 | 93 178 974 Spacer ring Z19DTH | 1 | |
| 17 | 93 178 813 Nut Z19DTH | 1 | |
| 18 | 93 186 866 55 212 159 Tension pulley Z19DTH | 1 | |
| 19 | 93 178 814 Screw Z19DTH | 1 | |
| 20 | 93 178 829 Screw Z19DTH • M8X25 | 1 | |
| 21 | 93 178 821 Crankshaft gear Z19DTH | 1 | |
| 22 | 93 178 818 Spacer ring Z19DTH | 1 | |
| 23 | 93 178 819 Screw Z19DTH | 1 | |
| 24 | 93 178 976 Timing gear casing Z19DTH | 1 | |
| 25 | 93 178 832 Screw Z19DTH • M6X18 | 2 | |
| 26 | 93 178 977 Washer Z19DTH • 6X11 | 2 | |
| 27 | Injection pumpFuel system Z19DTH | 1 | |
| 28 | 93 191 278 Engine timing parts, kit Z19DTH | 1 |
