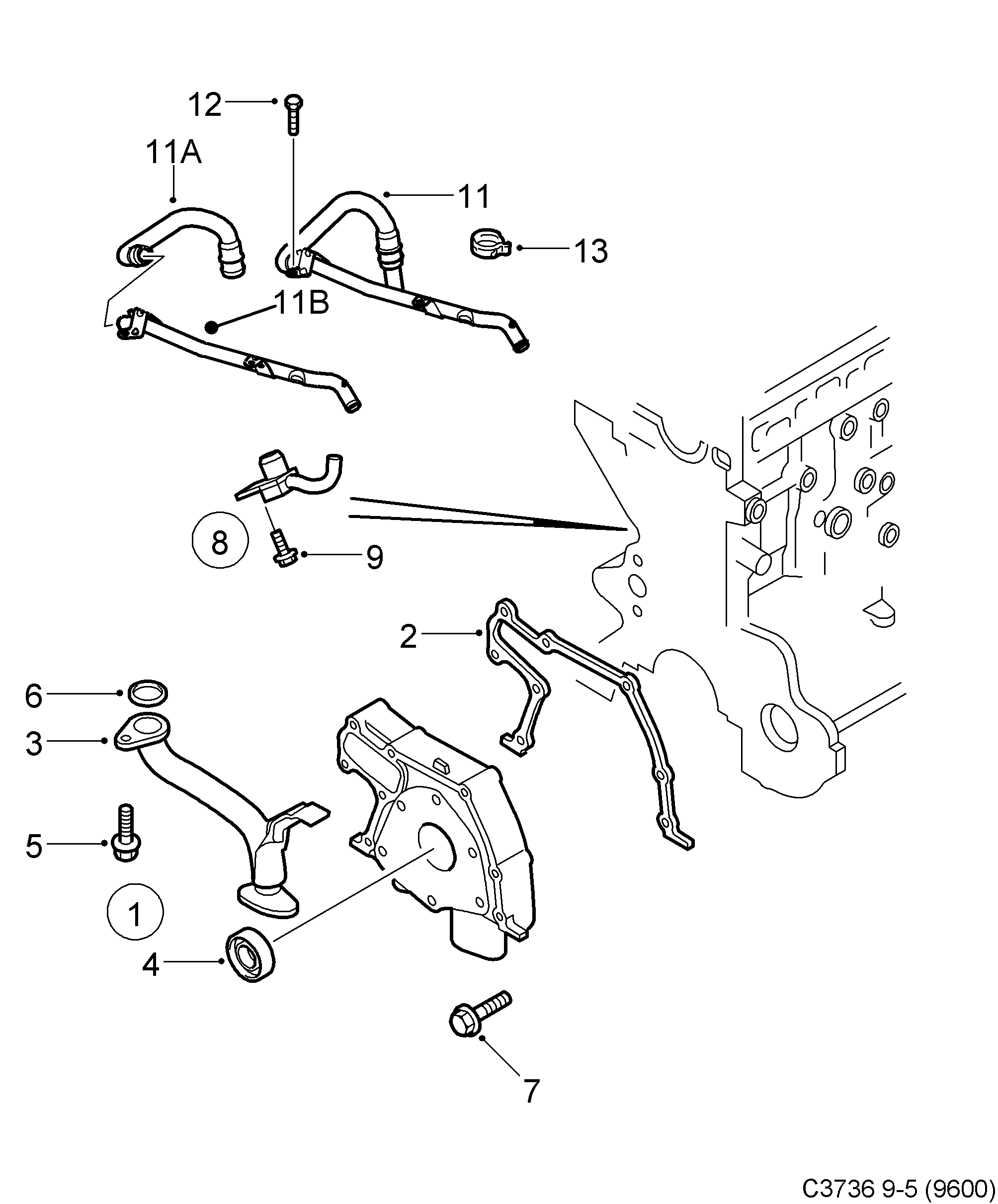

Pos.	Part No.	Description	Usage	Qty
1	55 198 355 Oil pump 2006-2007 • Z19DTH	Oil pump	2006-2007 Z19DTH	1
2	93 180 736 Gasket Z19DTH	Gasket	Z19DTH	1
3	93 180 739 Suction pipe Z19DTH	Suction pipe	Z19DTH	1
4	93 180 737 Seal Z19DTH	Seal	Z19DTH	1
5	93 178 806 Screw Z19DTH	Screw	Z19DTH	2
6	93 180 738 Seal Z19DTH	Seal	Z19DTH	1
7	93 177 832 Screw Z19DTH • M6X22	Screw	Z19DTH M6X22	6
7	93 177 743 Screw Z19DTH • M6X35	Screw	Z19DTH M6X35	2
7	93 178 806 Screw Z19DTH • M6X18	Screw	Z19DTH M6X18	1
8	55 202 183 Nozzle 2001-2004 • Z19DTH	Nozzle	2001-2004 Z19DTH	4
9	93 177 478 Screw Z19DTH	Screw	Z19DTH	4
11A	55 207 543 Hose 2001- • Z19DTH	Hose	2001- Z19DTH	1
11B	55 209 237 Hose 2001- • Z19DTH	Hose	2001- Z19DTH	1
12	93 179 333 Screw Z19DTH • M6X14	Screw	Z19DTH M6X14	2
13	93 183 679 Hose clamp Z19DTH	Hose clamp	Z19DTH	1

Pos.	Part No.	Description	Usage	Qty
1	55 198 355 Oil pump 2006-2007 • Z19DTH	Oil pump	2006-2007 Z19DTH	1
2	93 180 736 Gasket Z19DTH	Gasket	Z19DTH	1
3	93 180 739 Suction pipe Z19DTH	Suction pipe	Z19DTH	1
4	93 180 737 Seal Z19DTH	Seal	Z19DTH	1
5	93 178 806 Screw Z19DTH	Screw	Z19DTH	2
6	93 180 738 Seal Z19DTH	Seal	Z19DTH	1
7	93 177 832 Screw Z19DTH • M6X22	Screw	Z19DTH M6X22	6
7	93 177 743 Screw Z19DTH • M6X35	Screw	Z19DTH M6X35	2
7	93 178 806 Screw Z19DTH • M6X18	Screw	Z19DTH M6X18	1
8	55 202 183 Nozzle 2001-2004 • Z19DTH	Nozzle	2001-2004 Z19DTH	4
9	93 177 478 Screw Z19DTH	Screw	Z19DTH	4
11A	55 207 543 Hose 2001- • Z19DTH	Hose	2001- Z19DTH	1
11B	55 209 237 Hose 2001- • Z19DTH	Hose	2001- Z19DTH	1
12	93 179 333 Screw Z19DTH • M6X14	Screw	Z19DTH M6X14	2
13	93 183 679 Hose clamp Z19DTH	Hose clamp	Z19DTH	1
