Question 1

Where to find the exploded diagram for Lubricating system on my Saab 9-5 (9600) 2007?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Lubricating system on Saab 9-5 (9600) 2007. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Lubricating system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Lubricating system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (9600) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Lubricating system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Lubricating system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

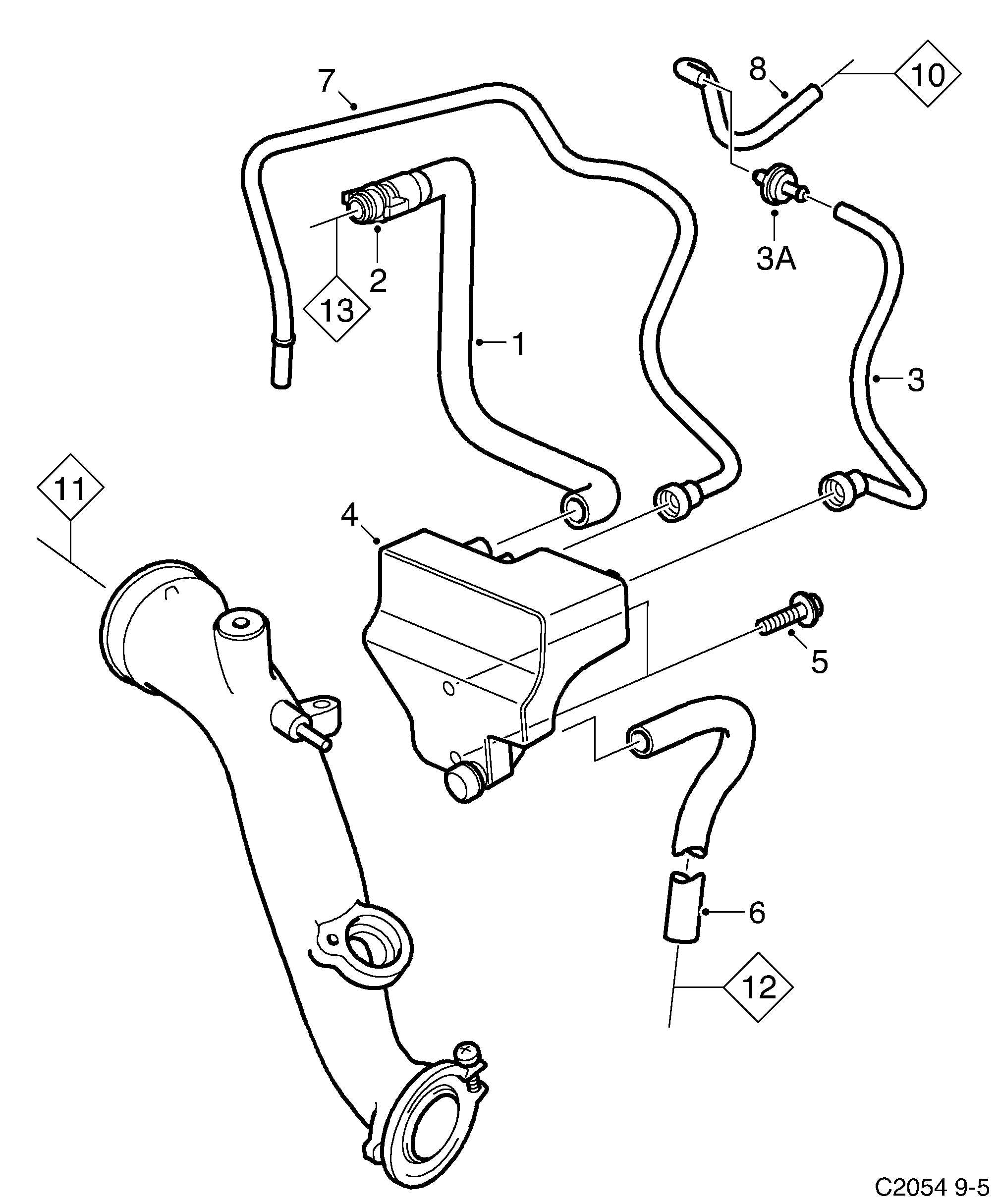

Pos.	Part No.	Description	Usage	Qty
1	55 355 330 Hose 2006-2010 • PETROL	Hose	2006-2010 PETROL	1
2	79 89 205 O-ring PETROL	O-ring	PETROL	1
3	59 55 927 Hose PETROL • Assy	Hose	PETROL Assy	1
3A	Non-return valve PETROL • Not as separate spare...	Non-return valve	PETROL Not as separate spare...	1
4	12 755 243 Oil separator 2006-2010 • PETROL	Oil separator	2006-2010 PETROL	1
5	11 900 367 Screw PETROL	Screw	PETROL	2
6	55 560 445 Hose 2005-2010 • PETROL	Hose	2005-2010 PETROL	1
7	59 61 610 Hose 2004- • PETROL	Hose	2004- PETROL	1
8	55 557 709 Hose 2006-2010 • PETROL	Hose	2006-2010 PETROL	1
10	Throttle bodyFuel system PETROL	Throttle bodyFuel system PETROL
11	Inlet pipeIntake and exhaust system PETROL	Inlet pipeIntake and exhaust system PETROL
12	SumpLubricating system PETROL	SumpLubricating system PETROL
13	Valve coverShort block PETROL	Valve coverShort block PETROL

Pos.	Part No.	Description	Usage	Qty
1	55 355 330 Hose 2006-2010 • PETROL	Hose	2006-2010 PETROL	1
2	79 89 205 O-ring PETROL	O-ring	PETROL	1
3	59 55 927 Hose PETROL • Assy	Hose	PETROL Assy	1
3A	Non-return valve PETROL • Not as separate spare...	Non-return valve	PETROL Not as separate spare...	1
4	12 755 243 Oil separator 2006-2010 • PETROL	Oil separator	2006-2010 PETROL	1
5	11 900 367 Screw PETROL	Screw	PETROL	2
6	55 560 445 Hose 2005-2010 • PETROL	Hose	2005-2010 PETROL	1
7	59 61 610 Hose 2004- • PETROL	Hose	2004- PETROL	1
8	55 557 709 Hose 2006-2010 • PETROL	Hose	2006-2010 PETROL	1
10	Throttle bodyFuel system PETROL	Throttle bodyFuel system PETROL
11	Inlet pipeIntake and exhaust system PETROL	Inlet pipeIntake and exhaust system PETROL
12	SumpLubricating system PETROL	SumpLubricating system PETROL
13	Valve coverShort block PETROL	Valve coverShort block PETROL

485: Engine - Lubricating system - Crank case ventilation
