Question 1

Where to find the exploded diagram for Lubricating system on my Saab 9-5 (9600) 2007?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Lubricating system on Saab 9-5 (9600) 2007. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Lubricating system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Lubricating system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (9600) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Lubricating system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Lubricating system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	55 192 366 Oil separator 2006-2007 • Z19DTH	Oil separator	2006-2007 Z19DTH	1
2	93 179 200 Hose Z19DTH	Hose	Z19DTH	1
3	93 179 201 Hose clamp Z19DTH • Ø24 MM	Hose clamp	Z19DTH Ø24 MM	2
4	55 199 390 Hose Z19DTH	Hose	Z19DTH	1
5	93 179 203 Bracket Z19DTH	Bracket	Z19DTH	1
6	93 179 204 Hose clamp Z19DTH	Hose clamp	Z19DTH	1
7	93 179 205 Washer Z19DTH	Washer	Z19DTH	3
8	93 183 430 Screw Z19DTH • M5X12	Screw	Z19DTH M5X12	3
9	93 179 207 Hose clamp Z19DTH • Ø20,5-22,5 MM	Hose clamp	Z19DTH Ø20,5-22,5 MM	2
10	93 177 489 Screw Z19DTH • M6X14	Screw	Z19DTH M6X14	1
10	93 177 417 Screw Z19DTH • M6X22	Screw	Z19DTH M6X22	1
11	55 574 449 Fitting Z19DTH	Fitting	Z19DTH	1
12	93 179 209 Hose clamp Z19DTH • Ø26 MM	Hose clamp	Z19DTH Ø26 MM	1
13	93 179 210 Nut Z19DTH • M6	Nut	Z19DTH M6	1
14	55 566 851 Pipe 2007-2009 • Z19DTH	Pipe	2007-2009 Z19DTH	1
15	55 559 058 Pipe Z19DTH	Pipe	Z19DTH	1
16	55 559 059 Hose Z19DTH	Hose	Z19DTH	1
17	55 559 060 Hose Z19DTH	Hose	Z19DTH	1
18	55 559 063 Bracket Z19DTH	Bracket	Z19DTH	1
19	55 559 056 Bracket Z19DTH	Bracket	Z19DTH	1
20	90 499 093 Hose clamp Z19DTH	Hose clamp	Z19DTH	2
21	92 152 409 Hose clamp Z19DTH	Hose clamp	Z19DTH	2
22	55 351 569 Hose Z19DTH	Hose	Z19DTH	1
23	90 572 594 Hose clamp Z19DTH	Hose clamp	Z19DTH	1
24	90 467 194 Hose clamp Z19DTH	Hose clamp	Z19DTH	1
25	90 530 642 Hose clamp Z19DTH	Hose clamp	Z19DTH	2
26	11 900 512 Tensioning band Z19DTH	Tensioning band	Z19DTH	2
27	55 565 118 Baffle 2007-2010 • Z19DTH	Baffle	2007-2010 Z19DTH	1
28A	55 207 543 Hose 2001- • Z19DTH	Hose	2001- Z19DTH	1
28B	55 209 237 Hose 2001- • Z19DTH	Hose	2001- Z19DTH	1
29	55 567 315 Cap blanking Z19DTH • Crank case ventilation Pipe	Cap blanking	Z19DTH Crank case ventilation Pipe	1

Pos.	Part No.	Description	Usage	Qty
1	55 192 366 Oil separator 2006-2007 • Z19DTH	Oil separator	2006-2007 Z19DTH	1
2	93 179 200 Hose Z19DTH	Hose	Z19DTH	1
3	93 179 201 Hose clamp Z19DTH • Ø24 MM	Hose clamp	Z19DTH Ø24 MM	2
4	55 199 390 Hose Z19DTH	Hose	Z19DTH	1
5	93 179 203 Bracket Z19DTH	Bracket	Z19DTH	1
6	93 179 204 Hose clamp Z19DTH	Hose clamp	Z19DTH	1
7	93 179 205 Washer Z19DTH	Washer	Z19DTH	3
8	93 183 430 Screw Z19DTH • M5X12	Screw	Z19DTH M5X12	3
9	93 179 207 Hose clamp Z19DTH • Ø20,5-22,5 MM	Hose clamp	Z19DTH Ø20,5-22,5 MM	2
10	93 177 489 Screw Z19DTH • M6X14	Screw	Z19DTH M6X14	1
10	93 177 417 Screw Z19DTH • M6X22	Screw	Z19DTH M6X22	1
11	55 574 449 Fitting Z19DTH	Fitting	Z19DTH	1
12	93 179 209 Hose clamp Z19DTH • Ø26 MM	Hose clamp	Z19DTH Ø26 MM	1
13	93 179 210 Nut Z19DTH • M6	Nut	Z19DTH M6	1
14	55 566 851 Pipe 2007-2009 • Z19DTH	Pipe	2007-2009 Z19DTH	1
15	55 559 058 Pipe Z19DTH	Pipe	Z19DTH	1
16	55 559 059 Hose Z19DTH	Hose	Z19DTH	1
17	55 559 060 Hose Z19DTH	Hose	Z19DTH	1
18	55 559 063 Bracket Z19DTH	Bracket	Z19DTH	1
19	55 559 056 Bracket Z19DTH	Bracket	Z19DTH	1
20	90 499 093 Hose clamp Z19DTH	Hose clamp	Z19DTH	2
21	92 152 409 Hose clamp Z19DTH	Hose clamp	Z19DTH	2
22	55 351 569 Hose Z19DTH	Hose	Z19DTH	1
23	90 572 594 Hose clamp Z19DTH	Hose clamp	Z19DTH	1
24	90 467 194 Hose clamp Z19DTH	Hose clamp	Z19DTH	1
25	90 530 642 Hose clamp Z19DTH	Hose clamp	Z19DTH	2
26	11 900 512 Tensioning band Z19DTH	Tensioning band	Z19DTH	2
27	55 565 118 Baffle 2007-2010 • Z19DTH	Baffle	2007-2010 Z19DTH	1
28A	55 207 543 Hose 2001- • Z19DTH	Hose	2001- Z19DTH	1
28B	55 209 237 Hose 2001- • Z19DTH	Hose	2001- Z19DTH	1
29	55 567 315 Cap blanking Z19DTH • Crank case ventilation Pipe	Cap blanking	Z19DTH Crank case ventilation Pipe	1

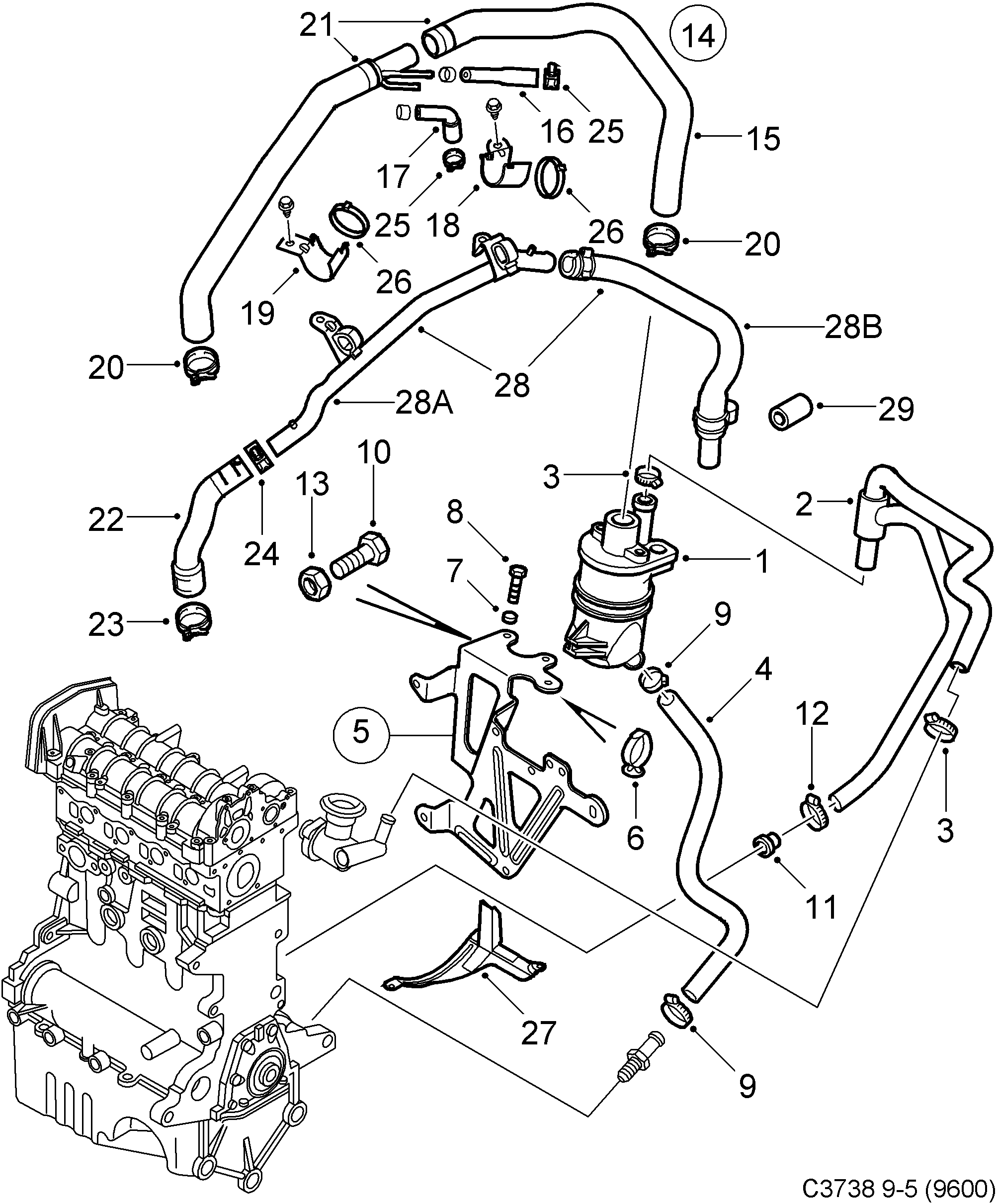

515: Engine - Lubricating system - Crank case ventilation
