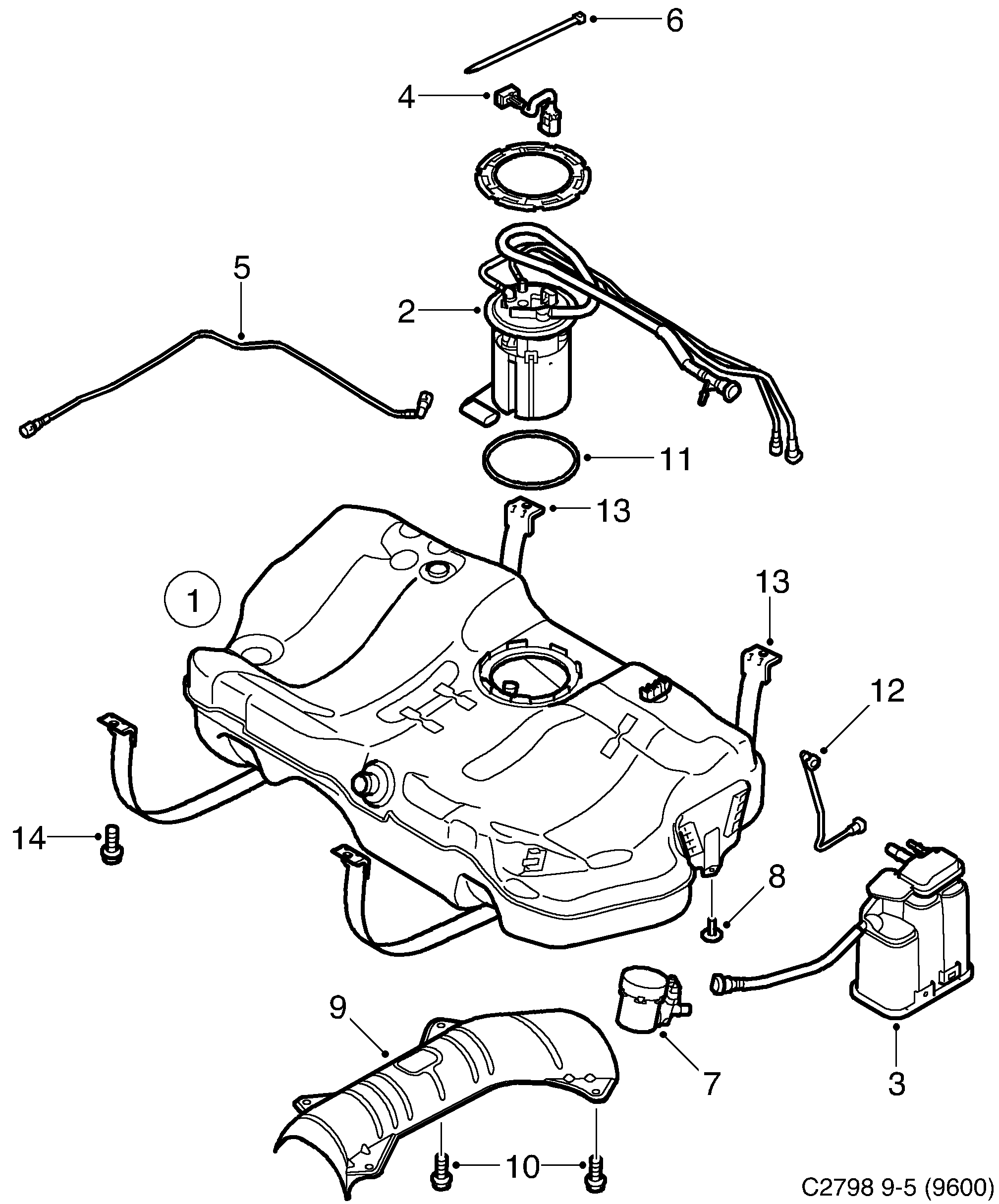

550: Engine - Fuel system - Fuel tank
(2006 - 2010 | PETROL) | For 9-5 (9600) (2007)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12 757 161 12 777 430 Fuel reservoir -2007 • PETROL | 1 | |
| 1 | 12 777 430 Fuel reservoir 2007- • PETROL | 1 | |
| 2 | 12 757 165 Fuel pump PETROL | 1 | |
| 3 | 12 757 172 Carbon filter PETROL | 1 | |
| 4 | 12 757 176 Cable harness PETROL | 1 | |
| 5 | 12 757 181 Hose PETROL | 1 | |
| 6 | 11 900 512 Tensioning band PETROL | 1 | |
| 7 | 10 382 105 Valve PETROL | 1 | |
| 8 | 11 588 601 Screw PETROL | 1 | |
| 9 | 45 74 349 Heat shield PETROL | 1 | |
| 10 | 91 28 429 Screw PETROL | 4 | |
| 11 | 22 672 293 Seal PETROL | 1 | |
| 12 | 22 667 422 Vent hose PETROL | 1 | |
93 192 719 Clip PETROL • Vent pipe | 1 | ||
12 769 007 Baffle 2007- • PETROL | 1 | ||
12 768 974 Insulation 2007- • PETROL | 1 | ||
12 768 975 Insulation 2007- • PETROL | 1 | ||
| 13 | 45 72 087 Tensioning band PETROL | 2 | |
| 14 | 79 85 773 Screw PETROL | 4 |
