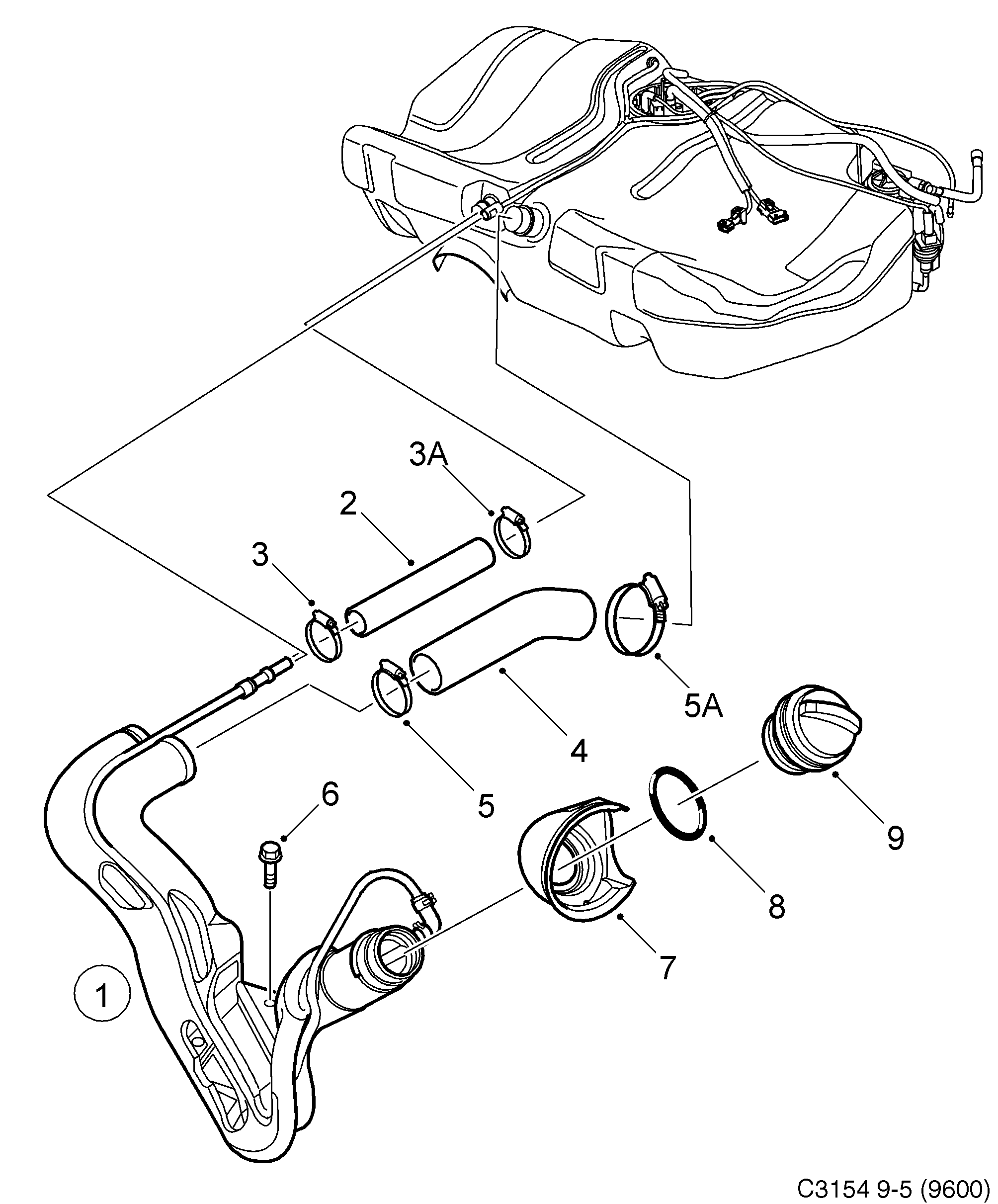

570: Engine - Fuel system - Filler pipe
(2006 - 2010) | For 9-5 (9600) (2007)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12 756 187 Filler pipe B205, B235 | 1 | |
| 1 | 12 756 188 Filler pipe Z19DTH | 1 | |
| 2 | 54 64 904 Hose | 1 | |
| 3 | 12 767 331 Hose clamp | 1 | |
| 3A | 49 40 011 Hose clamp | 1 | |
| 4 | 53 29 594 Hose | 1 | |
| 5 | 12 767 329 Hose clamp | 1 | |
| 5A | 49 40 029 Hose clamp | 1 | |
| 1 | 12 760 482 Filler pipe | 1 | |
| 6 | 92 152 212 Screw B205E, B235, Z19DTH | 1 | |
| 6 | 11 900 013 Torx screw BioPower | 1 | |
| 7 | 47 26 329 Seal | 1 | |
| 7 | 47 26 295 Seal | 1 | |
| 8 | 45 77 680 Ring | 1 | |
| 9 | 53 36 052 Filler cap -2009 • Z19DTH | 1 | |
| 9 | 10 372 244 Filler cap 2006-2008 | 1 | |
| 9 | 51 92 505 Filler cap B205, B235 • Name of the substance... | 1 |
