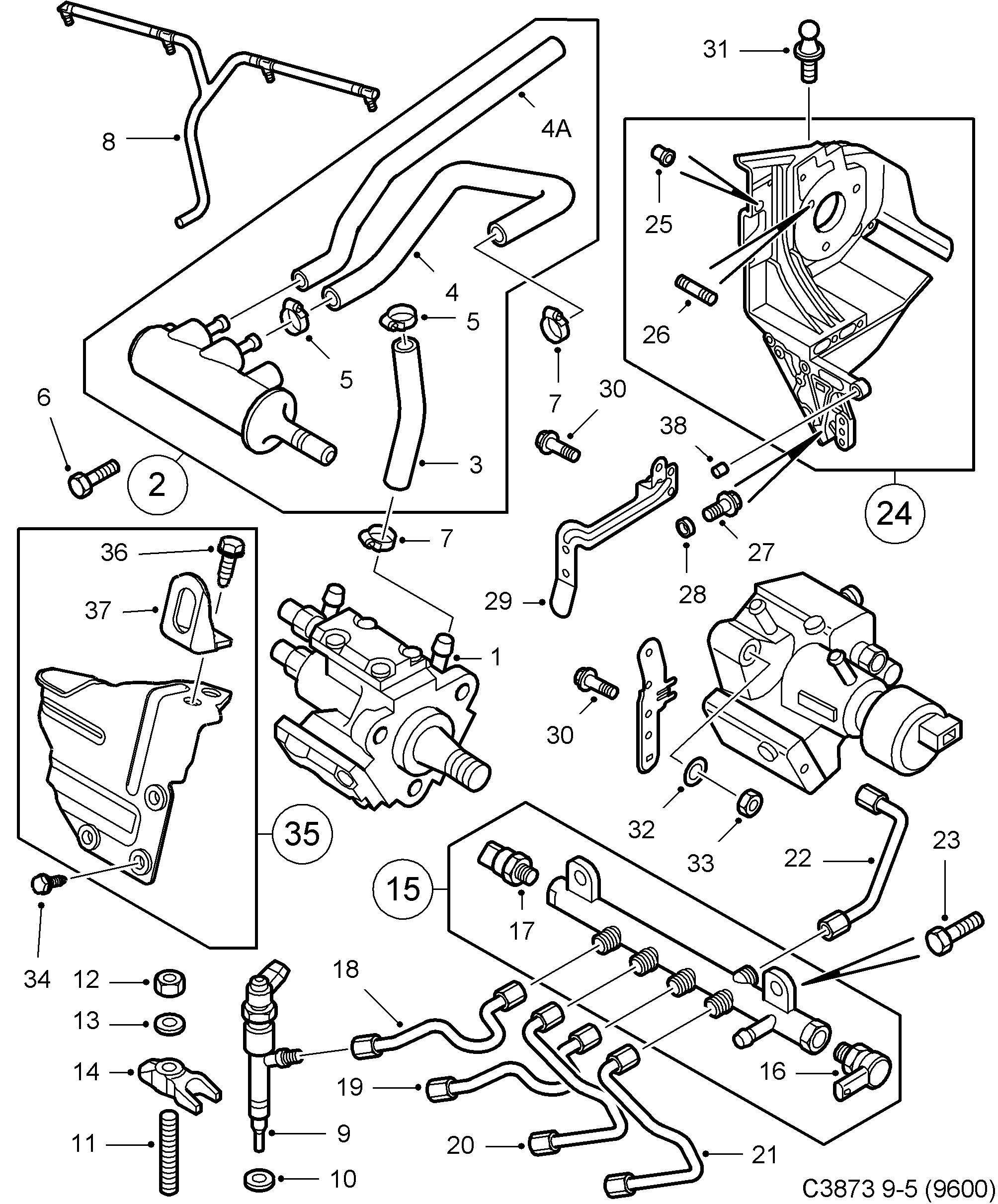

663: Engine - Fuel system - Injection pump - Injection valve

(2006 - 2010 | Z19DTH) | For 9-5 (9600) (2007)

100%

(N°640)

Section 663

(N°680)

Pos.	Part No.	Description	Usage	Qty
1	93 191 709 Injection pump 2007-2010, LHD • Z19DTH	Injection pump	2007-2010, LHD Z19DTH	1
1	93 191 710 Injection pump 2007-2010, RHD • Z19DTH	Injection pump	2007-2010, RHD Z19DTH	1
2	55 569 286 55 573 520 Reservoir 2001- • Z19DTH	Reservoir	2001- Z19DTH	1
3	93 184 685 Hose Z19DTH	Hose	Z19DTH	1
4	93 180 741 Hose Z19DTH	Hose	Z19DTH	1
4A	55 196 335 55 573 521 Hose 2006-2007 • Z19DTH	Hose	2006-2007 Z19DTH	1
5	93 177 692 Hose clamp Z19DTH	Hose clamp	Z19DTH	2
6	93 178 984 Screw Z19DTH • M6X35	Screw	Z19DTH M6X35	2
7	93 177 692 Hose clamp Z19DTH	Hose clamp	Z19DTH	2
8	55 566 677 Hose 2006-2010 • Z19DTH	Hose	2006-2010 Z19DTH	1
9	55 198 218 Injector Z19DTH	Injector	Z19DTH	4
10	93 178 683 Gasket Z19DTH	Gasket	Z19DTH	4
11	93 179 050 Stud Z19DTH • M8X16-57	Stud	Z19DTH M8X16-57	4
12	93 177 333 Nut Z19DTH	Nut	Z19DTH	4
13	93 179 049 Washer Z19DTH	Washer	Z19DTH	4
14	93 179 048 Bracket Z19DTH	Bracket	Z19DTH	4
15	93 185 539 93 192 283 Fuel rail Z19DTH	Fuel rail	Z19DTH	1
15	93 192 283 Distribution pipe Z19DTH	Distribution pipe	Z19DTH	1
16	93 181 654 Pressure regulator Z19DTH	Pressure regulator	Z19DTH	1
17	93 185 626 Sensor Z19DTH	Sensor	Z19DTH	1
18	93 179 045 Fuel pipe 2006-2007 • Z19DTH • CYL.1	Fuel pipe	2006-2007 Z19DTH CYL.1	1
19	93 179 044 93 191 391 Fuel pipe 2006-2007 • Z19DTH • CYL.2	Fuel pipe	2006-2007 Z19DTH CYL.2	1
20	93 179 043 93 191 393 Fuel pipe 2006-2007 • Z19DTH • CYL.3	Fuel pipe	2006-2007 Z19DTH CYL.3	1
21	93 179 042 93 191 390 Fuel pipe 2006-2007 • Z19DTH • CYL.4	Fuel pipe	2006-2007 Z19DTH CYL.4	1
22	93 179 046 55 215 517 Injection pipe 2006-2007 • Z19DTH	Injection pipe	2006-2007 Z19DTH	1
23	93 178 829 Screw Z19DTH • M8X25	Screw	Z19DTH M8X25	2
24	55 196 096 Bracket RHD • Z19DTH	Bracket	RHD Z19DTH	1
25	93 190 054 Sleeve nut 2007-2010 • Z19DTH	Sleeve nut	2007-2010 Z19DTH	25
26	93 182 444 Stud Z19DTH	Stud	Z19DTH	3
27	93 178 847 Screw Z19DTH • M8X35	Screw	Z19DTH M8X35	3
27	12 855 322 Hexagon screw Z19DTH • M8X50	Hexagon screw	Z19DTH M8X50	1
27	93 182 452 Screw Z19DTH • M8X110	Screw	Z19DTH M8X110	2
28	93 179 080 Washer Z19DTH	Washer	Z19DTH	1
29	93 184 681 Bracket Z19DTH • wiring harness	Bracket	Z19DTH wiring harness	1
30	93 179 333 Screw Z19DTH • M6X14	Screw	Z19DTH M6X14	4
31	55 560 110 Ball stud Z19DTH	Ball stud	Z19DTH	1
32	93 178 879 Washer Z19DTH	Washer	Z19DTH	3
33	93 178 880 Nut Z19DTH	Nut	Z19DTH	3
34	11 900 354 Screw Z19DTH	Screw	Z19DTH	3
35	55 559 691 Protecting plate -2007 • Z19DTH	Protecting plate	-2007 Z19DTH	1
35	55 565 846 Protecting sleeve 2007- • Z19DTH	Protecting sleeve	2007- Z19DTH	1
36	11 900 365 Screw Z19DTH	Screw	Z19DTH	1
37	55 187 743 Lifting eye Z19DTH	Lifting eye	Z19DTH	1
38	93 178 469 Screw plug Z19DTH	Screw plug	Z19DTH	1
