Question 1

Where to find the exploded diagram for Cooling system on my Saab 9-5 (9600) 2007?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Cooling system on Saab 9-5 (9600) 2007. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Cooling system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Cooling system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (9600) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Cooling system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Cooling system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
3	93 179 330 Hose 2001-2001 • Z19DTH	Hose	2001-2001 Z19DTH	1
4	93 177 692 Hose clamp 2001-2001 • Z19DTH	Hose clamp	2001-2001 Z19DTH	4
5	93 179 327 Clip 2001-2001 • Z19DTH	Clip	2001-2001 Z19DTH	2
6	93 183 255 Clip 2001-2001 • Z19DTH	Clip	2001-2001 Z19DTH	1
1A	55 206 879 Pipe 2001- • Z19DTH	Pipe	2001- Z19DTH	1
7	93 179 333 Screw Z19DTH	Screw	Z19DTH	3
	Expansion tankFuel system Z19DTH	Expansion tankFuel system Z19DTH
	Thermostat housingCooling system Z19DTH	Thermostat housingCooling system Z19DTH

Pos.	Part No.	Description	Usage	Qty
3	93 179 330 Hose 2001-2001 • Z19DTH	Hose	2001-2001 Z19DTH	1
4	93 177 692 Hose clamp 2001-2001 • Z19DTH	Hose clamp	2001-2001 Z19DTH	4
5	93 179 327 Clip 2001-2001 • Z19DTH	Clip	2001-2001 Z19DTH	2
6	93 183 255 Clip 2001-2001 • Z19DTH	Clip	2001-2001 Z19DTH	1
1A	55 206 879 Pipe 2001- • Z19DTH	Pipe	2001- Z19DTH	1
7	93 179 333 Screw Z19DTH	Screw	Z19DTH	3
	Expansion tankFuel system Z19DTH	Expansion tankFuel system Z19DTH
	Thermostat housingCooling system Z19DTH	Thermostat housingCooling system Z19DTH

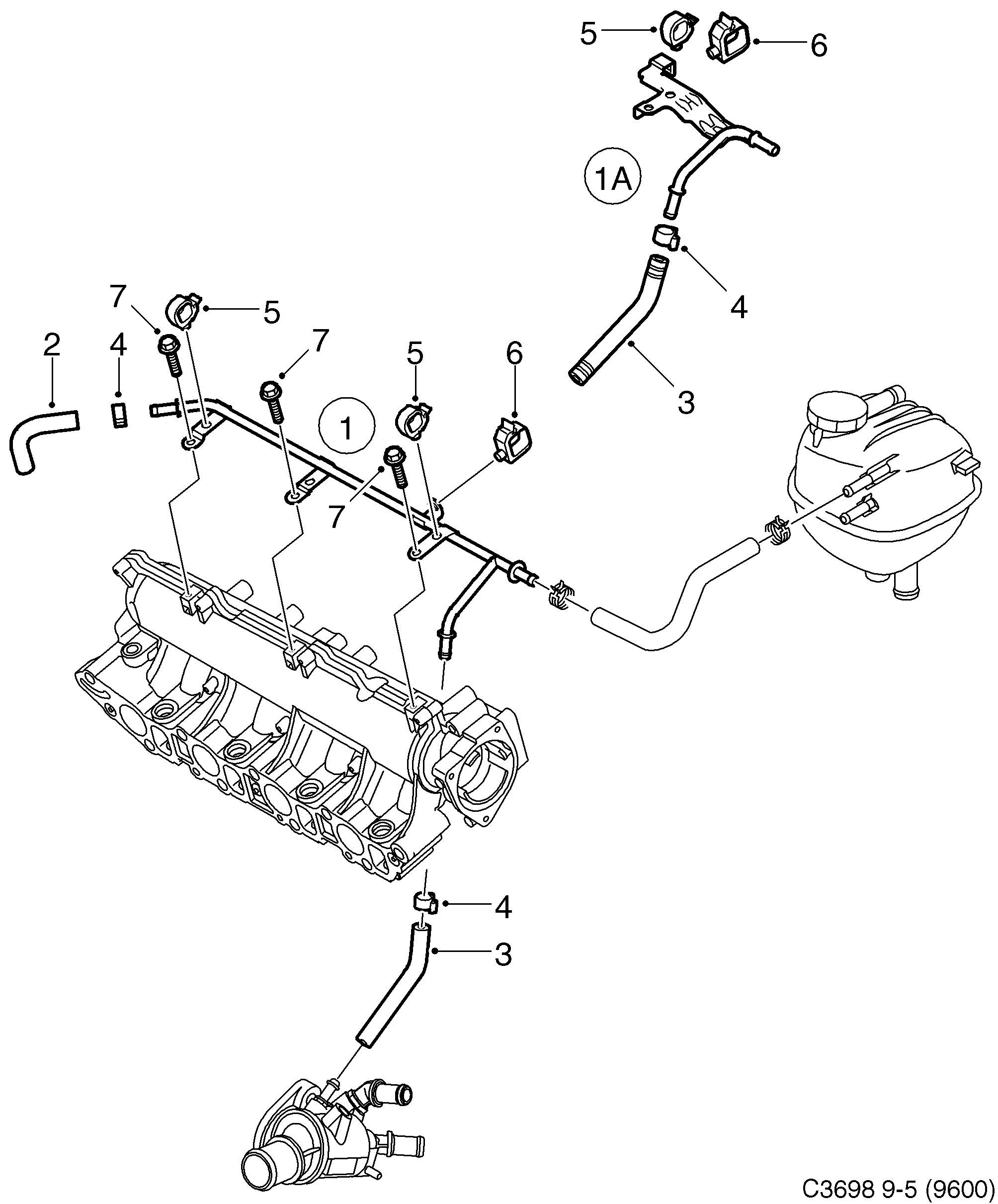

956: Engine - Cooling system - Coolant pipe
