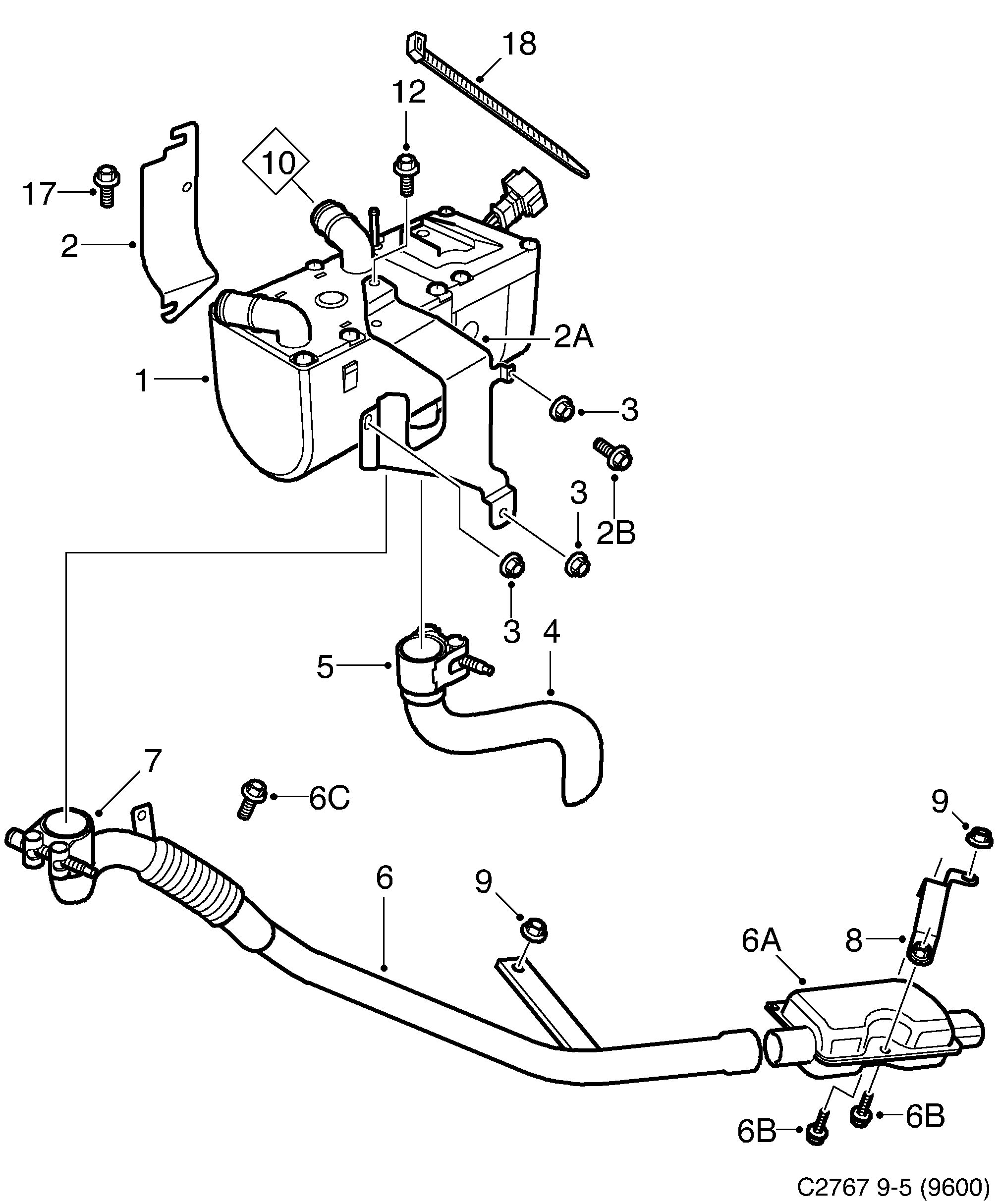

Pos.	Part No.	Description	Usage	Qty
1	Heater unitCooling system Z19DTH	Heater unitCooling system Z19DTH
2	53 25 766 Bracket Z19DTH	Bracket	Z19DTH	1
2	54 60 951 Bracket Z19DTH	Bracket	Z19DTH	1
2A	53 29 925 Bracket Z19DTH	Bracket	Z19DTH	1
2A	54 61 462 Bracket 2007-2010 • Z19DTH	Bracket	2007-2010 Z19DTH	1
2B	43 48 694 11 900 355 Screw Z19DTH	Screw	Z19DTH	2
3	79 85 377 Nut Z19DTH	Nut	Z19DTH	3
4	51 91 168 Intake manifold Z19DTH	Intake manifold	Z19DTH	1
5	51 25 646 Clamp Z19DTH	Clamp	Z19DTH	1
6	53 20 726 Exhaust pipe Z19DTH	Exhaust pipe	Z19DTH	1
6	54 61 199 Exhaust pipe 2006-2009 • Z19DTH	Exhaust pipe	2006-2009 Z19DTH	1
6A	46 23 351 400106936 Silencer Z19DTH	Silencer	Z19DTH	1
6B	11 900 378 Screw 2007-2010 • Z19DTH	Screw	2007-2010 Z19DTH	2
6C	79 78 091 11 900 353 Screw Z19DTH	Screw	Z19DTH	2
7	51 25 653 Clamp Z19DTH	Clamp	Z19DTH	1
8	53 20 734 Bracket Z19DTH	Bracket	Z19DTH	1
9	46 85 582 55 563 636 Nut Z19DTH	Nut	Z19DTH	2
10	Hose assemblyFuel system Z19DTH	Hose assemblyFuel system Z19DTH
12	79 74 694 Screw Z19DTH	Screw	Z19DTH	1
17	79 72 466 Screw Z19DTH	Screw	Z19DTH	1
18	85 52 663 Tensioning band 2006-2008 • Z19DTH	Tensioning band	2006-2008 Z19DTH	1

Pos.	Part No.	Description	Usage	Qty
1	Heater unitCooling system Z19DTH	Heater unitCooling system Z19DTH
2	53 25 766 Bracket Z19DTH	Bracket	Z19DTH	1
2	54 60 951 Bracket Z19DTH	Bracket	Z19DTH	1
2A	53 29 925 Bracket Z19DTH	Bracket	Z19DTH	1
2A	54 61 462 Bracket 2007-2010 • Z19DTH	Bracket	2007-2010 Z19DTH	1
2B	43 48 694 11 900 355 Screw Z19DTH	Screw	Z19DTH	2
3	79 85 377 Nut Z19DTH	Nut	Z19DTH	3
4	51 91 168 Intake manifold Z19DTH	Intake manifold	Z19DTH	1
5	51 25 646 Clamp Z19DTH	Clamp	Z19DTH	1
6	53 20 726 Exhaust pipe Z19DTH	Exhaust pipe	Z19DTH	1
6	54 61 199 Exhaust pipe 2006-2009 • Z19DTH	Exhaust pipe	2006-2009 Z19DTH	1
6A	46 23 351 400106936 Silencer Z19DTH	Silencer	Z19DTH	1
6B	11 900 378 Screw 2007-2010 • Z19DTH	Screw	2007-2010 Z19DTH	2
6C	79 78 091 11 900 353 Screw Z19DTH	Screw	Z19DTH	2
7	51 25 653 Clamp Z19DTH	Clamp	Z19DTH	1
8	53 20 734 Bracket Z19DTH	Bracket	Z19DTH	1
9	46 85 582 55 563 636 Nut Z19DTH	Nut	Z19DTH	2
10	Hose assemblyFuel system Z19DTH	Hose assemblyFuel system Z19DTH
12	79 74 694 Screw Z19DTH	Screw	Z19DTH	1
17	79 72 466 Screw Z19DTH	Screw	Z19DTH	1
18	85 52 663 Tensioning band 2006-2008 • Z19DTH	Tensioning band	2006-2008 Z19DTH	1
