Question 1

Where to find the exploded diagram for Wiring and fuses on my Saab 9-5 (9600) 2007?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Wiring and fuses on Saab 9-5 (9600) 2007. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Wiring and fuses?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Wiring and fuses?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (9600) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Wiring and fuses, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Wiring and fuses suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	12 756 898 Cable harness B205, B235	Cable harness	B205, B235	1
1	12 756 896 Cable harness B205, B235 • XENON	Cable harness	B205, B235 XENON	1
1	12 756 902 Cable harness Z19DTH	Cable harness	Z19DTH	1
1	12 756 900 Cable harness Z19DTH	Cable harness	Z19DTH	1
1	12 756 901 Cable harness Z19DTH • XENON	Cable harness	Z19DTH XENON	1
1	12 756 899 Cable harness Z19DTH • XENON	Cable harness	Z19DTH XENON	1
2	Relay boxElectric equipment, other	Relay boxElectric equipment, other
3	12 765 946 Cable harness connection bumper	Cable harness	connection bumper	1
4	12 770 652 12 778 814 Cable harness 2007-2007 • Backup net for impact...	Cable harness	2007-2007 Backup net for impact...	1

Pos.	Part No.	Description	Usage	Qty
1	12 756 898 Cable harness B205, B235	Cable harness	B205, B235	1
1	12 756 896 Cable harness B205, B235 • XENON	Cable harness	B205, B235 XENON	1
1	12 756 902 Cable harness Z19DTH	Cable harness	Z19DTH	1
1	12 756 900 Cable harness Z19DTH	Cable harness	Z19DTH	1
1	12 756 901 Cable harness Z19DTH • XENON	Cable harness	Z19DTH XENON	1
1	12 756 899 Cable harness Z19DTH • XENON	Cable harness	Z19DTH XENON	1
2	Relay boxElectric equipment, other	Relay boxElectric equipment, other
3	12 765 946 Cable harness connection bumper	Cable harness	connection bumper	1
4	12 770 652 12 778 814 Cable harness 2007-2007 • Backup net for impact...	Cable harness	2007-2007 Backup net for impact...	1

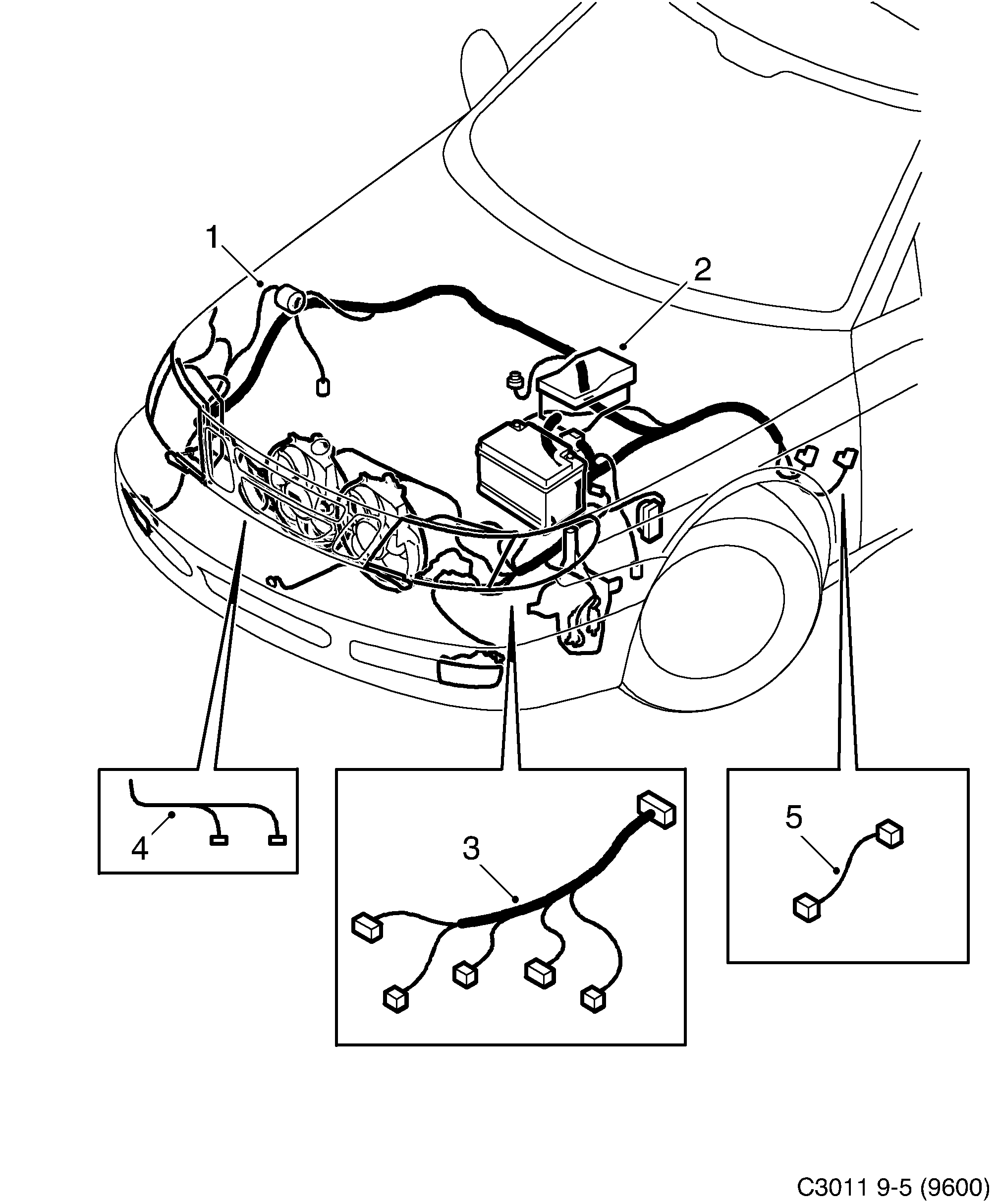

897: Electrical, general - Wiring and fuses - Front
