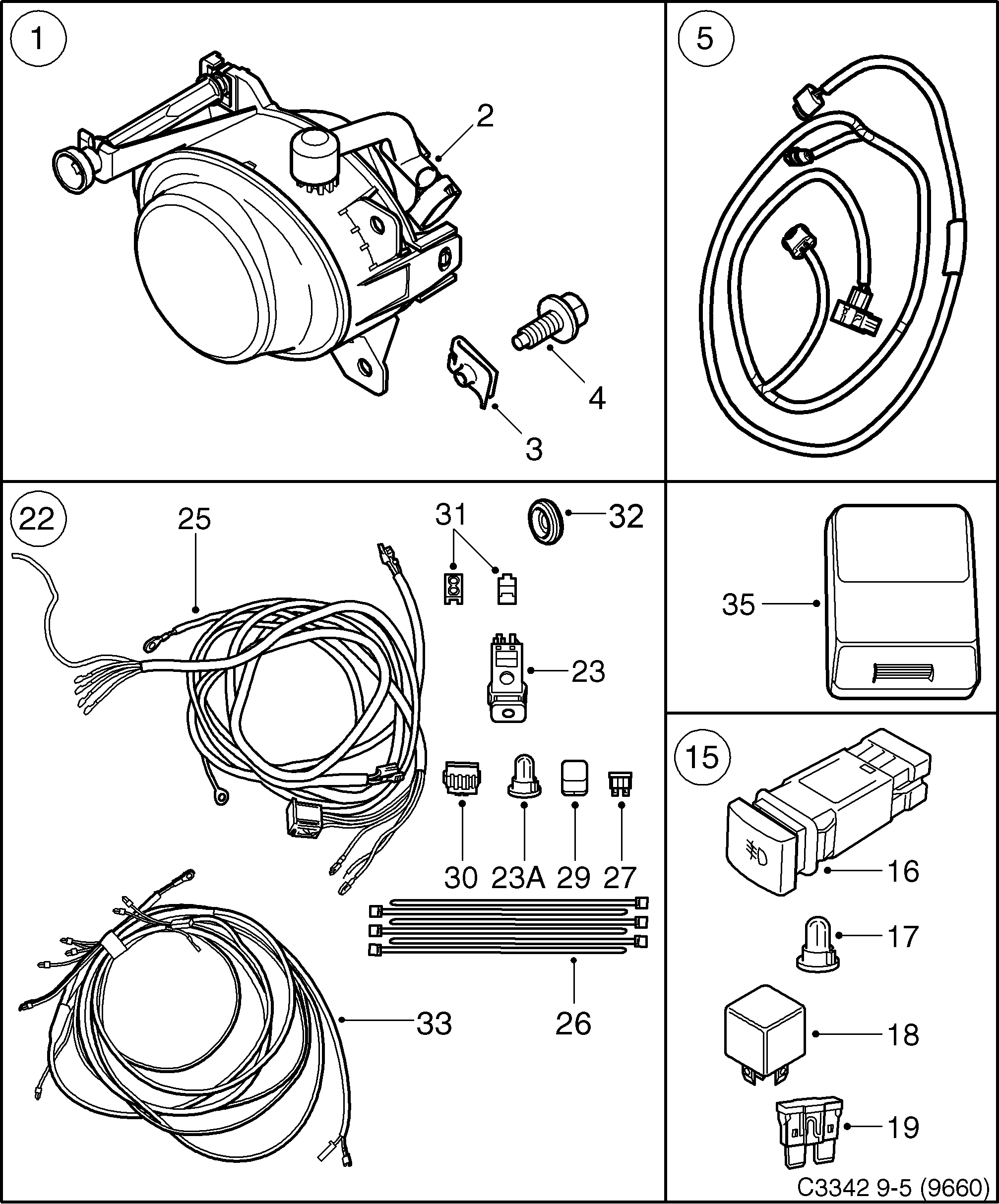

164: Accessories - Accessories electrical - Spotlight
(2006 - 2010) | For 9-5 (9600) (2007)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 32 025 631 Front fog lamp 2006-2007 • kit | 1 | |
| 2 | 12 755 354 12 777 400 Front fog lamp LH | 1 | |
| 2 | 12 762 584 12 777 401 Front fog lamp RH | 1 | |
| 3 | 11 094 111 Clip nut | 6 | |
| 4 | 92 150 086 Hexagon screw | 6 | |
| 5 | 12 765 946 Cable harness 2006-2007 • Type 10. (For ordering) | 1 | |
| 15 | 400106209 Supplementary kit, switch fog-lights | 1 | |
| 16 | 30 550 915 12 768 423 Switch (4409223) | 1 | |
| 17 | 44 66 421 44 66 439 Bulb | 1 | |
| 18 | 42 24 192 49 47 115 Relay | 1 | |
| 19 | 79 74 645 Fuse 15A | 1 | |
| 22 | 32 025 797 Installation kit, extra light | 1 | |
| 23 | 45 19 641 Switch | 1 | |
| 23A | 44 66 439 Bulb | 1 | |
| 25 | 400131454 Cable harness | 1 | |
| 26 | 92 150 191 11 900 513 Tensioning band | 10 | |
| 27 | 24 426 656 Fuse 15A | 1 | |
| 29 | 85 33 176 Relay | 1 | |
| 30 | 30 520 631 12 764 801 Connector housing | 1 | |
| 31 | 95 60 012 Cable joint | 3 | |
| 32 | 79 61 329 Bushing | 1 | |
| 33 | 32 025 798 Cable 1,5 M | 1 | |
| 35 | 93 199 399 Bulb kit 2007-2010 • Does not contain a... | 1 | |
| 35 | 93 199 414 Bulb kit 2007-2010 | 1 |
