Question 1

Where to find the exploded diagram for Lubricating system on my Saab 9-5 (9600) 2008?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Lubricating system on Saab 9-5 (9600) 2008. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Lubricating system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Lubricating system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (9600) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Lubricating system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Lubricating system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

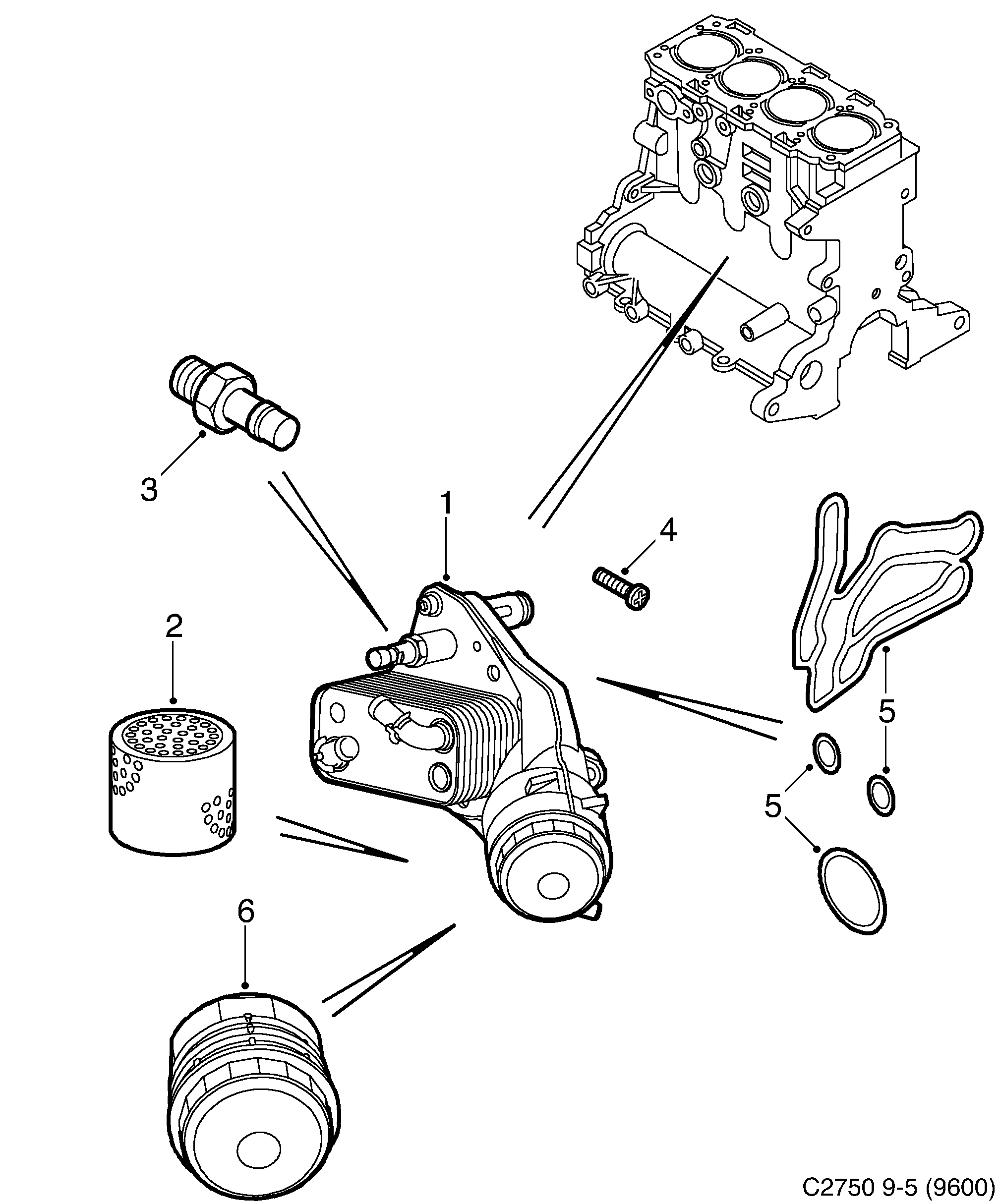

Pos.	Part No.	Description	Usage	Qty
1	55 198 696 Oil filter housing Z19DTH	Oil filter housing	Z19DTH	1
2	93 183 412 Filter insert Z19DTH	Filter insert	Z19DTH	1
3	55 202 374 Oil pressure sensor Z19DTH	Oil pressure sensor	Z19DTH	1
4	12 855 334 Screw Z19DTH	Screw	Z19DTH	3
5	95 507 618 Gasket kit Z19DTH	Gasket kit	Z19DTH	1
6	93 181 615 Cover Z19DTH	Cover	Z19DTH	1

Pos.	Part No.	Description	Usage	Qty
1	55 198 696 Oil filter housing Z19DTH	Oil filter housing	Z19DTH	1
2	93 183 412 Filter insert Z19DTH	Filter insert	Z19DTH	1
3	55 202 374 Oil pressure sensor Z19DTH	Oil pressure sensor	Z19DTH	1
4	12 855 334 Screw Z19DTH	Screw	Z19DTH	3
5	95 507 618 Gasket kit Z19DTH	Gasket kit	Z19DTH	1
6	93 181 615 Cover Z19DTH	Cover	Z19DTH	1

444: Engine - Lubricating system - Oil filter
