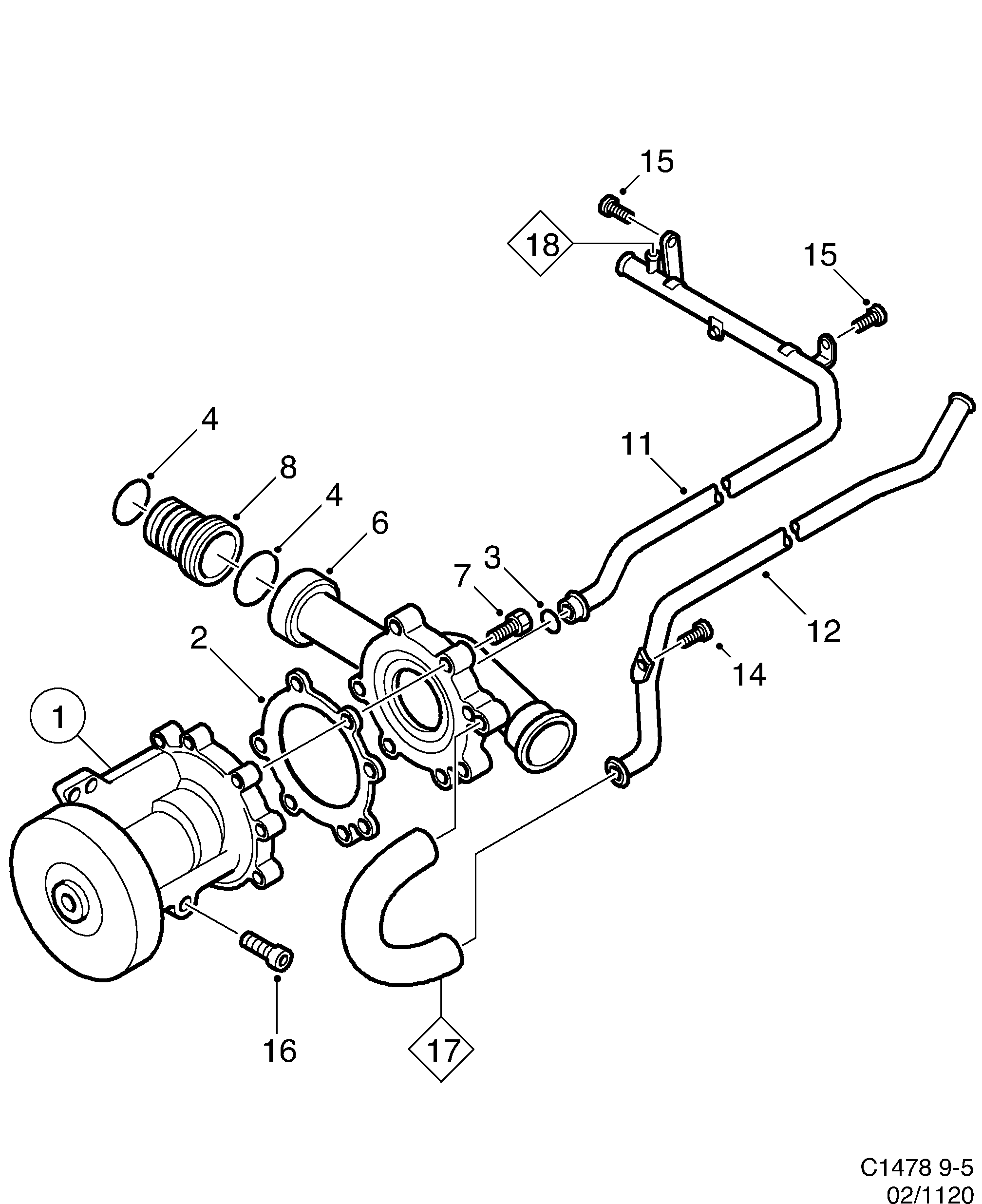

1120: Engine - Cooling system - Coolant pump
(1998 - 2010 | B205E, B235E, B235R) | For 9-5 (9600) (2009)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 59 60 414 93 166 829 Coolant pump 2003- • B205E, B235E, B235R | 1 | |
| 2 | 91 44 767 Gasket B205E, B235E, B235R | 1 | |
| 3 | 30 551 913 O-ring B205E, B235E, B235R • (9146598) | 1 | |
| 4 | 55 557 315 55 562 943 O-ring 2006-2010 • B205E, B235E, B235R | 2 | |
| 6 | 91 73 741 Pump connection B205E, B235E, B235R | 1 | |
| 7 | 92 151 823 Screw 2007-2010 • B205E, B235E, B235R | 7 | |
| 8 | 55 558 804 Pipe 2006-2010 • B205E, B235E, B235R | 1 | |
| 11 | 55 559 406 Pipe 2007-2010 • B205E, B235E, B235R | 1 | |
| 12 | 55 566 450 Pipe 2007-2010 • B205E, B235E, B235R | 1 | |
| 14 | 92 150 002 11 900 354 Screw B205E, B235E, B235R | 1 | |
| 15 | 79 72 466 Screw 1999- • B205E, B235E, B235R | 1 | |
| 15 | 11 900 353 Screw 1999- • B205E, B235E, B235R | 1 | |
| 16 | 55 566 033 Hexagon screw 2007-2010 • B205E, B235E, B235R | 3 | |
| 17 | Radiator hoseFuel system B205E, B235E, B235R | ||
| 18 | HoseCooling system B205E, B235E, B235R |
