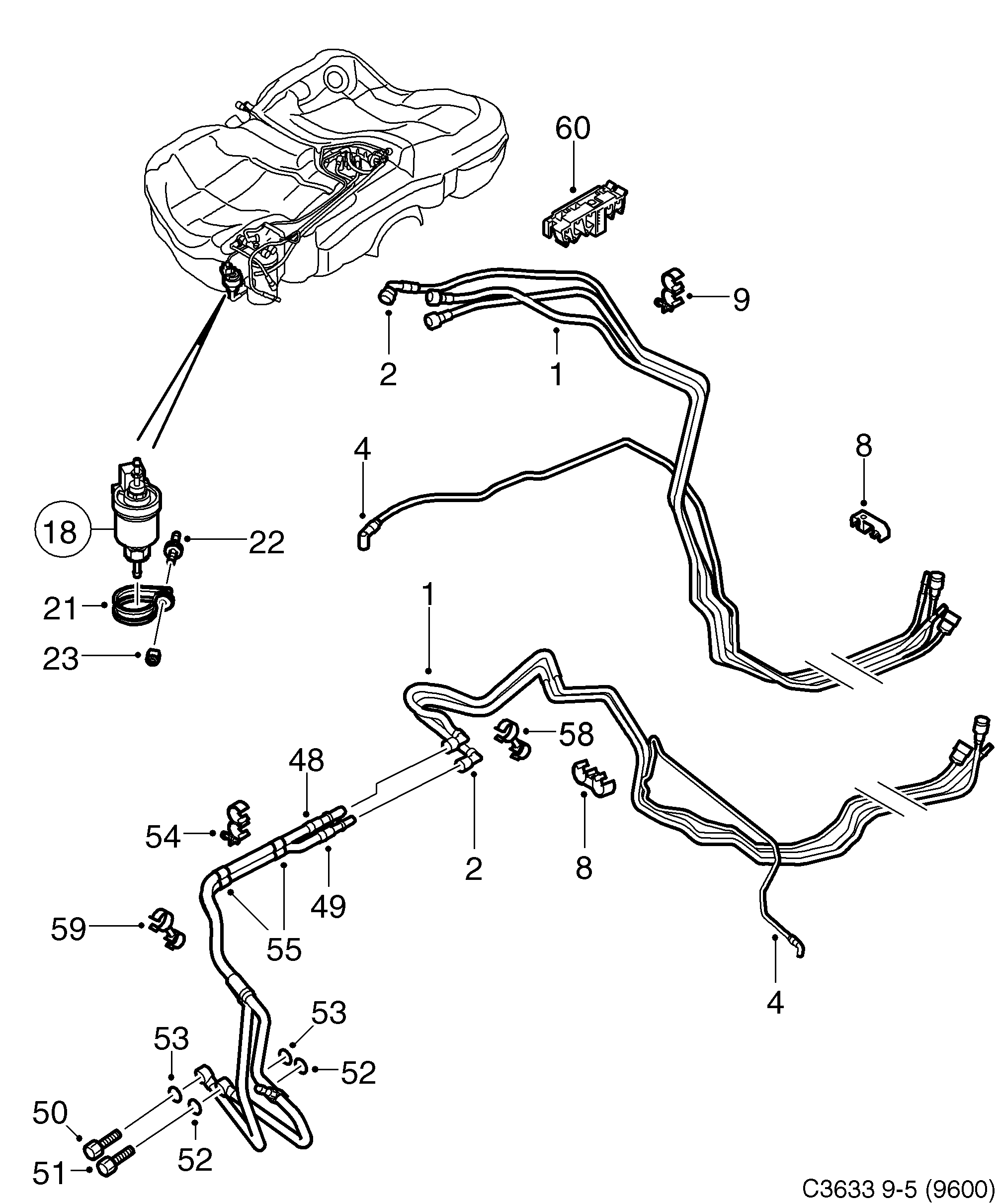

Find on Saabiste.net the complete and official interactive technical diagram for Fuel system on Saab 9-5 (9600) 2009. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Fuel system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Fuel system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (9600) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Fuel system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Fuel system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	12 758 557 Fuel pipe Z19DTH • Pressure connection	Fuel pipe	Z19DTH Pressure connection	1
2	12 758 567 Fuel pipe Z19DTH • Connection: Return to return...	Fuel pipe	Z19DTH Connection: Return to return...	1
4	55 37 555 Fuel pipe Z19DTH • Connection: Auxiliary heater	Fuel pipe	Z19DTH Connection: Auxiliary heater	1
4	53 37 472 Fuel pipe Z19DTH • Connection: Auxiliary heater	Fuel pipe	Z19DTH Connection: Auxiliary heater	1
8	51 25 778 Clamp Z19DTH	Clamp	Z19DTH	1
9	48 99 837 Clamp Z19DTH	Clamp	Z19DTH	1
10	53 23 761 Clamp Z19DTH	Clamp	Z19DTH	1
18	12 759 723 Fuel pump Z19DTH	Fuel pump	Z19DTH	1
	12 759 724 Fuel pipe Z19DTH	Fuel pipe	Z19DTH	1
21	47 27 764 Hose clamp Z19DTH	Hose clamp	Z19DTH	1
22	42 35 768 92 81 374 Rubber spacer Z19DTH	Rubber spacer	Z19DTH	1
23	92 150 133 11 900 451 Nut Z19DTH	Nut	Z19DTH	2
48	12 759 967 Hose Z19DTH	Hose	Z19DTH	1
49	53 29 461 Fuel pipe Z19DTH	Fuel pipe	Z19DTH	1
50	48 98 987 Banjo bolt Z19DTH	Banjo bolt	Z19DTH	1
51	43 74 203 12 794 638 Banjo bolt Z19DTH	Banjo bolt	Z19DTH	1
52	81 24 133 11 066 422 Gasket Z19DTH	Gasket	Z19DTH	2
53	81 24 141 92 150 435 Gasket Z19DTH	Gasket	Z19DTH	2
54	53 29 479 Hose clamp Z19DTH	Hose clamp	Z19DTH	2
55	11 088 301 Hose clamp Z19DTH	Hose clamp	Z19DTH	2
58	12 789 828 Clamp Z19DTH • For cars with parking...	Clamp	Z19DTH For cars with parking...	1
59	12 756 974 Clamp Z19DTH • For cars with parking...	Clamp	Z19DTH For cars with parking...	1

Pos.	Part No.	Description	Usage	Qty
1	12 758 557 Fuel pipe Z19DTH • Pressure connection	Fuel pipe	Z19DTH Pressure connection	1
2	12 758 567 Fuel pipe Z19DTH • Connection: Return to return...	Fuel pipe	Z19DTH Connection: Return to return...	1
4	55 37 555 Fuel pipe Z19DTH • Connection: Auxiliary heater	Fuel pipe	Z19DTH Connection: Auxiliary heater	1
4	53 37 472 Fuel pipe Z19DTH • Connection: Auxiliary heater	Fuel pipe	Z19DTH Connection: Auxiliary heater	1
8	51 25 778 Clamp Z19DTH	Clamp	Z19DTH	1
9	48 99 837 Clamp Z19DTH	Clamp	Z19DTH	1
10	53 23 761 Clamp Z19DTH	Clamp	Z19DTH	1
18	12 759 723 Fuel pump Z19DTH	Fuel pump	Z19DTH	1
	12 759 724 Fuel pipe Z19DTH	Fuel pipe	Z19DTH	1
21	47 27 764 Hose clamp Z19DTH	Hose clamp	Z19DTH	1
22	42 35 768 92 81 374 Rubber spacer Z19DTH	Rubber spacer	Z19DTH	1
23	92 150 133 11 900 451 Nut Z19DTH	Nut	Z19DTH	2
48	12 759 967 Hose Z19DTH	Hose	Z19DTH	1
49	53 29 461 Fuel pipe Z19DTH	Fuel pipe	Z19DTH	1
50	48 98 987 Banjo bolt Z19DTH	Banjo bolt	Z19DTH	1
51	43 74 203 12 794 638 Banjo bolt Z19DTH	Banjo bolt	Z19DTH	1
52	81 24 133 11 066 422 Gasket Z19DTH	Gasket	Z19DTH	2
53	81 24 141 92 150 435 Gasket Z19DTH	Gasket	Z19DTH	2
54	53 29 479 Hose clamp Z19DTH	Hose clamp	Z19DTH	2
55	11 088 301 Hose clamp Z19DTH	Hose clamp	Z19DTH	2
58	12 789 828 Clamp Z19DTH • For cars with parking...	Clamp	Z19DTH For cars with parking...	1
59	12 756 974 Clamp Z19DTH • For cars with parking...	Clamp	Z19DTH For cars with parking...	1
