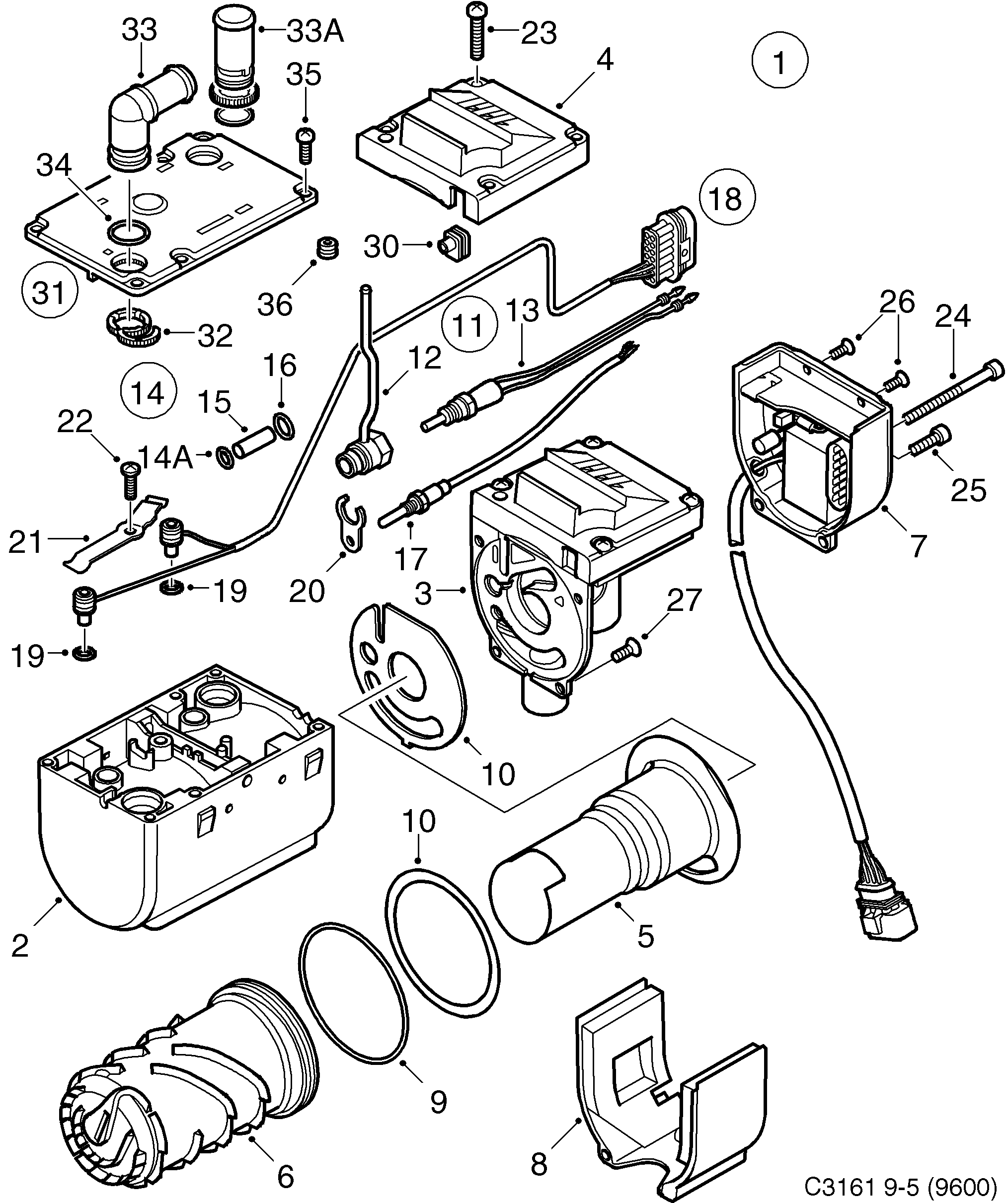

966: Engine - Cooling system - Auxiliary heater - Heater unit
(2006 - 2010 | Z19DTH) | For 9-5 (9600) (2009)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 53 22 821 Heater unit LHD • Z19DTH | 1 | |
| 1 | 12 756 721 Heater unit LHD • Z19DTH | 1 | |
| 2 | 54 60 019 Cover Z19DTH | 1 | |
| 3 | 54 60 076 Fan Z19DTH | 1 | |
| 4 | 93 173 013 Cover 2007-2010 • Z19DTH | 1 | |
| 5 | 93 173 002 Burner 2007-2010 • Z19DTH | 1 | |
| 6 | 93 173 001 Heat exchanger 2007-2010 • Z19DTH | 1 | |
| 7 | 54 60 027 Control unit Z19DTH | 1 | |
| 8 | 93 171 128 Cover 2007-2010 • Z19DTH | 1 | |
| 9 | 49 67 139 90 541 155 O-ring Z19DTH | 1 | |
| 10 | 54 63 294 93 173 004 Gasket Z19DTH | 1 | |
| 11 | 54 60 068 Glow plug Z19DTH | 1 | |
| 12 | 54 62 189 Fuel connection Z19DTH | 1 | |
| 13 | 54 61 603 Glow plug Z19DTH | 1 | |
| 14 | 93 174 508 O-ring Z19DTH | 1 | |
| 14A | 54 62 213 O-ring Z19DTH • Ø 9,25MM | 1 | |
| 15 | 54 62 197 Fuel connection Z19DTH | 1 | |
| 16 | 54 62 205 O-ring Z19DTH • Ø 11MM | 1 | |
| 17 | 51 95 144 90 544 230 Flame indicator Z19DTH | 1 | |
| 18 | 54 60 050 93 178 431 Cable harness Z19DTH | 1 | |
| 19 | 49 67 170 93 173 067 O-ring Z19DTH | 2 | |
| 20 | 54 60 092 93 173 006 Brace Z19DTH | 1 | |
| 21 | 93 173 066 Bracket 2007-2010 • Z19DTH | 1 | |
| 22 | 93 173 060 Screw 2007-2010 • Z19DTH | 1 | |
| 23 | 93 173 065 Screw 2007-2010 • Z19DTH | 4 | |
| 24 | 93 173 062 Screw 2007-2010 • Z19DTH | 1 | |
| 25 | 93 173 064 Screw 2007-2010 • Z19DTH | 1 | |
| 26 | 93 173 063 Screw 2007-2010 • Z19DTH | 2 | |
| 27 | 93 173 061 Screw 2007-2010 • Z19DTH | 3 | |
| 30 | 54 60 159 93 173 068 Sleeve Z19DTH | 1 | |
| 31 | 54 60 100 93 173 010 Cover Z19DTH | 1 | |
| 32 | 93 173 072 O-ring kit 2007-2010 • Z19DTH | 2 | |
| 33 | 93 173 069 Nipple 2007-2010 • Z19DTH | 2 | |
| 33A | 93 173 070 Nipple Z19DTH | 1 | |
| 34 | 54 60 134 O-ring Z19DTH | 2 | |
| 35 | 54 61 595 Screw Z19DTH | 4 | |
| 36 | 93 173 071 Fuel connection 2007-2010 • Z19DTH | 1 |
